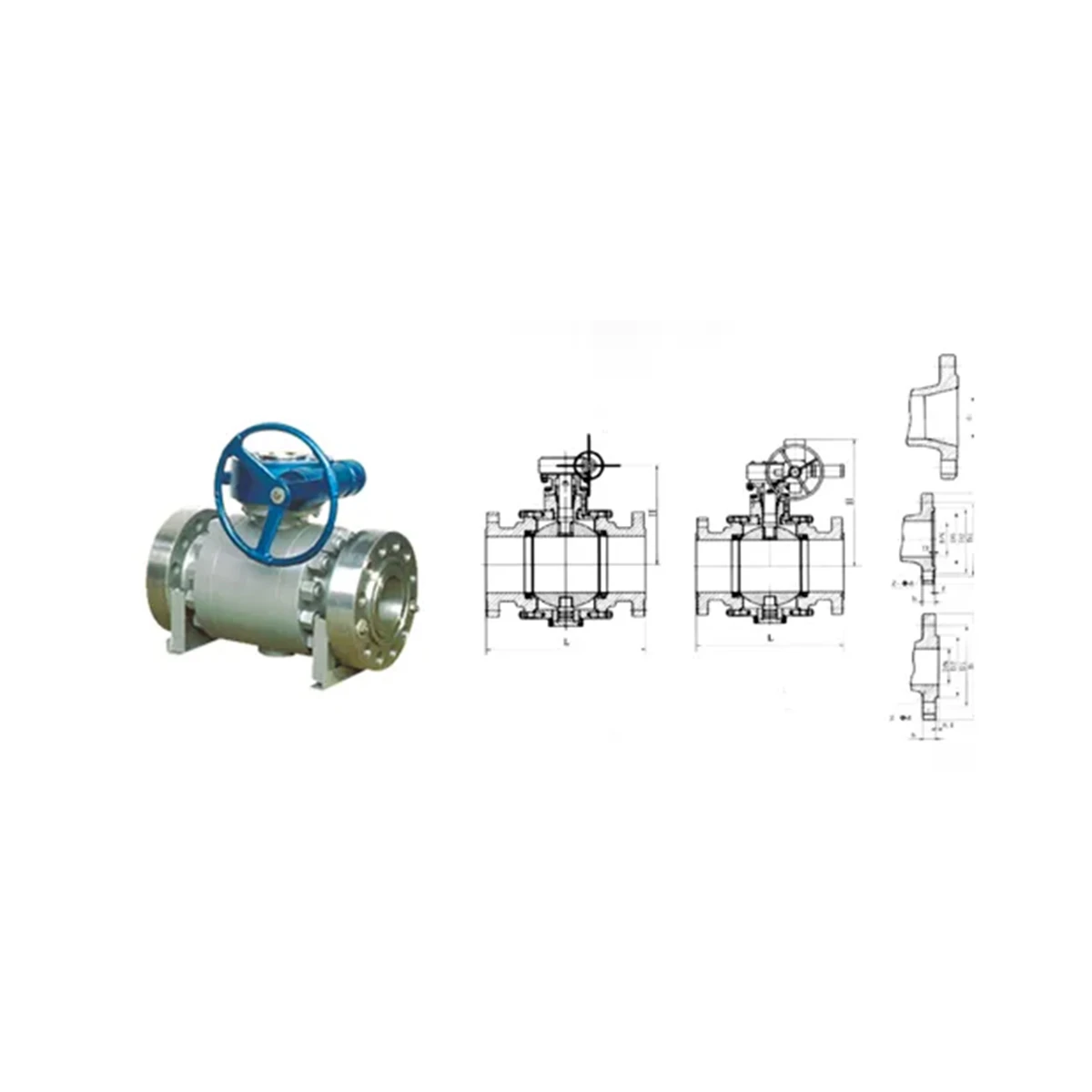

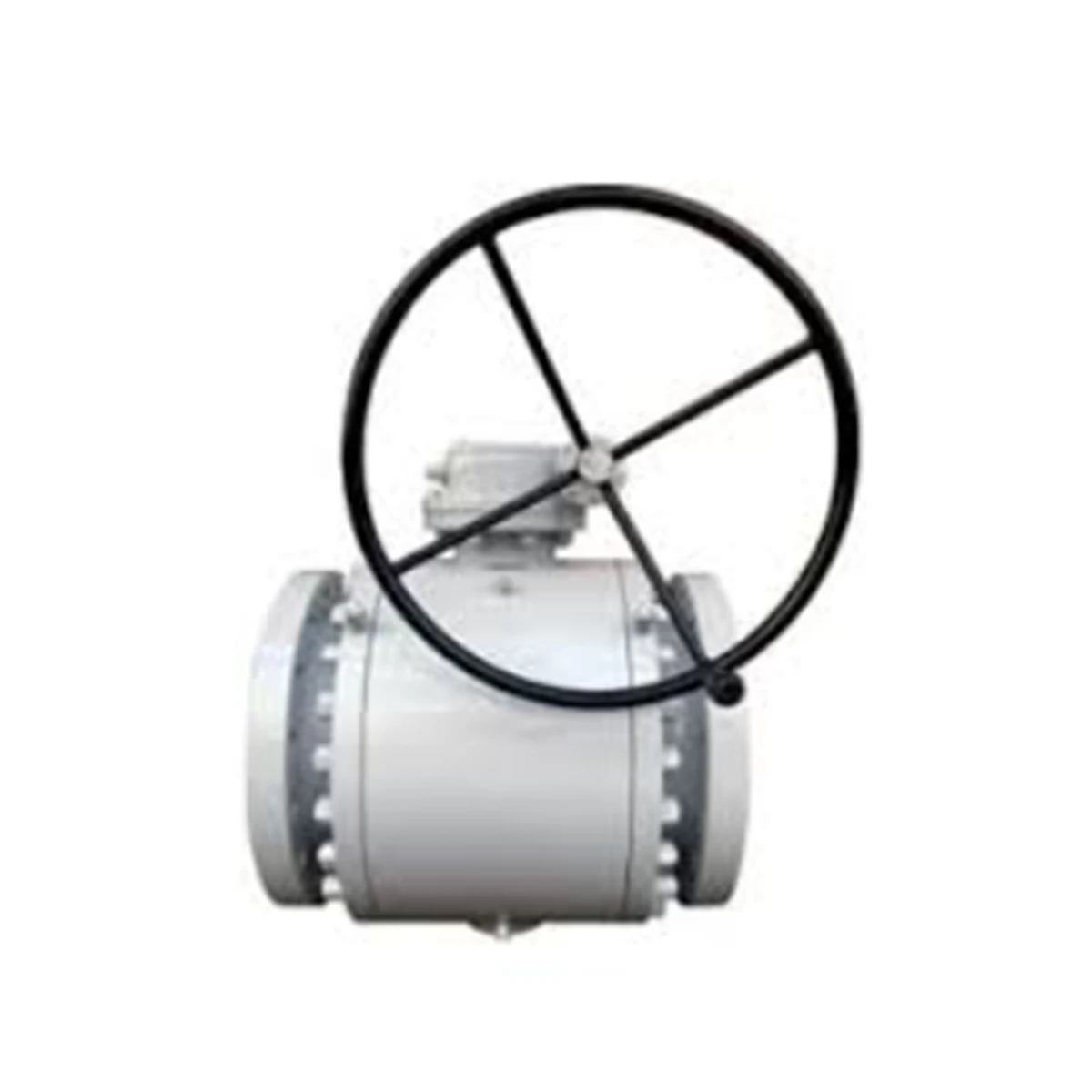

American Standard Forged Steel Ball Valve
The American Standard Forged Steel Ball Valve is manufactured according to API and ASME standards for critical industrial applications. Its forged steel body provides exceptional strength and pressure resistance, while precision-machined ball and seat assemblies ensure bubble-tight sealing. Suitable for oil, gas, steam, chemical, and high-temperature service conditions.
American Standard Forged Steel Ball Valve
The American Standard Forged Steel Ball Valve is designed for demanding applications requiring reliable flow isolation under high pressure and high temperature conditions. Constructed from premium forged steel materials, the valve offers superior mechanical strength, excellent sealing integrity, and long operational life.
Available in floating ball and trunnion-mounted designs, the valve complies with API 6D, API 608, and ASME B16.34 standards. It can be equipped with manual, pneumatic, electric, or gear operators to meet various process control requirements.
Our American Standard Forged Steel Ball Valves are manufactured and tested according to international standards:
American Standard Forged Steel Ball Valve
| Parameter | Specification |
|---|---|
| Product Name | American Standard Forged Steel Ball Valve |
| Valve Type | Floating Ball Valve / Trunnion Ball Valve |
| Nominal Size | DN15 – DN1200 |
| Pressure Rating | PN16 – PN420 |
| ANSI Class | Class 150 – Class 2500 |
| Body Material | A105, F304, F316, Duplex, Super Duplex |
| Ball Material | SS304, SS316, Chrome-Plated, Inconel |
| Seat Material | PTFE, RPTFE, PEEK, Metal Seat |
| Connection Type | NPT, SW, BW, RF, RTJ |
| Operation | Manual, Gear, Pneumatic, Electric |
| Temperature Range | -196°C to +550°C |
| Leakage Standard | API 598 / ISO 5208 |
| Design Standard | API 6D, API 608, ASME B16.34 |
| Applicable Media | Oil, Gas, Steam, Chemicals, LNG |
American Standard Forged Steel Ball Valve
Used in upstream, midstream, and downstream pipeline systems, storage terminals, and compressor stations.
Suitable for hydrocarbon processing, chemical transportation, and refinery process control.
Applied in steam systems, boiler auxiliary pipelines, and cooling water circuits.
Designed for liquefied natural gas storage, transportation, and cryogenic processing systems.
Handles corrosive chemicals, solvents, acids, and specialty fluids.
Provides reliable shutoff and isolation for critical industrial process pipelines.
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
