American standard forged steel fixed ball valve
The American Standard Forged Steel Fixed Ball Valve is a high-performance industrial valve designed according to American standards and widely used in high-pressure, high-temperature, and critical pipeline applications. It adopts a forged steel body structure and trunnion-mounted fixed ball design, providing excellent mechanical strength, reliable sealing performance, and long service life.
Compared with conventional cast valves, the forged steel construction offers superior pressure resistance, improved material integrity, and enhanced reliability under severe operating conditions. The fixed ball structure reduces operating torque and ensures stable operation, especially for large-diameter and high-pressure pipeline systems.
The valve is suitable for oil, gas, petrochemical, power generation, and industrial process applications where safety, durability, and precise shut-off performance are essential.

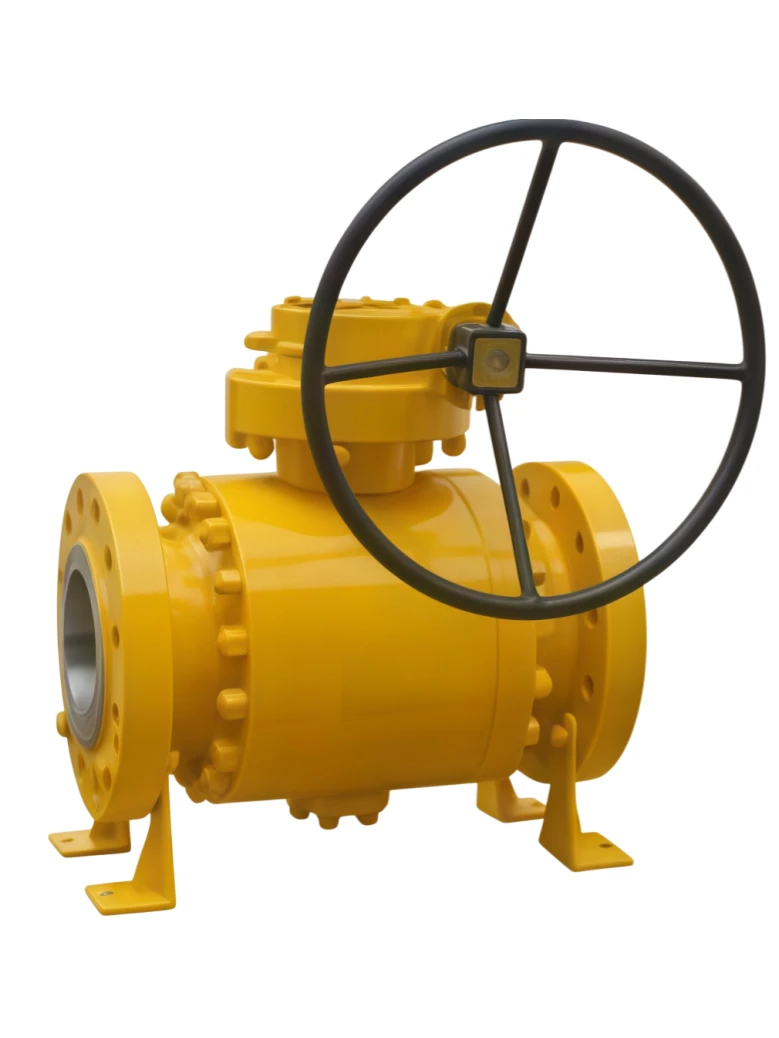

American standard forged steel fixed ball valve
We provide professional OEM/ODM customization services to meet different industrial project requirements.
Available forged materials:
Customized sealing materials:
Our American Standard Forged Steel Fixed Ball Valves are manufactured under strict quality control systems and comply with international valve standards.
Available certifications include:
Parameter Specifications
| Parameter | Specification |
|---|---|
| Product Name | American Standard Forged Steel Fixed Ball Valve |
| Valve Type | Forged Steel Trunnion Mounted Fixed Ball Valve |
| Design Standard | API 6D / ASME B16.34 |
| Operation Method | Manual / Pneumatic / Electric / Hydraulic |
| Nominal Size | 1/2"–48" (DN15–DN1200) |
| Pressure Class | ANSI Class 150–2500 |
| Working Pressure | Up to 42 MPa |
| Working Temperature | -196℃ to +450℃ (Depending on Materials) |
| Applicable Media | Natural Gas, Oil, Steam, Chemical Fluids, Hydrocarbon Media |
| Body Material | Forged Carbon Steel, Stainless Steel, Alloy Steel |
| Forged Material Grades | A105, LF2, F304, F316, Customized Materials |
| Ball Material | Stainless Steel / Alloy Steel |
| Seat Material | PTFE, RPTFE, PEEK, Metal Seat |
| Valve Structure | Fixed Ball / Trunnion Mounted |
| Bore Type | Full Bore / Reduced Bore |
| Connection Type | Flanged / Butt Welded |
| Flange Standard | ASME B16.5 / B16.47 |
| Face-to-Face Standard | ASME B16.10 |
| Stem Design | Anti-Blowout Stem |
| Sealing Design | Double Piston Effect / Single Piston Effect |
| Leakage Standard | API 6D / API 598 |
| Fire Safe Design | API 607 / API 6FA Available |
| Anti-Static Design | Standard |
| Double Block & Bleed | Available |
| Cavity Pressure Relief | Optional |
| Actuator Compatibility | Pneumatic / Electric / Hydraulic |
| Inspection Standard | API, ASME, ISO Standards |
| Service Life | Long Cycle Operation Design |
Industry Applications
The American Standard Forged Steel Fixed Ball Valve is widely applied in industries requiring high reliability, strong pressure resistance, and safe pipeline isolation.
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
