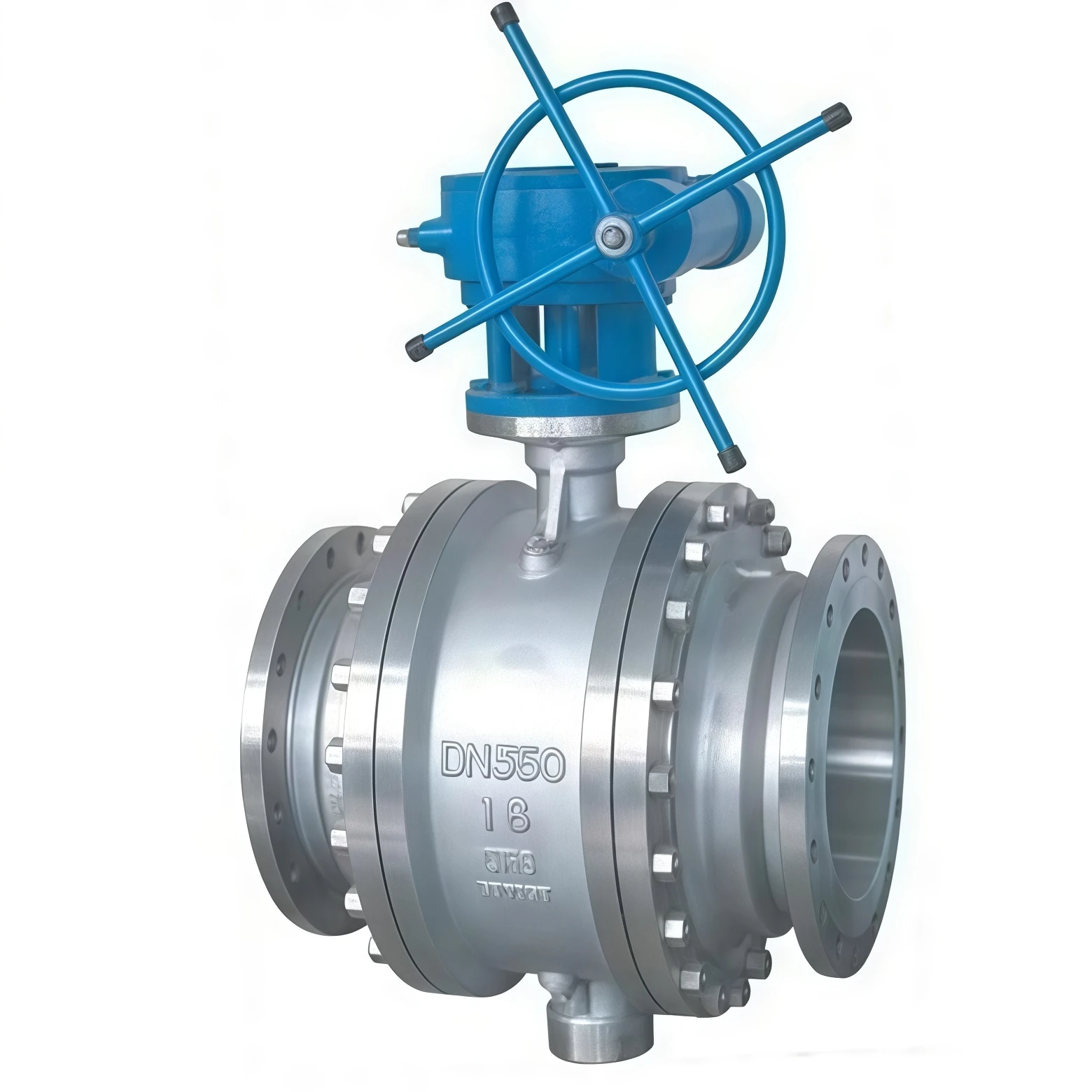

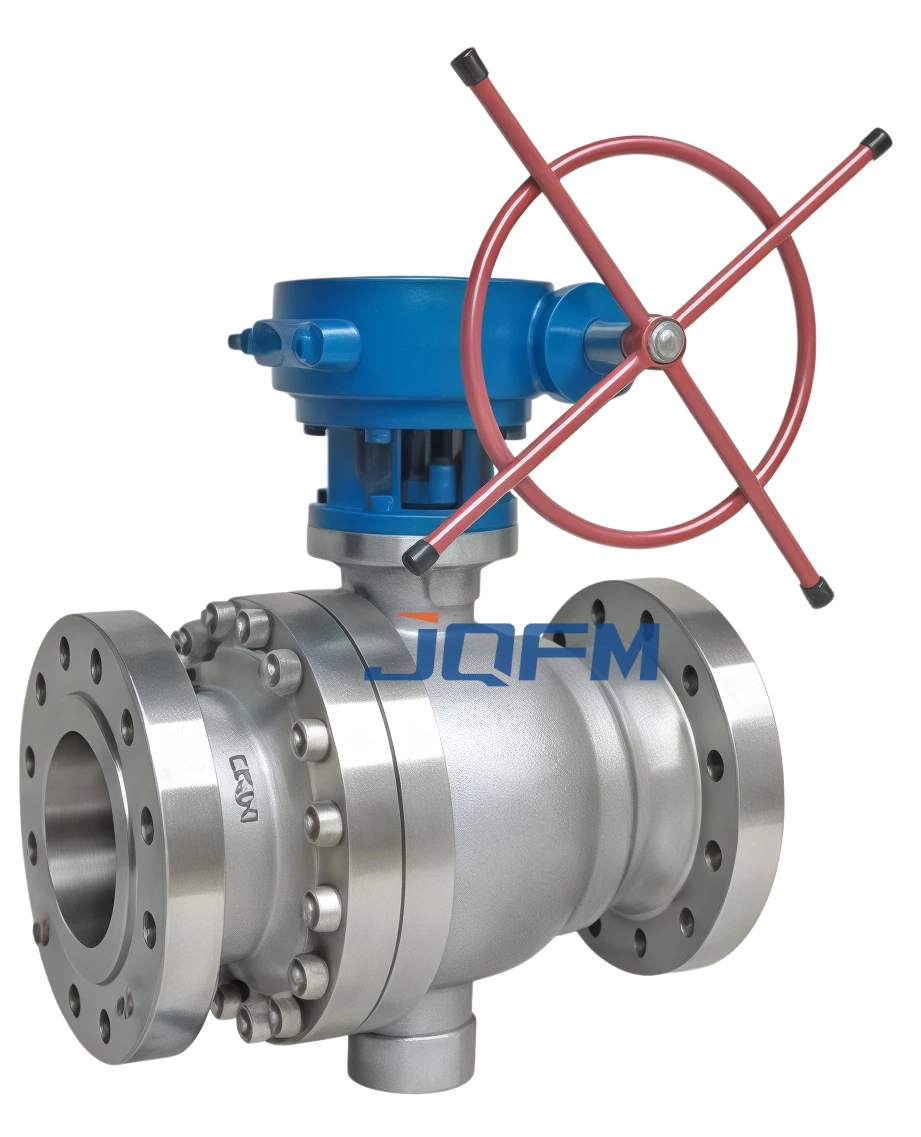

API Fixed Ball Valve
The API Fixed Ball Valve is designed for high-pressure and high-temperature applications in oil, gas, and petrochemical industries. Its trunnion-mounted ball reduces seat wear, enables bubble-tight sealing, and lowers operating torque. Robust materials, fire-safe options, and customizable configurations provide dependable service in demanding pipelines and process systems.
API Fixed Ball Valve
API Fixed Ball Valves are engineered to provide reliable isolation, precise flow control, and long-term operational safety in high-pressure pipelines. The fixed/trunnion-mounted ball design minimizes seat wear, ensures low operating torque, and maintains tight shutoff under extreme conditions. Manufactured from high-quality carbon steel, stainless steel, alloy steel, and duplex materials, the valve is suitable for oil, gas, steam, and chemical media.
The valve integrates easily with gear operators or electric actuators, supporting automation in industrial pipelines. Fire-safe, anti-static, and DBB (Double Block & Bleed) configurations are available, meeting the stringent requirements of API 6D, API 608, and international standards.
API Fixed Ball Valve
| Parameter | Specification |
|---|---|
| Product Name | API Fixed Ball Valve |
| Valve Type | Trunnion-Mounted Ball Valve |
| Nominal Size | DN50 – DN1400 |
| Pressure Rating | PN16 – PN420 |
| ANSI Class | Class 150 – Class 2500 |
| Body Material | Carbon Steel, Stainless Steel, Alloy Steel, Duplex |
| Ball Material | SS304, SS316, Chrome-Plated, Nickel Alloy |
| Seat Material | PTFE, RPTFE, PEEK, Metal Seat |
| Connection Type | Flanged, Butt Weld, RTJ |
| Operation | Manual / Gear / Electric Actuated |
| Temperature Range | -196°C to +550°C |
| Leakage Standard | API 598 / ISO 5208 |
| Design Standard | API 6D, API 608, ASME B16.34 |
| Applicable Media | Oil, Gas, Steam, Chemicals, Industrial Fluids |
API Fixed Ball Valve
Pipeline isolation, metering stations, and compressor stations.
Hydrocarbon, chemical, and solvent process control.
Steam, cooling water, and auxiliary lines.
Cryogenic and liquefied gas storage pipelines.
Slurry, abrasive fluid handling, and process systems.
Municipal water, industrial water treatment, and chemical fluid transport.
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
