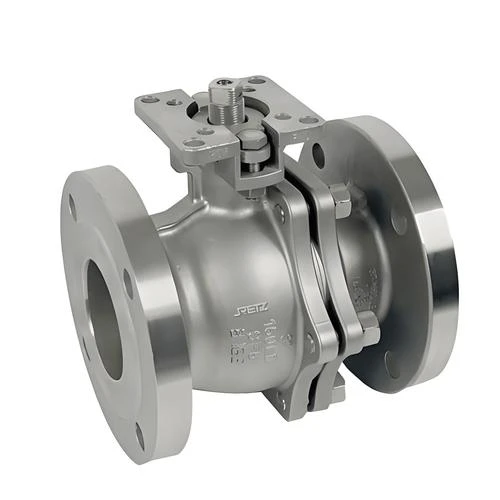

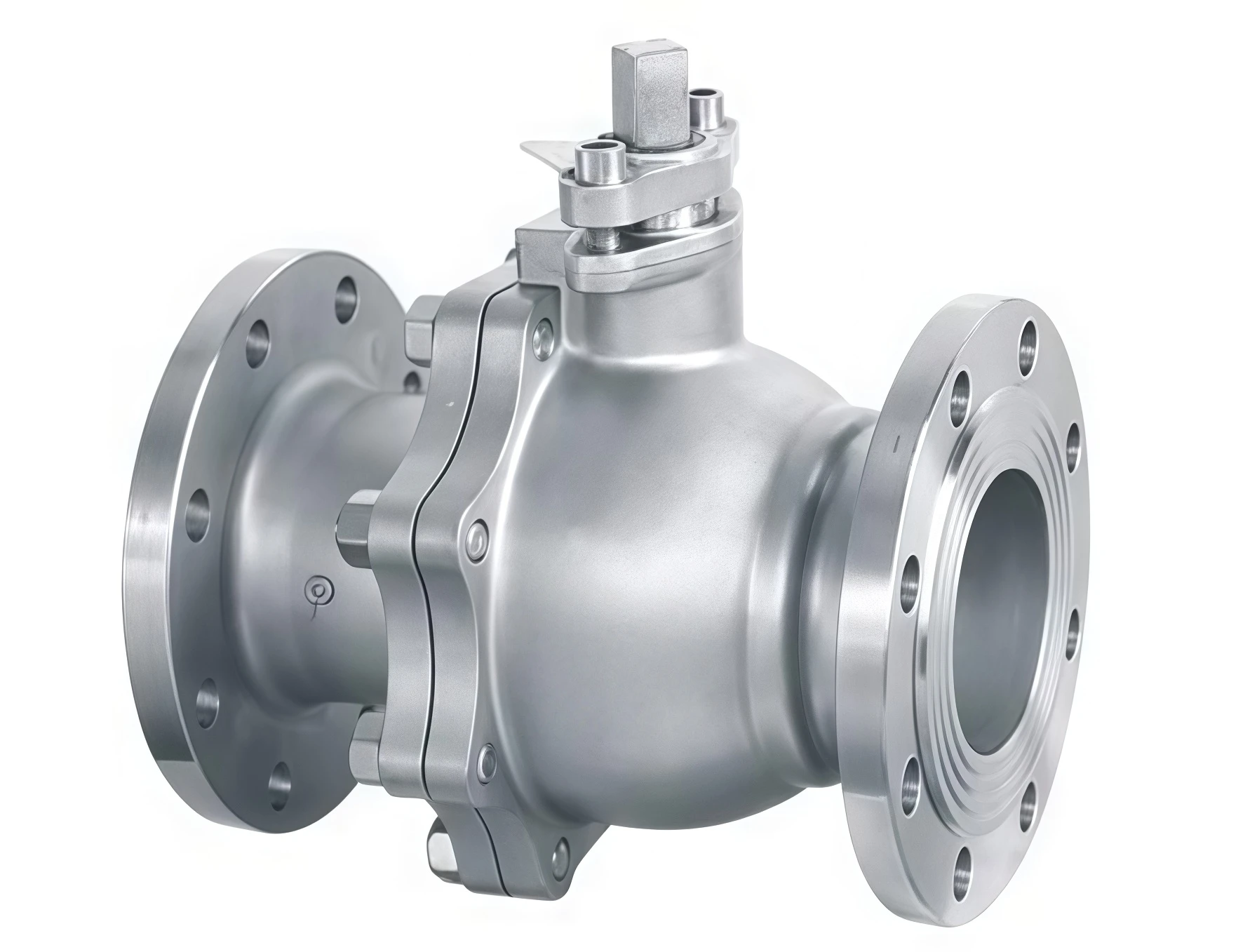

API Floating Ball Valve
The API Floating Ball Valve is designed in accordance with API standards and features a floating ball structure that utilizes line pressure to enhance sealing performance. Offering low torque operation, excellent leak-tight shut-off, corrosion resistance, and long service life, it is ideal for oil, gas, petrochemical, and industrial applications.
API Floating Ball Valve
The API Floating Ball Valve is a quarter-turn valve engineered to provide dependable flow isolation and tight shut-off in industrial piping systems. The floating ball design allows the ball to move slightly under pressure, creating a positive seal against the downstream seat for superior leakage control.
Manufactured according to API 6D, API 608, and related international standards, the valve delivers exceptional performance under high-pressure and demanding operating conditions. Available in carbon steel, stainless steel, alloy steel, and special materials, it is widely used in oil & gas, petrochemical, power generation, chemical processing, and pipeline transmission systems.
As a professional industrial valve manufacturer, we provide complete OEM and ODM solutions for global customers.
Our API Floating Ball Valves are manufactured under strict quality control systems and comply with international standards:
API Floating Ball Valve
| Parameter | Specification |
|---|---|
| Product Name | API Floating Ball Valve |
| Valve Type | Floating Ball Valve |
| Design Standard | API 6D / API 608 |
| Size Range | DN15 – DN300 (1/2" – 12") |
| Pressure Rating | Class 150 – Class 1500 |
| Body Material | WCB, CF8, CF8M, Duplex SS, Alloy Steel |
| Ball Material | Stainless Steel |
| Seat Material | PTFE, RPTFE, PEEK, Metal Seat |
| Stem Material | Stainless Steel |
| Connection Type | Flanged, Threaded, SW, BW |
| Bore Type | Full Port / Reduced Port |
| Operation | Lever, Gear, Pneumatic, Electric |
| Operating Temperature | -196°C to +550°C |
| Applicable Medium | Oil, Gas, Water, Steam, Chemicals |
| Fire Safe Design | API 607 |
| Leakage Class | ANSI/FCI 70-2 Class VI |
API Floating Ball Valve
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
