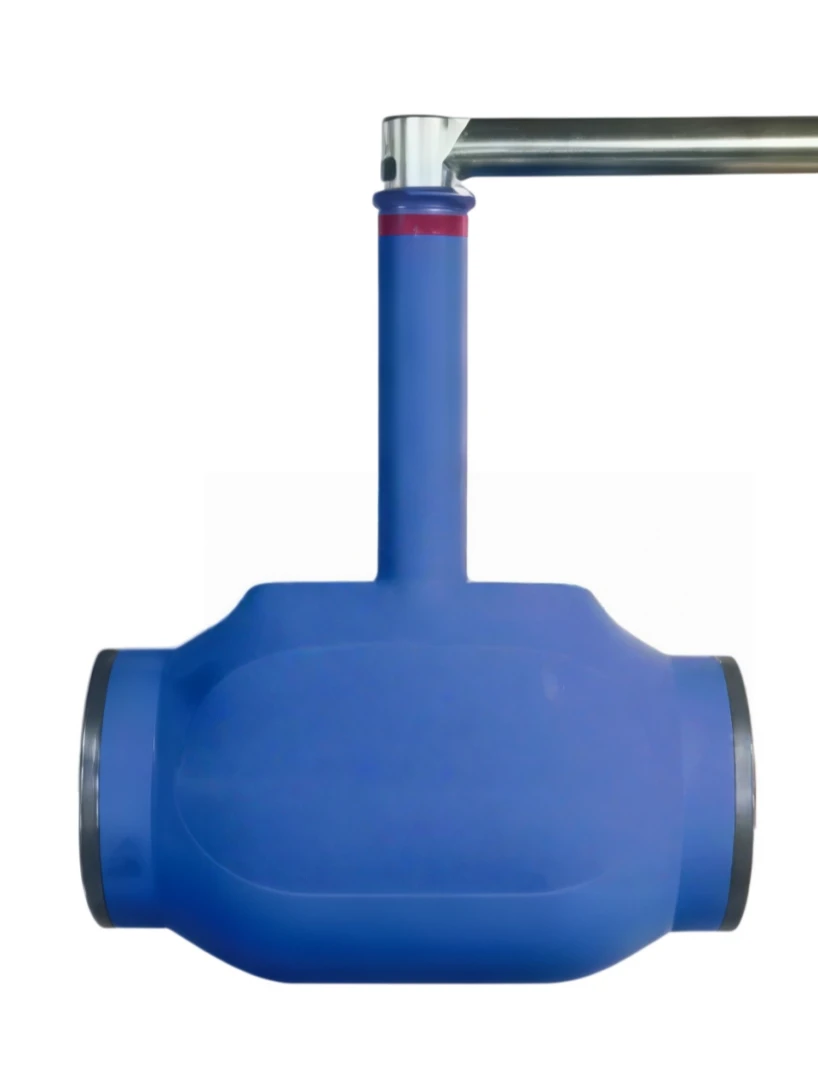

Buried type heat ball valve (short form)
The Buried Type Heat Ball Valve (Short Form) is a compact and reliable valve solution specially designed for underground heating pipeline systems. Featuring a short structural design, excellent sealing performance, and high-temperature resistance, this valve is ideal for applications where installation space is limited and long-term underground operation is required.
Designed for thermal energy transmission systems, the valve provides efficient flow control, reliable shut-off, and excellent resistance to temperature fluctuations. Its compact buried structure reduces installation space requirements while maintaining strong mechanical performance and operational safety.
The valve is manufactured with high-quality materials and advanced processing technology to ensure durability, corrosion resistance, and stable performance in underground environments. It is widely used in district heating networks, hot water systems, thermal pipelines, and industrial heating projects.
We provide professional OEM and customization services to meet various project requirements, including customized valve dimensions, materials, pressure ratings, connection types, stem lengths, sealing structures, coatings, and operating solutions.
All products are manufactured under strict quality management systems and comply with international valve industry standards. We provide complete certifications, including ISO 9001, API, CE, ASME, and other applicable valve industry certifications, ensuring reliable quality and global application compatibility.
Buried type heat ball valve (short form)
We provide comprehensive OEM/ODM solutions, including:
Parameter Specifications
| Parameter | Specification |
|---|---|
| Product Name | Buried Type Heat Ball Valve (Short Form) |
| Valve Type | Compact Underground Heating Ball Valve |
| Application | District Heating and Thermal Pipeline Systems |
| Valve Structure | Floating Ball / Trunnion Mounted Ball |
| Design Type | Full Port / Reduced Port |
| Nominal Size | DN25–DN600 / 1"–24" (Customized) |
| Pressure Rating | PN16–PN40 (Customized) |
| Body Material | Carbon Steel, Stainless Steel, Alloy Steel |
| Ball Material | Stainless Steel / Alloy Material |
| Stem Material | Stainless Steel |
| Seat Material | PTFE, Graphite, High Temperature Sealing Materials |
| Seal Material | PTFE, Graphite, FKM, Customized |
| Connection Type | Welded / Flanged / Customized |
| Working Medium | Hot Water, Thermal Oil, Heating Medium |
| Working Temperature | Up to 350°C (Depending on Material Selection) |
| Installation Type | Underground Buried Installation |
| Structure Length | Compact Short Structure |
| Operation Type | Manual / Gear Operator / Electric Actuator |
| Sealing Performance | Tight Shut-Off, Bidirectional Sealing |
| Leakage Standard | API 598 / ISO 5208 |
| Design Standard | API / ANSI / DIN / EN Standards Available |
| Corrosion Protection | Underground Anti-Corrosion Coating |
| Pressure Test | Shell Test & Seat Test According to Standards |
| Inspection Standard | International Valve Inspection Standards |
| Certification | ISO 9001, CE, API, Industry Certifications Available |
| OEM Service | Available |
| Customization Capability | Size, Material, Pressure, Stem Length, Coating, Actuator, Packaging |
Industry Applications
The Buried Type Heat Ball Valve (Short Form) is widely used in underground heating and thermal energy systems requiring compact installation and reliable operation.
✔ Compact short structure for space-saving installation
✔ Designed for underground heating pipeline systems
✔ Excellent high-temperature resistance
✔ Reliable sealing performance and low leakage risk
✔ Strong corrosion resistance for buried environments
✔ Low maintenance and long service life
✔ Flexible installation and operation options
✔ Professional OEM customization capability
✔ Manufactured according to international valve standards
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
