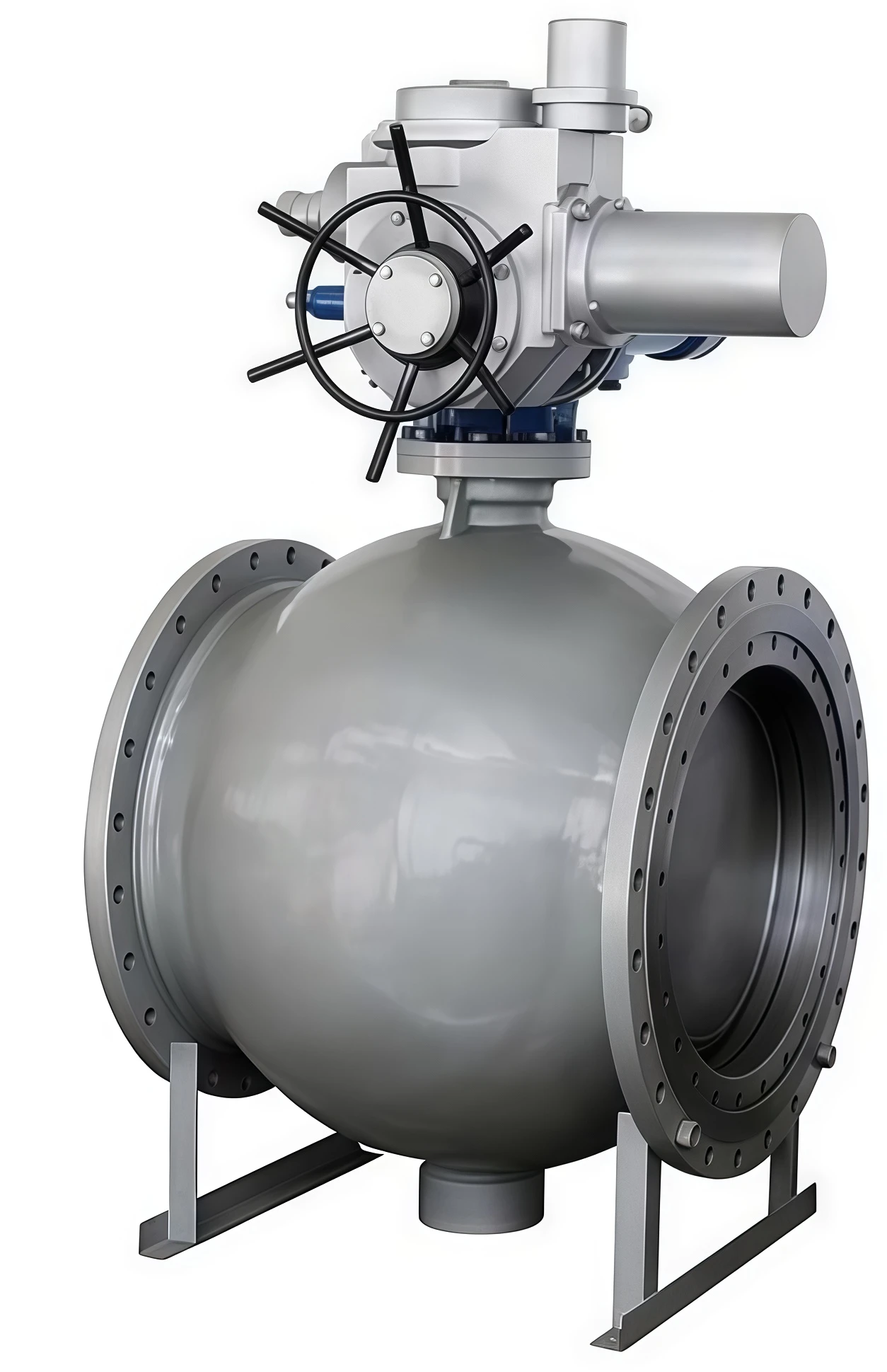

Electric eccentric hemispherical valve
The Electric Eccentric Hemispherical Valve integrates a high-performance electric actuator with an eccentric hemispherical sealing mechanism. Designed for automated process control, it offers excellent sealing performance, low operating torque, self-cleaning capability, and extended service life. Ideal for slurry, wastewater, pulp, ash, and particle-laden industrial media.
Electric eccentric hemispherical valve
The Electric Eccentric Hemispherical Valve is a high-performance automated control valve engineered for severe-service applications. Its unique eccentric hemispherical disc design minimizes friction between sealing surfaces during operation, reducing wear and significantly extending valve lifespan.
Combined with an intelligent electric actuator, the valve provides accurate positioning, remote operation, and reliable automated flow control. The self-cleaning sealing action ensures dependable performance in abrasive, viscous, fibrous, and solid-particle media. It is widely used in mining, metallurgy, power generation, wastewater treatment, pulp & paper, and chemical industries.
Our Electric Eccentric Hemispherical Valves are manufactured and tested according to international standards:
Electric eccentric hemispherical valve
| Parameter | Specification |
|---|---|
| Product Name | Electric Eccentric Hemispherical Valve |
| Valve Type | Electric Rotary Eccentric Hemispherical Valve |
| Nominal Size | DN50 – DN2000 |
| Pressure Rating | PN10 – PN100 |
| ANSI Class | Class 150 – Class 600 |
| Body Material | Carbon Steel, Stainless Steel, Duplex Steel |
| Hemisphere Material | Stainless Steel, Hard Chrome, Tungsten Carbide |
| Seat Material | Metal Seat, PTFE, Reinforced PTFE |
| Connection Type | Flanged, Wafer, Lug, BW |
| Actuator Type | Electric On/Off / Modulating |
| Control Signal | 4–20mA, HART, Modbus, Profibus |
| Protection Class | IP67 / IP68 |
| Temperature Range | -29°C to +425°C |
| Leakage Standard | API 598 / ISO 5208 |
| Design Standard | API 6D, ASME B16.34, DIN, GB |
| Applicable Media | Slurry, Ash, Pulp, Wastewater, Chemicals |
Electric eccentric hemispherical valve
Used for slurry transportation systems, tailings pipelines, and mineral processing operations requiring automated control.
Suitable for ash handling systems, flue gas desulfurization units, and cooling water circulation networks.
Provides reliable control for abrasive process media and high-solid-content fluids.
Applied in municipal sewage treatment plants and industrial wastewater facilities.
Ideal for pulp stock control, fiber suspensions, and automated paper production processes.
Handles corrosive, viscous, and particulate-containing chemicals with accurate flow control.
Integrated into DCS, PLC, and SCADA systems for intelligent process automation and remote operation.
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
