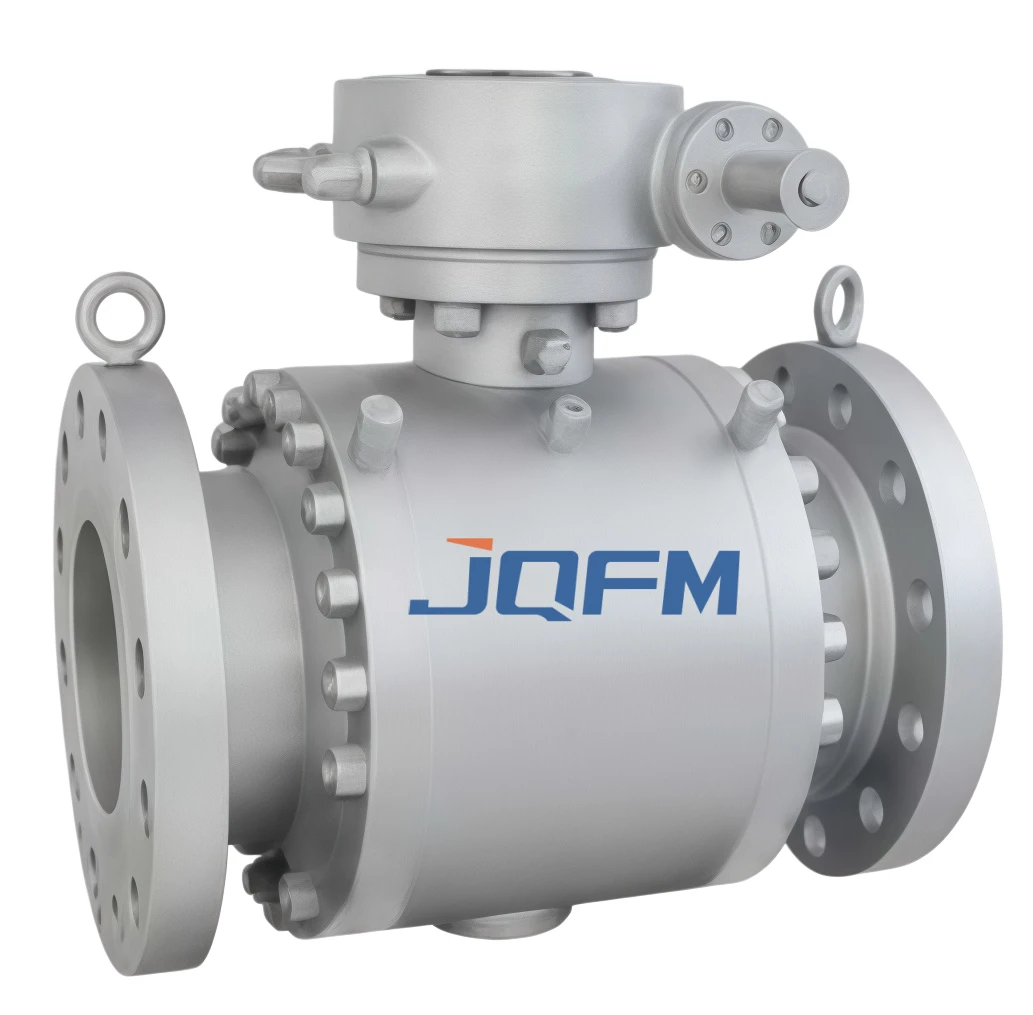

Forged steel ball valve
The Forged Steel Ball Valve is engineered for oil, gas, petrochemical, and industrial pipeline applications. Its forged body ensures superior strength, pressure resistance, and durability. Available in floating or trunnion-mounted configurations, it delivers tight shutoff, low operating torque, fire-safe options, and customizable sizes and materials for demanding environments.
Forged steel ball valve
Forged Steel Ball Valves are designed for high-pressure, high-temperature applications where reliability and durability are critical. The forged body provides superior mechanical strength and resistance to pipeline stresses. Floating and trunnion-mounted ball designs ensure low torque operation and bubble-tight sealing. The valve supports automation via gear, pneumatic, or electric actuators.
It is widely used in oil & gas, petrochemical, power generation, chemical processing, and industrial fluid control systems. Fire-safe and anti-static options, along with OEM customization, make it suitable for demanding applications worldwide.
Forged steel ball valve
| Parameter | Specification |
|---|---|
| Product Name | Forged Steel Ball Valve |
| Valve Type | Floating / Trunnion-Mounted Ball Valve |
| Nominal Size | DN15 – DN1200 |
| Pressure Rating | PN16 – PN420 |
| ANSI Class | Class 150 – Class 2500 |
| Body Material | Carbon Steel, Stainless Steel, Alloy Steel, Duplex |
| Ball Material | SS304, SS316, Chrome-Plated, Nickel Alloy |
| Seat Material | PTFE, RPTFE, PEEK, Metal Seat |
| Connection Type | Flanged, Butt Weld, Threaded |
| Operation | Manual / Gear / Electric / Pneumatic |
| Temperature Range | -196°C to +550°C |
| Leakage Standard | API 598 / ISO 5208 |
| Design Standard | API 6D, API 608, ASME B16.34 |
| Applicable Media | Oil, Gas, Steam, Chemicals, Industrial Fluids |
Forged steel ball valve
Pipeline isolation, compressor stations, refinery systems.
Hydrocarbon, solvent, and chemical process control.
Steam, water, and auxiliary pipelines.
Corrosive or abrasive media handling.
Cooling water, lubricants, and process pipelines.
Slurry, abrasive fluids, and industrial processes.
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
