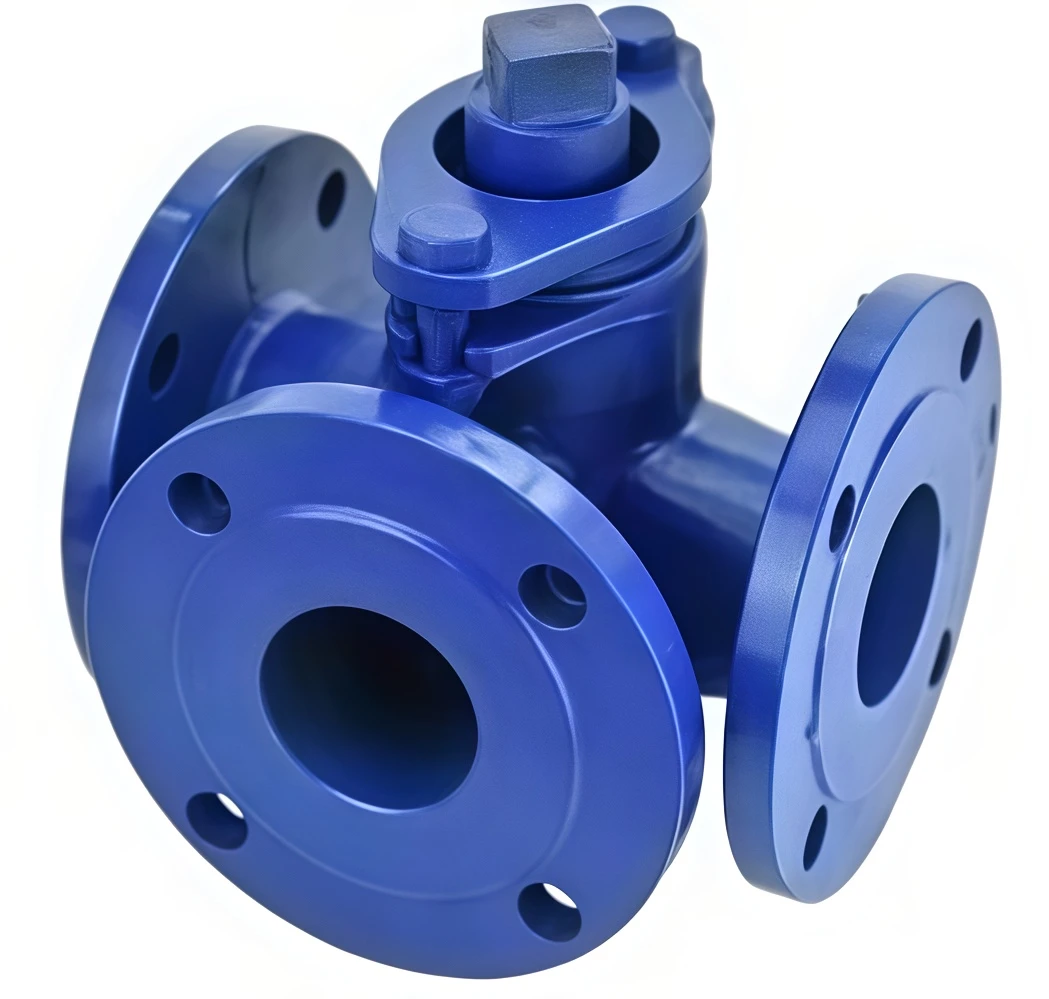

Four-way ball valve
The Four-Way Ball Valve is designed with four flow ports and a specially machined ball to control multiple flow paths within a single valve body. It simplifies piping systems by reducing the number of valves required while providing reliable sealing, low operating torque, and precise fluid routing for industrial applications.

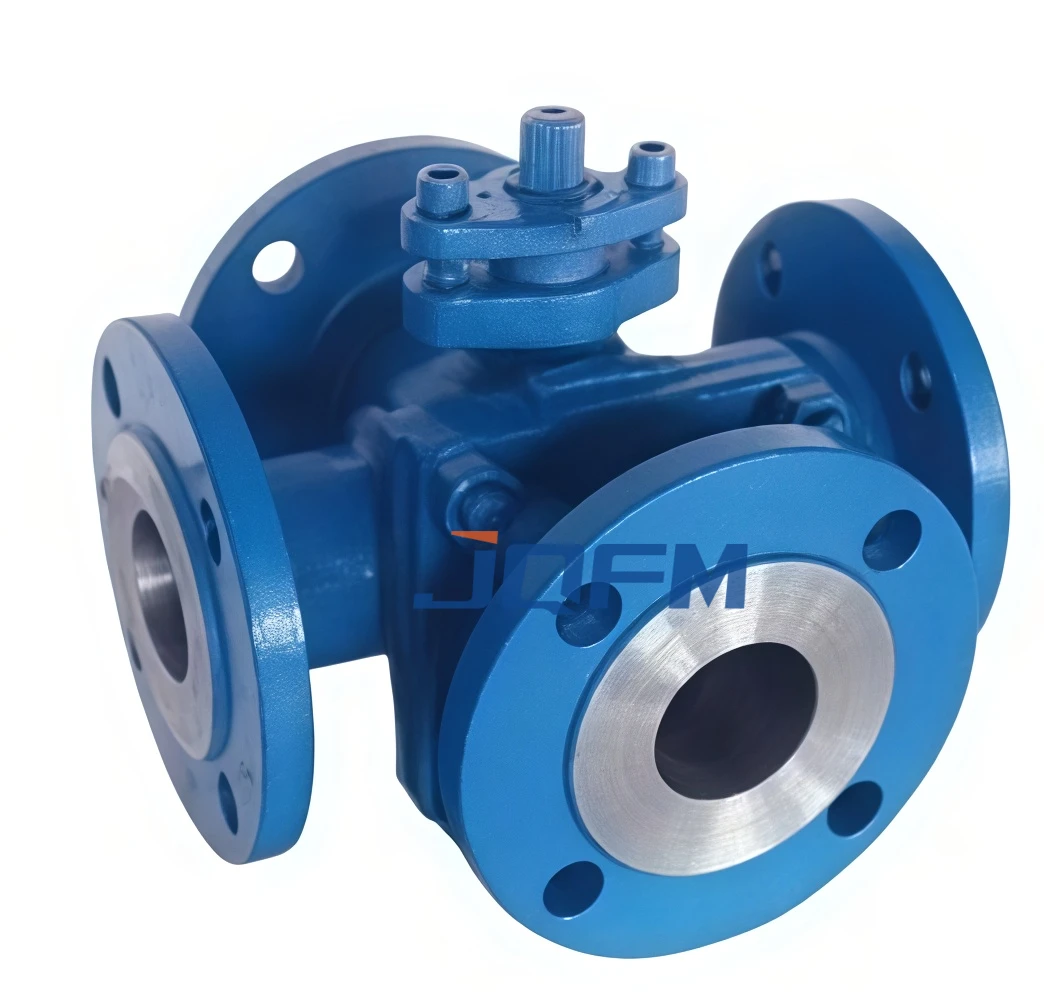

Four-way ball valve
The Four-Way Ball Valve is a multi-port flow control solution engineered to manage complex fluid routing, switching, mixing, and distribution processes. By integrating four ports into a single compact valve body, it reduces piping complexity, installation costs, and maintenance requirements.
Available in various flow patterns and port configurations, the valve can perform multiple flow-control functions that would otherwise require several conventional valves. Manufactured from high-quality carbon steel, stainless steel, duplex steel, and special alloys, it provides reliable operation in demanding industrial environments.
Our Four-Way Ball Valves are manufactured and tested according to international standards:
Four-way ball valve
| Parameter | Specification |
|---|---|
| Product Name | Four-Way Ball Valve |
| Valve Type | Multi-Port Ball Valve |
| Nominal Size | DN15 – DN600 |
| Pressure Rating | PN16 – PN160 |
| ANSI Class | Class 150 – Class 900 |
| Body Material | WCB, CF8, CF8M, Duplex Steel |
| Ball Material | SS304, SS316, Chrome-Plated |
| Seat Material | PTFE, RPTFE, PEEK, Metal Seat |
| Flow Configuration | X-Port, Cross-Port, Customized |
| Connection Type | Flanged, Threaded, SW, BW, Clamp |
| Operation | Manual, Pneumatic, Electric |
| Temperature Range | -196°C to +450°C |
| Leakage Standard | API 598 / ISO 5208 |
| Design Standard | API 608, API 6D, ASME B16.34 |
| Applicable Media | Water, Oil, Gas, Steam, Chemicals |
Four-way ball valve
Used for process flow switching, media distribution, and fluid mixing applications.
Suitable for multi-line flow control and product transfer systems.
Applied in water distribution, filtration, and circulation systems.
Ideal for heating, cooling, and thermal fluid routing applications.
Provides accurate and reliable flow path control for clean process systems.
Used for liquid transfer, ingredient routing, and automated production processes.
Integrated with electric or pneumatic actuators for intelligent process control systems.
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
