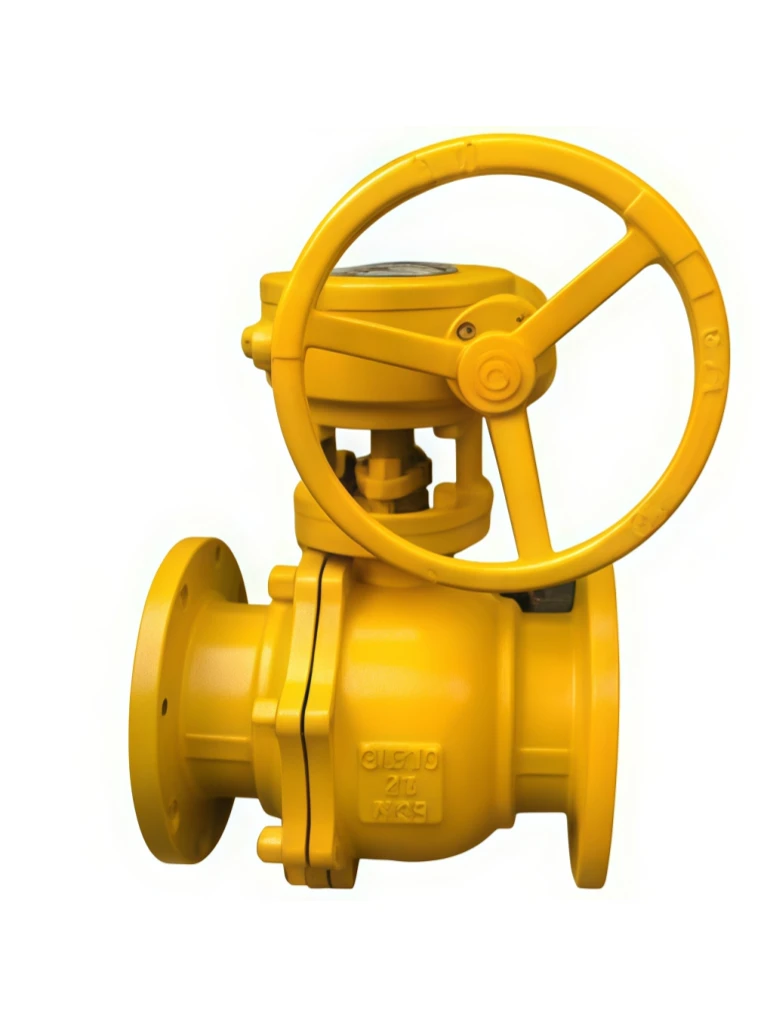

Gas fixed ball valve
The Gas Fixed Ball Valve is a high-performance fixed ball valve specially designed for gas transmission, distribution, and industrial gas control systems. It adopts a trunnion-mounted fixed ball structure, providing excellent stability, reliable sealing, and safe operation under high-pressure and large-diameter pipeline conditions.
Unlike floating ball valves, the fixed ball design uses upper and lower stem support to reduce operating torque and improve service life, making it suitable for high-pressure gas applications and frequent operation requirements.
The valve is manufactured with advanced machining technology and strict quality control to ensure superior sealing performance, corrosion resistance, and long-term reliability. It is widely used in natural gas pipelines, LNG systems, petrochemical plants, and energy industries.
Gas fixed ball valve
We provide professional OEM/ODM customization services for different gas pipeline and industrial requirements.
Available valve body materials:
Customized sealing solutions:
Our Gas Fixed Ball Valves are manufactured according to international valve standards and strict quality management systems.
Available certifications include:
Parameter Specifications
| Parameter | Specification |
|---|---|
| Product Name | Gas Fixed Ball Valve |
| Valve Type | Trunnion Mounted Fixed Ball Valve |
| Application | Gas Pipeline Isolation and Flow Control |
| Operation Method | Manual / Pneumatic / Electric / Hydraulic |
| Nominal Diameter | DN50–DN1200 (2"–48") |
| Pressure Rating | PN16–PN420 / Class 150–2500 |
| Working Pressure | Up to 42 MPa |
| Working Temperature | -196℃ to +350℃ (Depending on Materials) |
| Applicable Media | Natural Gas, LPG, LNG, Industrial Gas, Hydrocarbon Gas |
| Body Material | Carbon Steel, Stainless Steel, Duplex Steel, Alloy Steel |
| Ball Material | Stainless Steel / Customized Alloy |
| Seat Material | PTFE, RPTFE, PEEK, Metal Seat |
| Valve Structure | Fixed Ball / Trunnion Mounted |
| Bore Type | Full Bore / Reduced Bore |
| Connection Type | Flanged / Welded |
| Flange Standard | ANSI B16.5, ASME B16.47, DIN, JIS, GB/T |
| Welding Standard | ASME / API Standards |
| Stem Design | Anti-blowout Stem |
| Sealing Type | Double Piston Effect / Single Piston Effect |
| Leakage Standard | ISO 5208 / API 6D |
| Fire Safe Design | API 607 / API 6FA Available |
| Anti-static Design | Standard |
| Double Block & Bleed | Available |
| Cavity Pressure Relief | Automatic / External Relief Option |
| Actuator Compatibility | Pneumatic, Electric, Hydraulic |
| Installation Position | Horizontal / Vertical Installation |
| Inspection Standard | API 6D, ISO, EN Standards |
| Service Life | Long Cycle Operation Design |
Industry Applications
The Gas Fixed Ball Valve is widely used in critical gas systems requiring safe isolation, reliable shut-off, and long-term operation.
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
