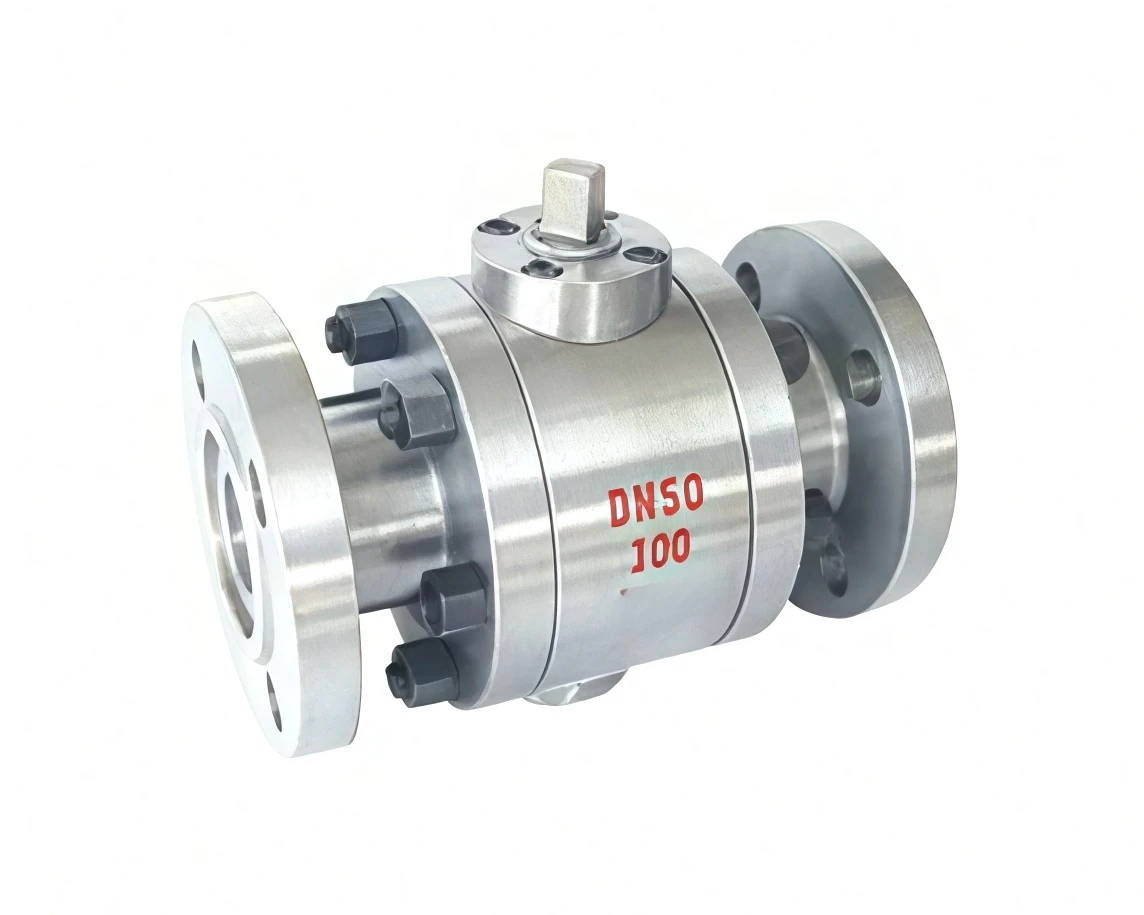

Hard seal ball valve
The Hard Seal Ball Valve utilizes a metal-to-metal sealing structure with precision-machined and hard-coated ball and seat surfaces. Designed for severe operating environments, it offers superior wear resistance, high-temperature capability, low leakage rates, and dependable shutoff performance for demanding industrial applications involving steam, slurry, and abrasive media.

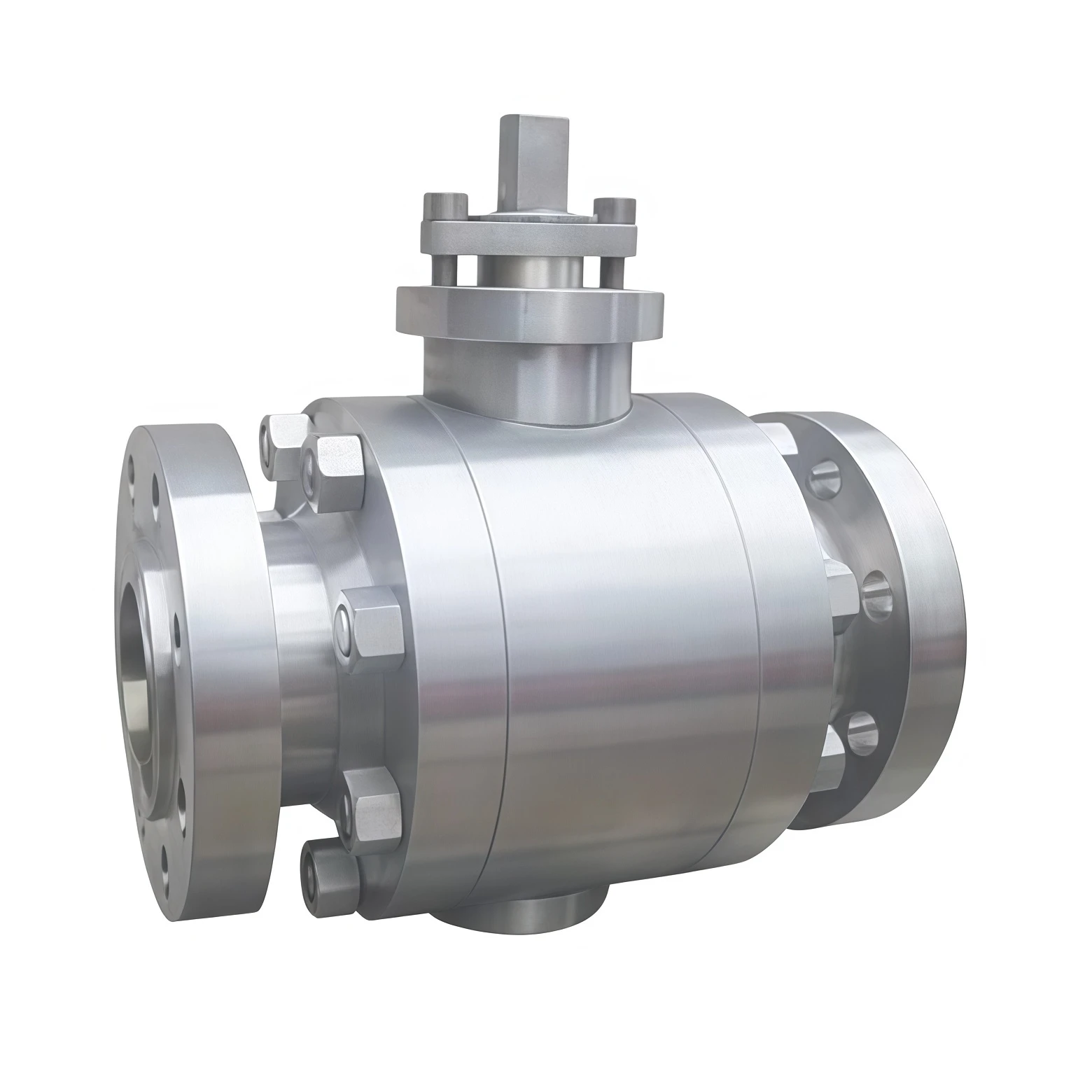

Hard seal ball valve
The Hard Seal Ball Valve is engineered for critical applications where conventional soft-seated valves cannot withstand extreme temperatures, pressures, or abrasive media. Its metal-seated design incorporates advanced hard-facing technologies such as Stellite, tungsten carbide, chromium carbide, or other wear-resistant coatings to ensure outstanding durability and sealing integrity.
Available in floating and trunnion-mounted configurations, the valve provides reliable operation in power plants, petrochemical facilities, mining operations, metallurgy, and chemical processing industries. The robust construction significantly extends service life while reducing maintenance costs.
Our Hard Seal Ball Valves are manufactured and tested according to international standards:
Hard seal ball valve
| Parameter | Specification |
|---|---|
| Product Name | Hard Seal Ball Valve |
| Valve Type | Metal Seated Ball Valve |
| Nominal Size | DN15 – DN1400 |
| Pressure Rating | PN16 – PN420 |
| ANSI Class | Class 150 – Class 2500 |
| Body Material | WCB, CF8, CF8M, Alloy Steel, Duplex Steel |
| Ball Material | Stainless Steel, Stellite, Tungsten Carbide |
| Seat Material | Metal Seat, Hard Alloy Seat |
| Connection Type | Flanged, BW, SW, RTJ |
| Operation | Manual, Gear, Pneumatic, Electric |
| Temperature Range | -196°C to +650°C |
| Leakage Standard | API 598 / ISO 5208 |
| Design Standard | API 6D, API 608, ASME B16.34 |
| Applicable Media | Steam, Slurry, Ash, Oil, Gas, Chemicals |
Hard seal ball valve
Used in high-temperature steam systems, boiler pipelines, and turbine auxiliary systems.
Suitable for hydrocarbon processing, catalytic cracking units, and severe chemical services.
Handles abrasive slurries, tailings, and mineral processing fluids.
Ideal for high-temperature gas, dust-laden media, and process control applications.
Provides reliable shutoff for high-pressure transmission and refining systems.
Suitable for corrosive, erosive, and particle-containing process media.
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
