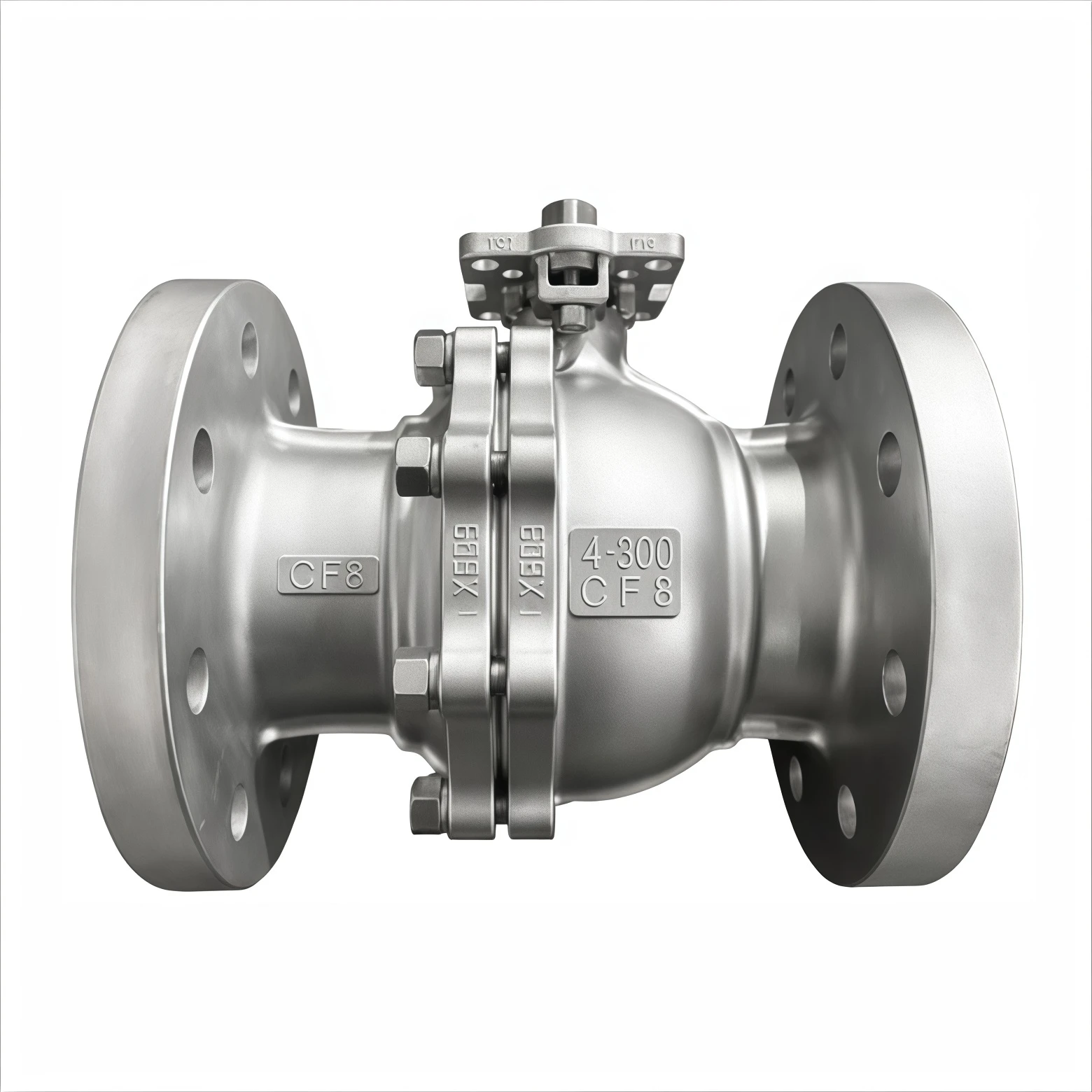

High platform ball valve
The High Platform Ball Valve is designed with an integrated ISO 5211 mounting platform, allowing direct installation of pneumatic or electric actuators without additional brackets. Featuring precision-machined ball and seat components, it ensures bubble-tight sealing, low operating torque, and reliable performance in demanding industrial applications.

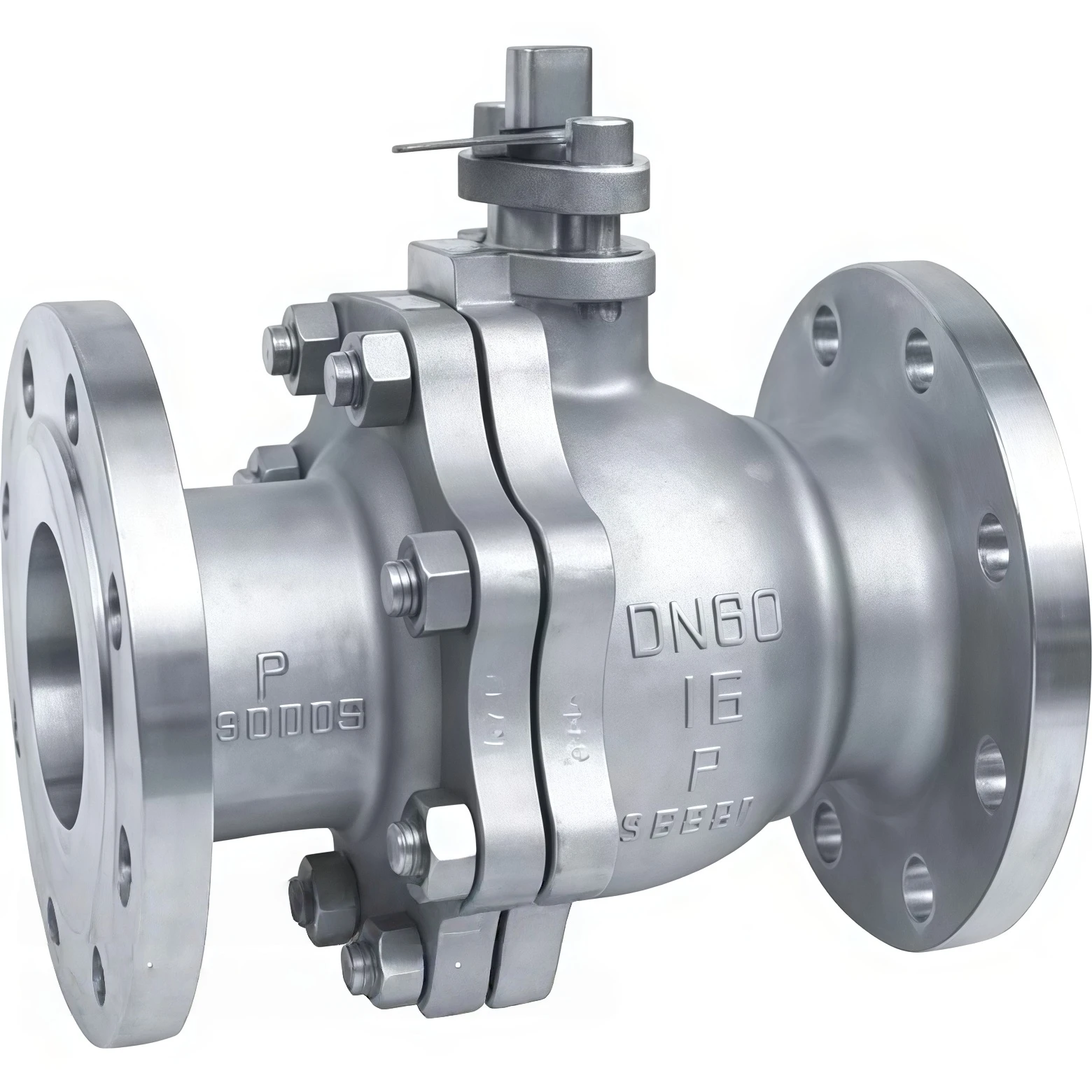

High platform ball valve
The High Platform Ball Valve is a quarter-turn shutoff valve engineered for automated and manual flow control systems. Its integral high mounting platform complies with ISO 5211 standards, enabling easy actuator installation and reducing assembly costs.
Manufactured from premium stainless steel, carbon steel, and special alloy materials, the valve offers excellent corrosion resistance, superior sealing performance, and extended service life. Suitable for liquids, gases, steam, and chemical media, it is widely used in industrial automation systems requiring efficient and reliable flow control.
Our High Platform Ball Valves are manufactured and tested according to international standards:

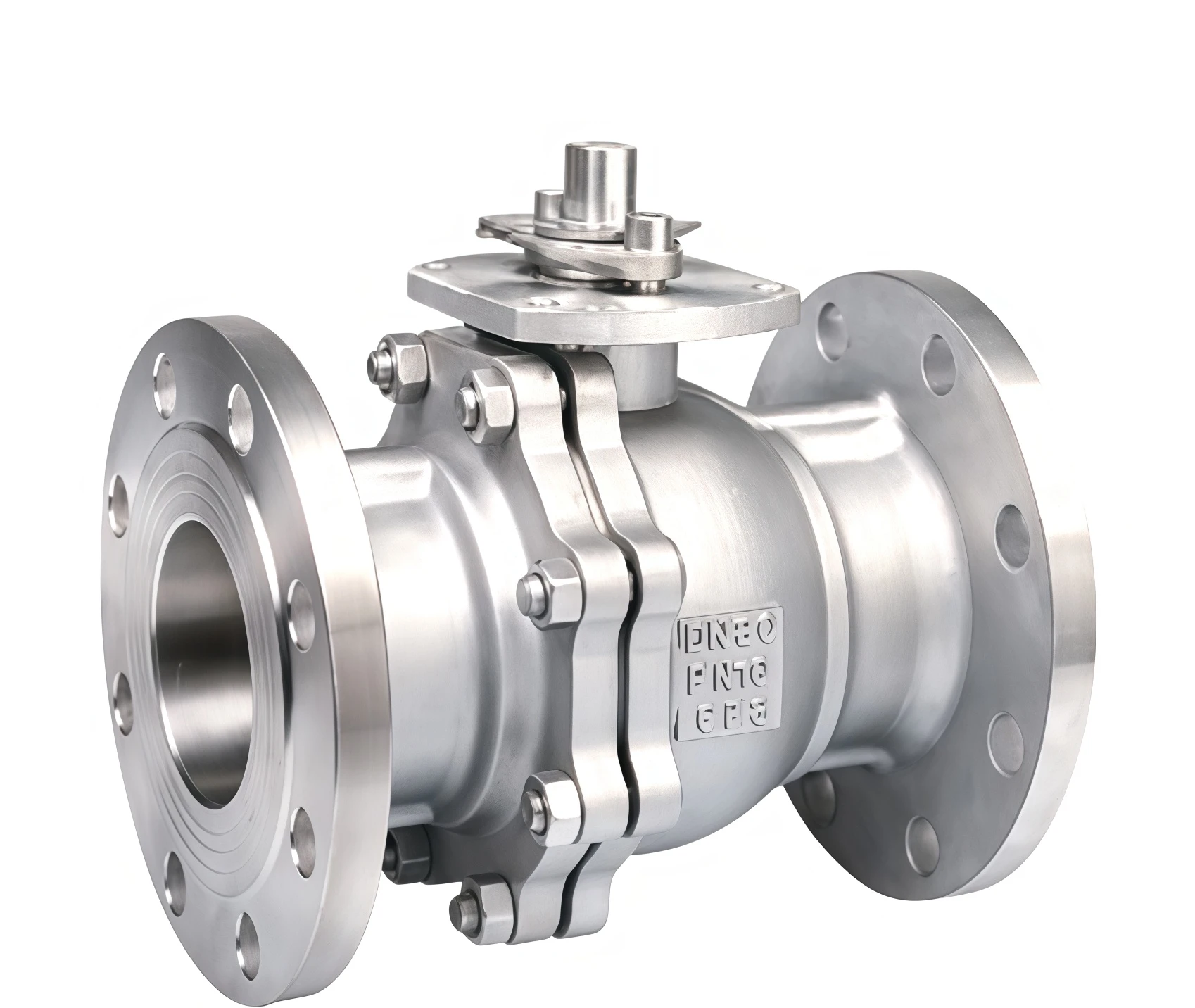

High platform ball valve
| Parameter | Specification |
|---|---|
| Product Name | High Platform Ball Valve |
| Valve Type | Floating Ball Valve / Trunnion Ball Valve |
| Nominal Size | DN15 – DN600 |
| Pressure Rating | PN16 – PN100 |
| ANSI Class | Class 150 – Class 600 |
| Body Material | CF8, CF8M, WCB, Duplex Steel |
| Ball Material | SS304, SS316, Chrome-Plated Ball |
| Seat Material | PTFE, RPTFE, PPL, PEEK, Metal Seat |
| Connection Type | Flanged, Threaded, SW, BW, Tri-Clamp |
| Mounting Standard | ISO 5211 |
| Operating Temperature | -196°C to +450°C |
| Leakage Standard | API 598 / ISO 5208 |
| Design Standard | API 608, ASME B16.34, DIN, GB |
| Applicable Media | Water, Oil, Gas, Steam, Chemicals |
High platform ball valve
Used in upstream, midstream, and downstream pipeline systems requiring reliable shutoff and automation.
Suitable for corrosive chemicals, solvents, acids, and industrial process fluids.
Provides dependable flow isolation in municipal and industrial water treatment facilities.
Applied in cooling water, steam, and auxiliary process systems.
Available with sanitary connections for hygienic processing applications.
Ideal for automated flow control systems equipped with pneumatic and electric actuators.
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
