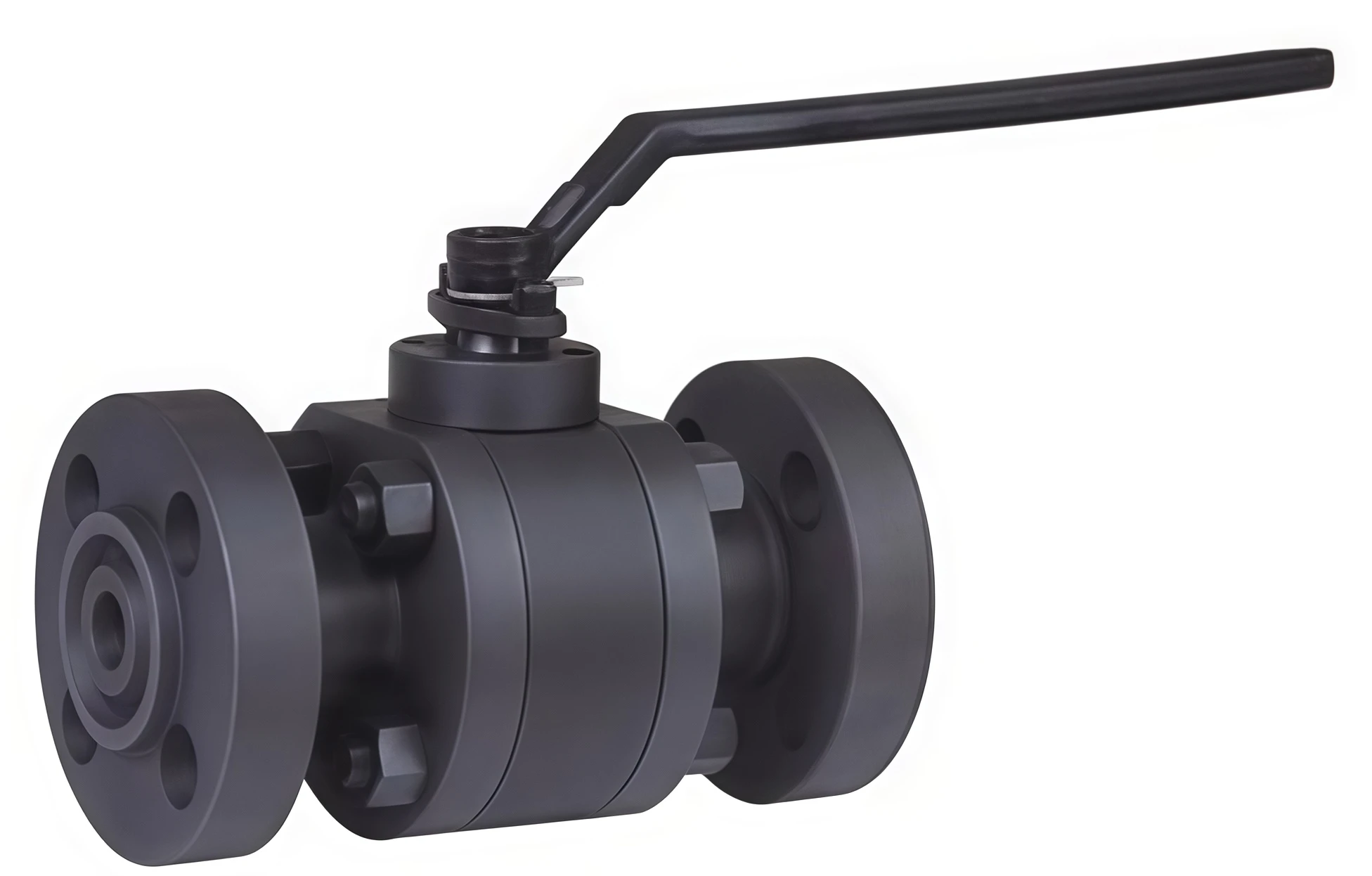

High pressure forged steel floating ball valve
The High Pressure Forged Steel Floating Ball Valve features a precision-engineered floating ball design and forged steel body construction. Built for demanding high-pressure applications, it provides excellent sealing performance, corrosion resistance, and operational reliability. The valve ensures bubble-tight shutoff, reduced maintenance, and long-term durability in critical industrial systems.
High pressure forged steel floating ball valve
The High Pressure Forged Steel Floating Ball Valve is specifically designed for high-pressure and high-temperature services where safety, durability, and sealing integrity are essential. The floating ball mechanism utilizes line pressure to enhance seat contact, ensuring reliable shutoff performance.
Manufactured from premium forged carbon steel, stainless steel, duplex steel, and alloy materials, the valve delivers superior mechanical strength and resistance to extreme operating conditions. Available with manual, gear, pneumatic, or electric operation, it is widely used in oil & gas, petrochemical, LNG, power generation, and industrial processing systems.
Our High Pressure Forged Steel Floating Ball Valves are manufactured and tested according to international standards:
High pressure forged steel floating ball valve
| Parameter | Specification |
|---|---|
| Product Name | High Pressure Forged Steel Floating Ball Valve |
| Valve Type | Floating Ball Valve |
| Nominal Size | DN15 – DN300 |
| Pressure Rating | PN16 – PN420 |
| ANSI Class | Class 150 – Class 2500 |
| Body Material | A105, F304, F316, Duplex, Alloy Steel |
| Ball Material | SS304, SS316, Chrome-Plated, Inconel |
| Seat Material | PTFE, RPTFE, PEEK, Nylon, Metal Seat |
| Connection Type | NPT, SW, BW, RF, RTJ |
| Operation | Manual, Gear, Pneumatic, Electric |
| Temperature Range | -196°C to +550°C |
| Leakage Standard | API 598 / ISO 5208 |
| Design Standard | API 6D, API 608, ASME B16.34 |
| Applicable Media | Oil, Gas, Steam, LNG, Chemicals |
High pressure forged steel floating ball valve
Suitable for high-pressure transmission pipelines, wellhead systems, storage terminals, and refinery operations.
Provides reliable shutoff for hydrocarbon processing, chemical transportation, and process control systems.
Used in boiler feedwater systems, steam pipelines, and auxiliary power plant applications.
Designed for liquefied natural gas storage, transportation, and cryogenic processing facilities.
Handles corrosive chemicals, solvents, acids, and specialty industrial fluids.
Provides dependable flow isolation and control in critical production and process systems.
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
