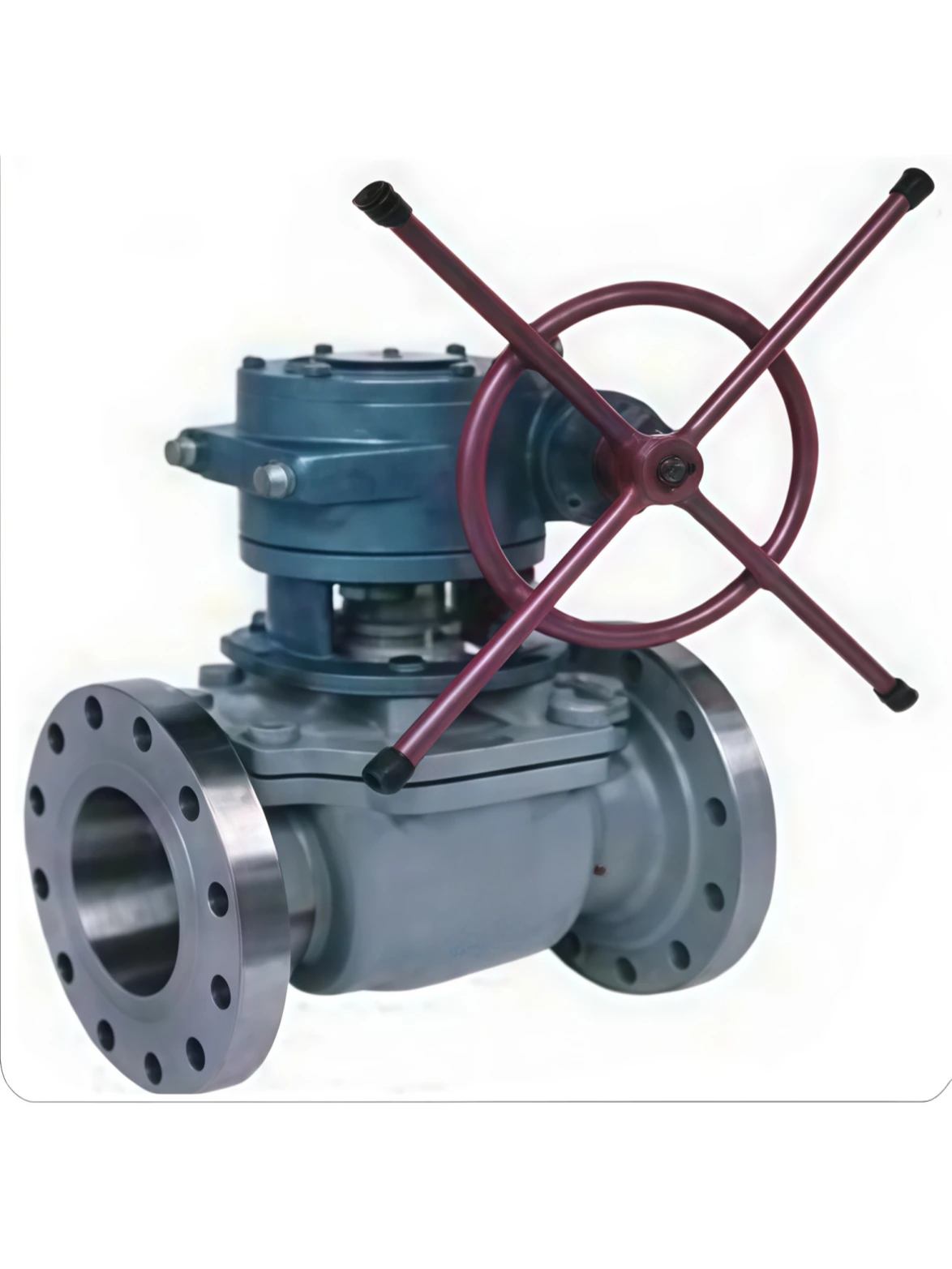

Inclined ball valve
The Inclined Ball Valve is a high-performance flow control solution designed for demanding industrial applications requiring reliable shut-off, excellent sealing performance, and efficient fluid management. Featuring an inclined valve structure, this design helps reduce flow resistance, optimize fluid passage, and improve operational stability.
Manufactured with advanced machining technology and strict quality control systems, the Inclined Ball Valve provides excellent durability, corrosion resistance, and long service life. It is suitable for handling various media, including water, oil, gas, chemicals, and other industrial fluids.
With strong OEM and customization capabilities, we can provide tailor-made valve solutions according to customers’ specific requirements, including customized dimensions, materials, pressure ratings, connection standards, actuator configurations, surface treatments, and special working conditions.
Our valves are manufactured in compliance with international valve industry standards and supported by complete certifications and quality management systems, including ISO 9001, CE, API, and other industry-related certifications (depending on product configuration and market requirements), ensuring reliable performance and global application compatibility.
Inclined ball valve
We provide comprehensive OEM/ODM services, including:
Parameter Specifications
| Parameter | Specification |
|---|---|
| Product Name | Inclined Ball Valve |
| Valve Type | Inclined Design Ball Valve |
| Nominal Size | DN15–DN300 / Customized |
| Pressure Rating | PN10–PN40, Class 150–300 (Customized) |
| End Connection | Threaded / Flanged / Welded / Customized |
| Body Material | Stainless Steel, Carbon Steel, Alloy Steel, Brass, Customized |
| Ball Material | Stainless Steel / Alloy Material / Customized |
| Seat Material | PTFE, RPTFE, PEEK, Metal Seat, Customized |
| Seal Material | PTFE, Graphite, FKM, EPDM, Customized |
| Operating Temperature | -40°C to +250°C (Depending on Material Selection) |
| Working Medium | Water, Oil, Gas, Steam, Chemical Media, Industrial Fluids |
| Flow Control | On/Off Control, Optional Modulating Control |
| Operation Type | Manual Handle / Pneumatic Actuator / Electric Actuator |
| Leakage Standard | ISO 5208 / API 598 (According to Configuration) |
| Design Standard | API / ASME / EN / DIN Standards Available |
| Inspection Standard | Pressure Testing According to International Standards |
| Certification | ISO 9001, CE, API, Industry-Specific Certifications Available |
| OEM Service | Available |
| Customization | Size, Material, Pressure, Connection, Actuator, Logo, Packaging |
Industry Applications
The Inclined Ball Valve is widely used in various industries where reliable shut-off, precise flow control, and long-term durability are required.
Inclined Ball Valve Advantages
✔ High sealing reliability
✔ Low flow resistance and efficient operation
✔ Long service life and excellent durability
✔ Wide material selection for different media
✔ Flexible OEM customization capability
✔ Suitable for demanding industrial environments
✔ Manufactured under strict quality control standards
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
