How Does a Ball Valve Work?

The basic operation of a ball valve is simple, thanks to its quarter-turn mechanism:

1. Opening the Valve:

When the valve is turned 90 degrees (a quarter-turn), the ball inside the valve rotates to align the hole with the flow path.

This alignment allows fluid to pass through the valve.

The handle or actuator is connected to the stem, which turns the ball inside the valve.

2. Closing the Valve:

When the valve handle is turned in the opposite direction, the ball rotates 90 degrees to block the flow.

The solid side of the ball (without a hole) faces the flow path, effectively shutting off the flow.

3. Sealing:

The ball is typically made of hard materials (like stainless steel, brass, or plastic), and the valve seat (the area where the ball contacts the valve body) is designed to create a tight seal. This prevents leakage when the valve is closed.

Key Components of a Ball Valve:

1. Body: The main structure that holds the ball, seats, and other internal parts together. It's usually made of metal, but it can be made of plastic for lighter applications.

2. Ball: The rotating ball with a hole in the middle that controls flow. It can be made from materials like stainless steel, brass, or plastic (depending on the application).

3. Stem: The rod that connects the ball to the valve handle or actuator. It rotates the ball when you turn the handle.

4. Seats: The seals that prevent leakage when the ball is in the closed position. These are usually made of resilient materials like PTFE (Teflon).

5. Handle/Actuator: The external component that you turn to open or close the valve. For manual operation, it's usually a lever or handle; for automated systems, it could be powered by an electric or pneumatic actuator.

Applications of Industrial Ball Valve

• Oil and gas pipelines
  Used for fast shut-off and flow isolation in transmission, distribution, or process pipeline sections.
• Chemical processing systems
  Suitable for projects where medium compatibility, sealing performance, and corrosion resistance must be confirmed.
• Coal chemical industry

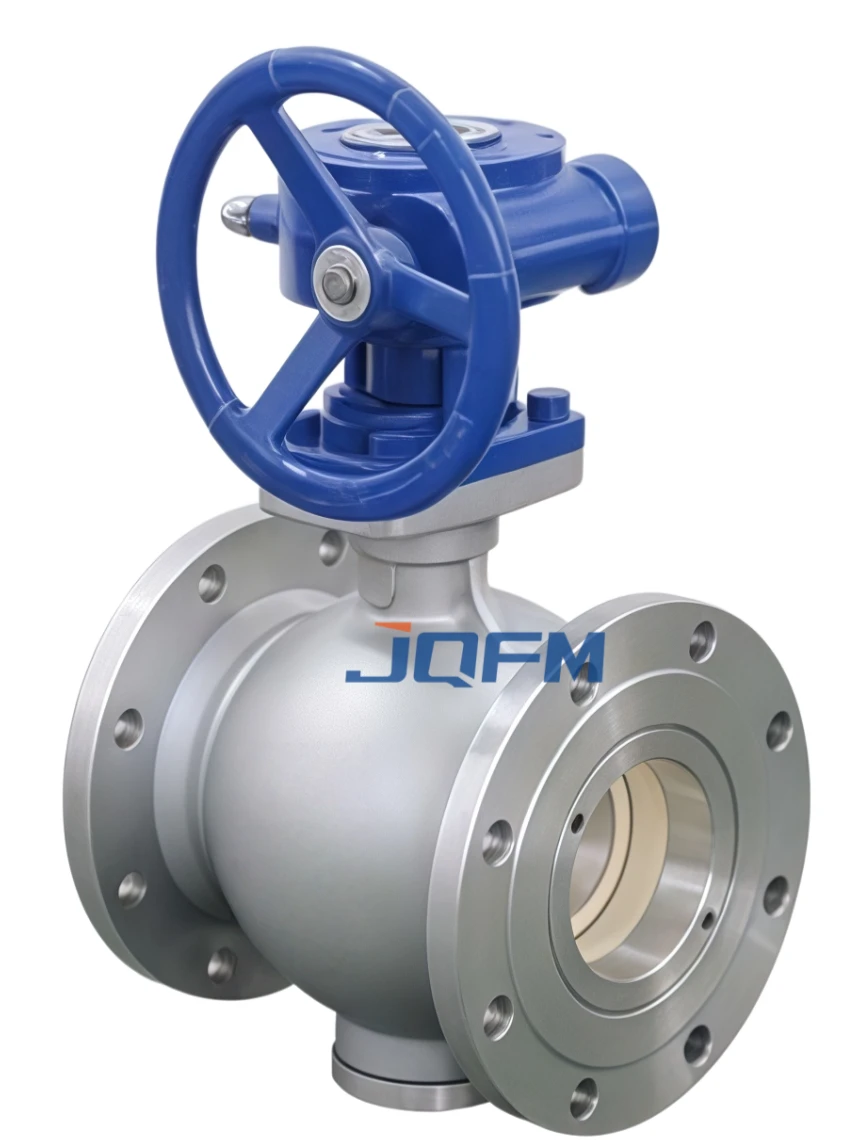

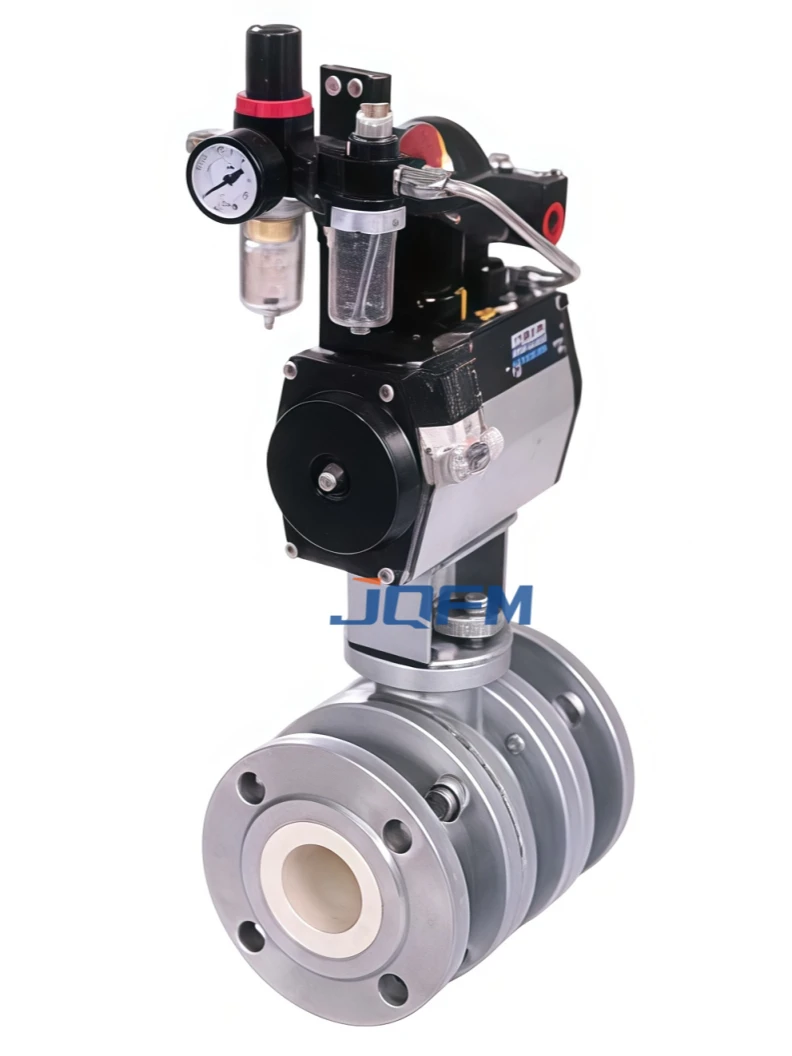

  Wear-resistant fixed ball valve options can be considered for demanding coal chemical working conditions.
• Water supply and industrial water systems
  Used where simple operation and reliable on/off control are required.
• Heating, HVAC, and energy systems
  Suitable for pipeline sections that need quick shut-off, maintenance isolation, or system control.
• Underground or buried pipelines

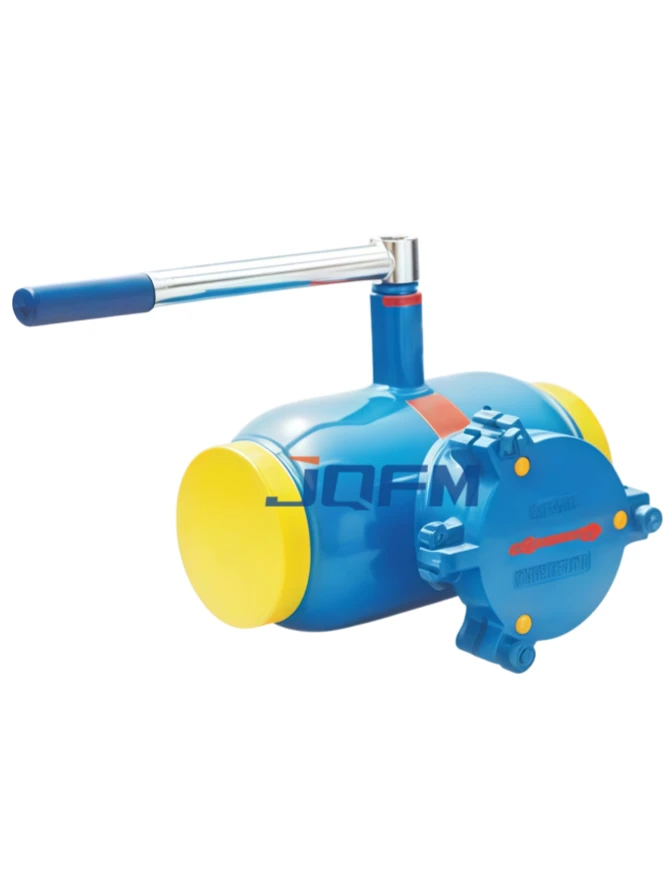

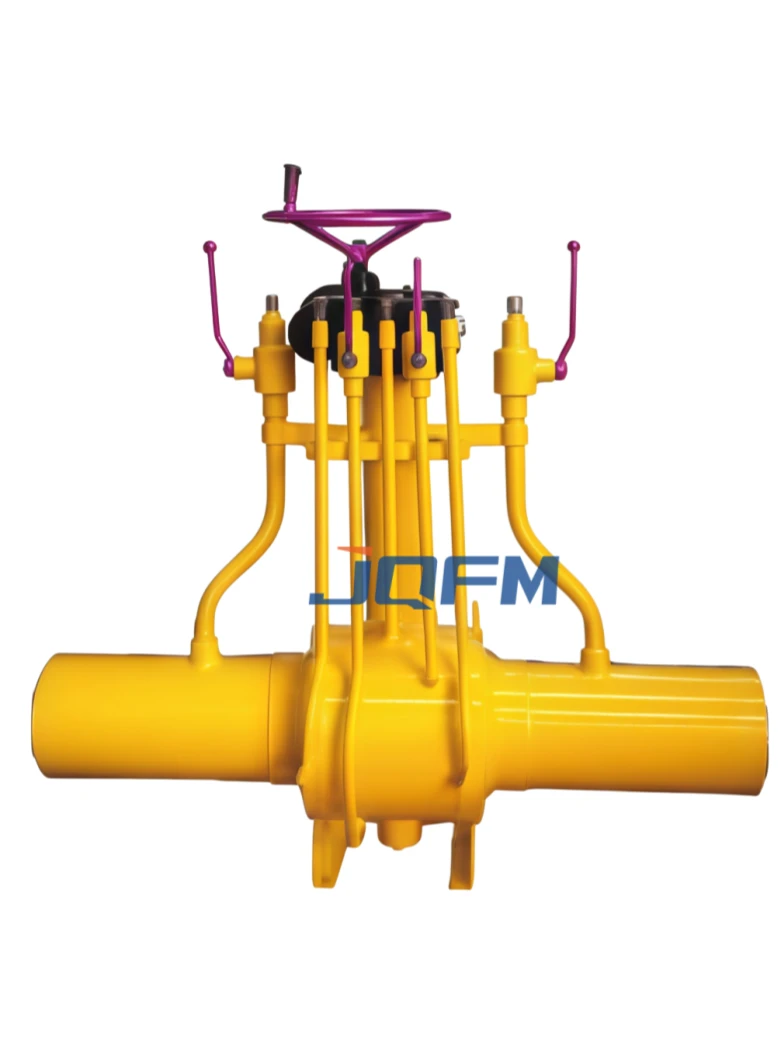

  Direct buried ball valves and all welded ball valves can be considered when installation space, pipeline protection, and long-term sealing are important.
• Automated pipeline control

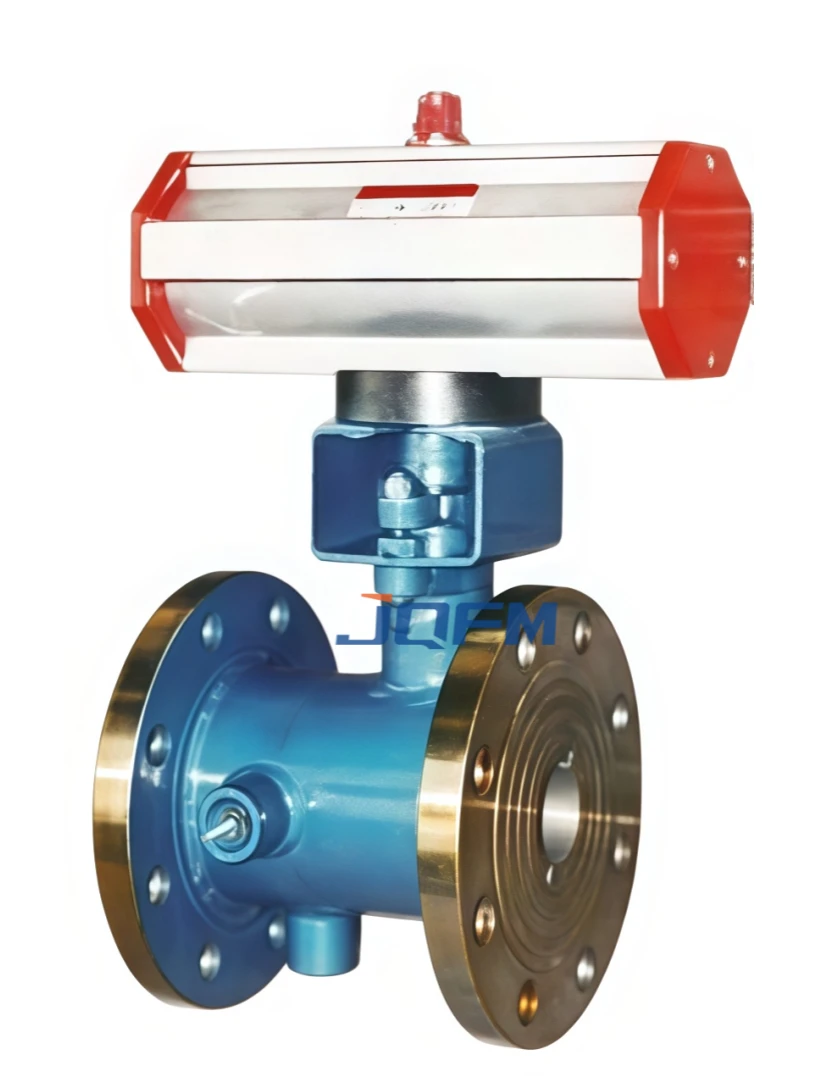

  High platform ball valves, electric actuated options, or pneumatic control configurations can support remote or automatic operation when required.

Advantages of Industrial Ball Valve

• Quarter-turn operation
  The valve can be opened or closed by rotating the ball 90 degrees, making operation faster than many multi-turn valve structures.
• Reliable sealing
  The ball and valve seat form a tight sealing surface when closed, helping reduce leakage risk in shut-off applications.
• Low flow resistance
  When fully open, the port of the ball aligns with the pipeline, allowing the medium to pass through with limited obstruction.
• Simple structure and easy operation
  Main components include the body, ball, stem, seats, and handle or actuator, which makes the valve practical for many industrial pipeline systems.
• Multiple structure choices
  Floating ball, fixed ball, forged steel, stainless steel, worm gear, all welded, direct buried, and high platform designs allow buyers to choose according to pressure, medium, installation, and operation needs.
• Suitable for manual and automated systems
  Ball valves can be operated manually or combined with electric or pneumatic actuators depending on control requirements.

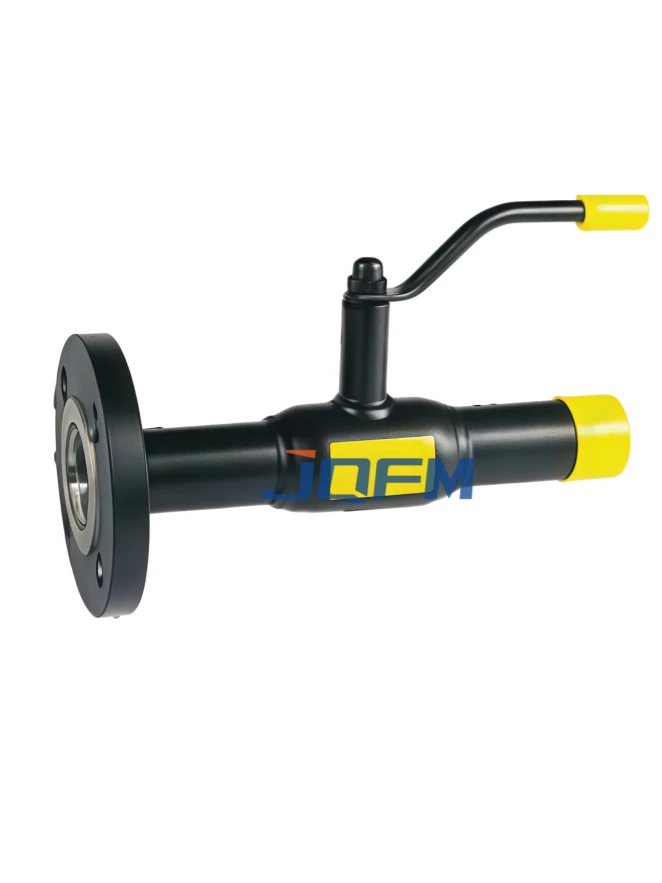

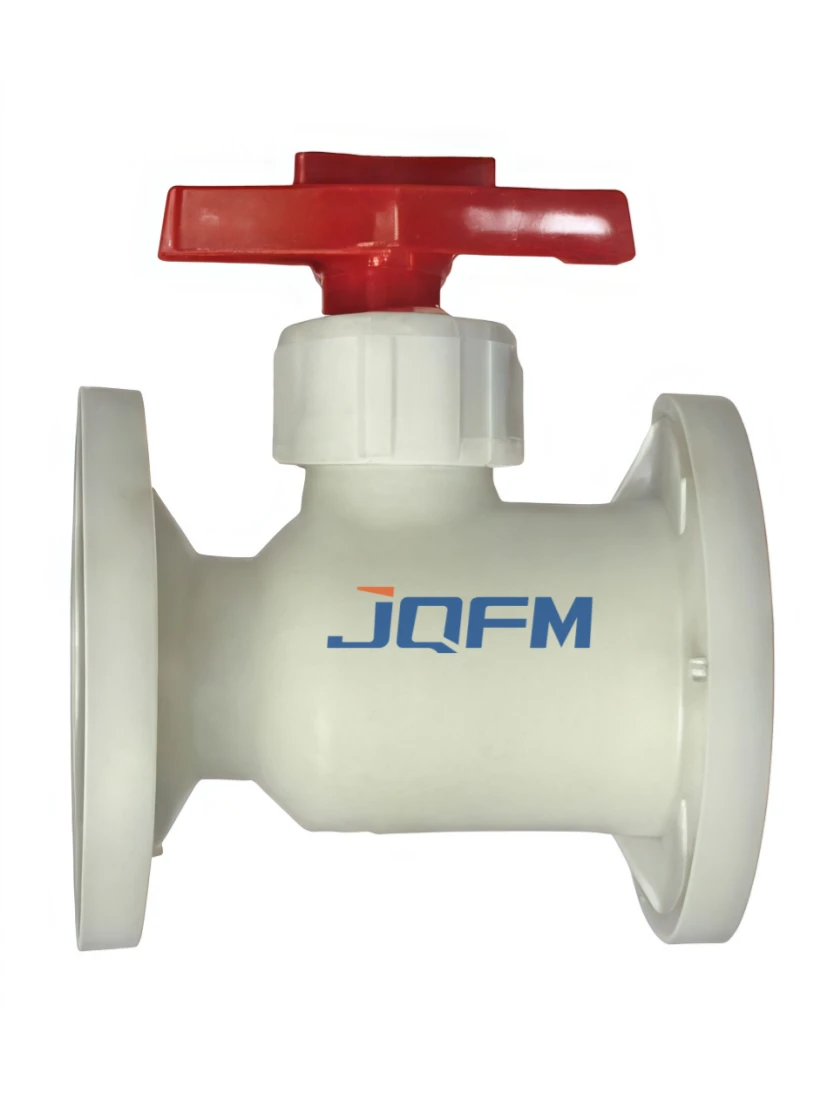

Custom Industrial Ball Valve Options

How to Choose a Industrial Ball Valve

• Medium type
  Confirm whether the pipeline carries water, oil, gas, steam, chemical liquid, slurry, or corrosive media.
• Working pressure
  Select a suitable pressure class according to pipeline design requirements.
• Working temperature
  Check whether the sealing material and valve structure can handle normal, high, low, or fluctuating temperatures.
• Valve structure
  Choose floating ball valves for general shut-off use, fixed ball valves for more demanding conditions, or all welded/direct buried designs for specific installation needs.
• Material requirement
  Select stainless steel, forged steel, cast steel, or other materials according to strength, corrosion resistance, and medium compatibility.
• Connection method
  Confirm whether the project requires flange, threaded, welded, API, ANSI, DIN, or another connection standard.
• Operation method

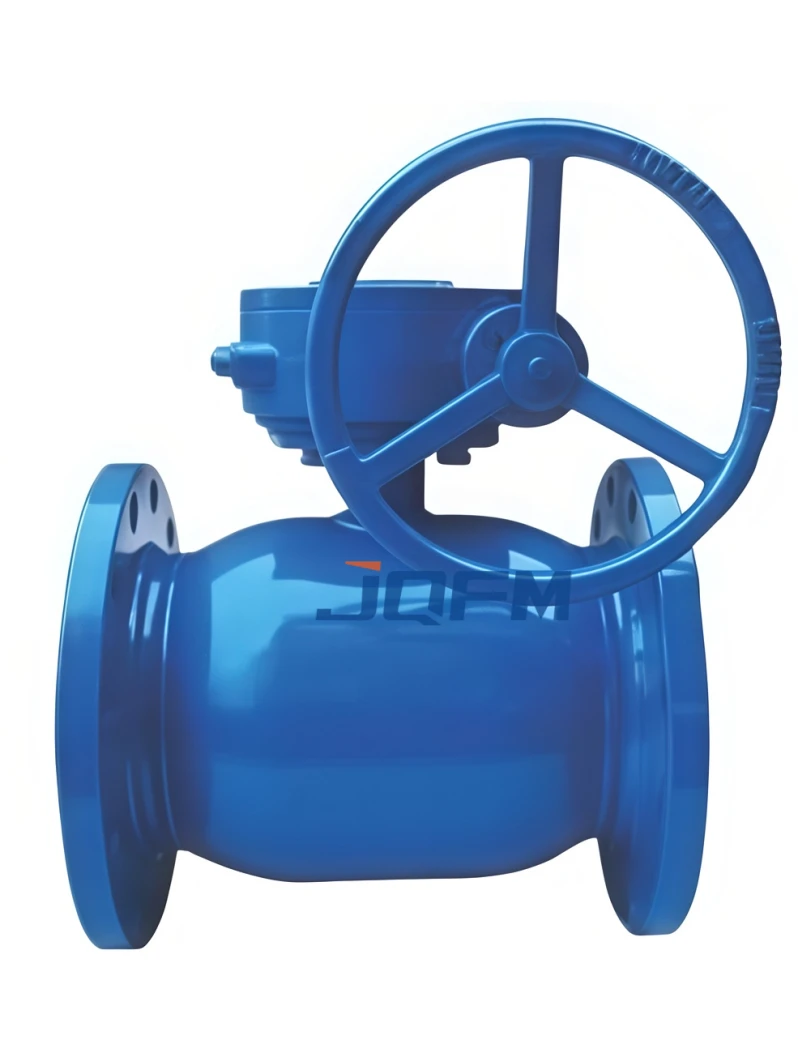

  Decide whether manual operation is enough, or whether worm gear, electric, or pneumatic control is needed.
• Installation environment
  Consider whether the valve will be installed indoors, outdoors, underground, in a corrosive area, or in a space-limited pipeline section.
• Certification and documentation
  For engineering projects, confirm whether drawings, inspection reports, certificates, and compliance documents are required before ordering.
• Standard or custom order
  The FAQ states that MOQ is 1 piece for standard items, while special specifications are negotiable; it also lists 3–7 days for stock items and 15–30 days for customized orders. Final lead time should be confirmed based on ball valve size, material, quantity, and customization requirements.

Industrial Ball Valve Manufacturer Advantages | Jianqiao

• Integrated valve manufacturing capability
  The company is described as a valve manufacturer integrating R&D, production, and sales.
• Established industry background
  The company was established in the early 1990s and has been recognized as a National High-tech Enterprise.
• Manufacturing and R&D scale
  Published company information mentions a 12,000-square-meter manufacturing plant and a more than 4,000-square-meter R&D and office complex.
• Multiple production bases
  The Group owns production bases in Shanxi, Hebei, and Fujian, supporting broader manufacturing and supply capacity.
• Technical team support
  The company has 326 employees, including 28 professional and technical personnel with senior and intermediate titles.
• Quality and certification support
  The certification page states that the company has advanced testing equipment, quality control from raw materials to production, and qualifications including ISO 9001, ISO 14001, OHSAS 18001, TS, CCC, UL, FM, CE, ABS, and API.
