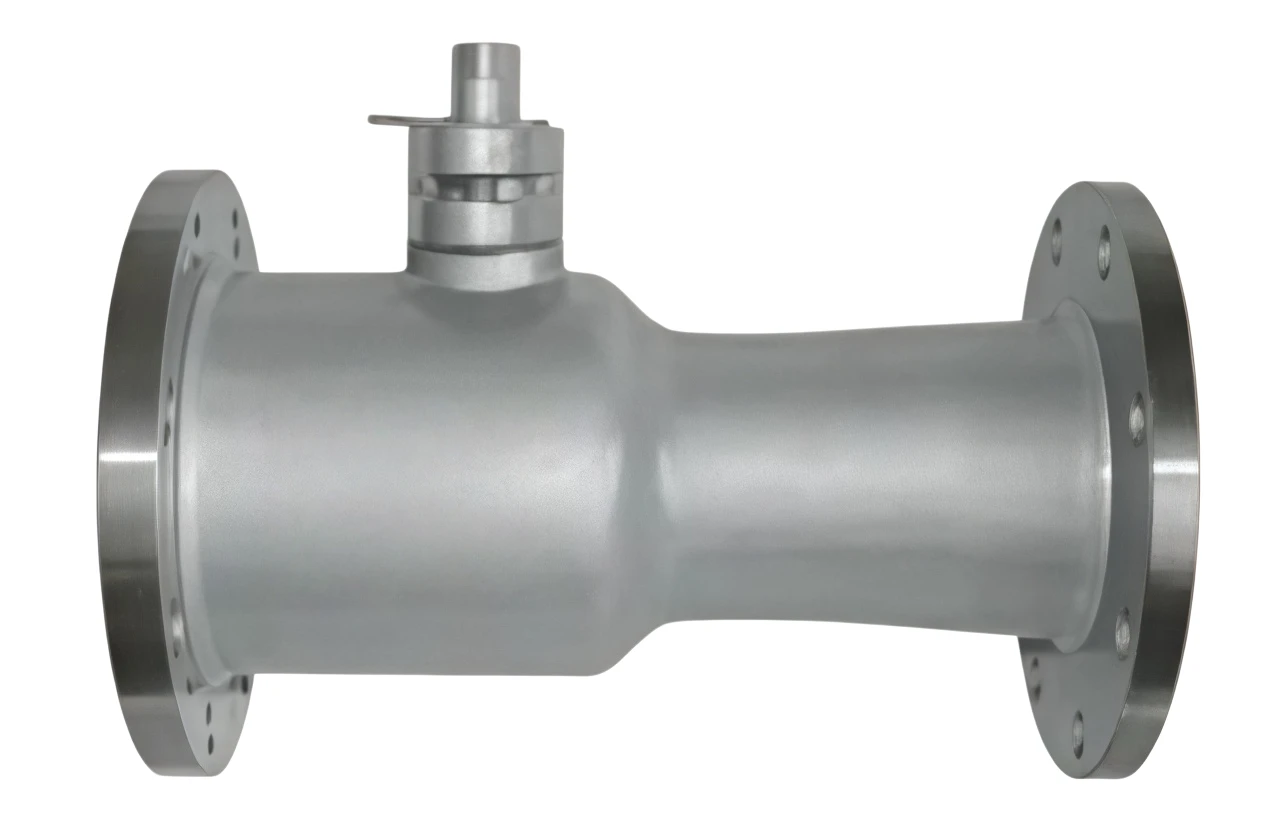

Integrated ball valve
The Integrated Ball Valve is manufactured with a one-piece body construction that enhances structural strength and minimizes potential leakage paths. Designed for dependable shutoff and flow control, it offers low operating torque, corrosion resistance, and long service life. Suitable for liquids, gases, steam, and chemical media across various industries.
Integrated ball valve
The Integrated Ball Valve is a compact and highly reliable quarter-turn valve designed for isolation and flow control applications. Its one-piece body structure provides superior mechanical integrity while reducing the number of joints and sealing points, significantly lowering the risk of external leakage.
Manufactured from premium carbon steel, stainless steel, duplex stainless steel, brass, and special alloy materials, the valve delivers excellent corrosion resistance and long-term performance. The compact design simplifies installation and maintenance, making it an ideal choice for industrial processing, utility services, and automated control systems.
Our Integrated Ball Valves are manufactured and tested according to international standards:
Integrated ball valve
| Parameter | Specification |
|---|---|
| Product Name | Integrated Ball Valve |
| Valve Type | One-Piece Floating Ball Valve |
| Nominal Size | DN15 – DN300 |
| Pressure Rating | PN16 – PN160 |
| ANSI Class | Class 150 – Class 900 |
| Body Material | WCB, SS304, SS316, Duplex, Brass |
| Ball Material | SS304, SS316, Chrome-Plated |
| Seat Material | PTFE, RPTFE, PEEK, Metal Seat |
| Connection Type | Threaded, Flanged, SW, BW, Clamp |
| Operation | Manual, Pneumatic, Electric |
| Temperature Range | -46°C to +450°C |
| Leakage Standard | API 598 / ISO 5208 |
| Design Standard | API 608, API 6D, ASME B16.34 |
| Applicable Media | Water, Oil, Gas, Steam, Chemicals |
Integrated ball valve
Suitable for pipeline isolation, storage facilities, refining systems, and utility services.
Handles corrosive and non-corrosive process media with reliable sealing performance.
Applied in water distribution systems, filtration equipment, and treatment plants.
Provides dependable shutoff and sanitary process control solutions.
Suitable for liquid transfer systems, ingredient handling, and production equipment.
Used in heating, cooling, compressed air, and utility pipeline networks.
Can be integrated with pneumatic and electric actuators for automated flow control systems.
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
