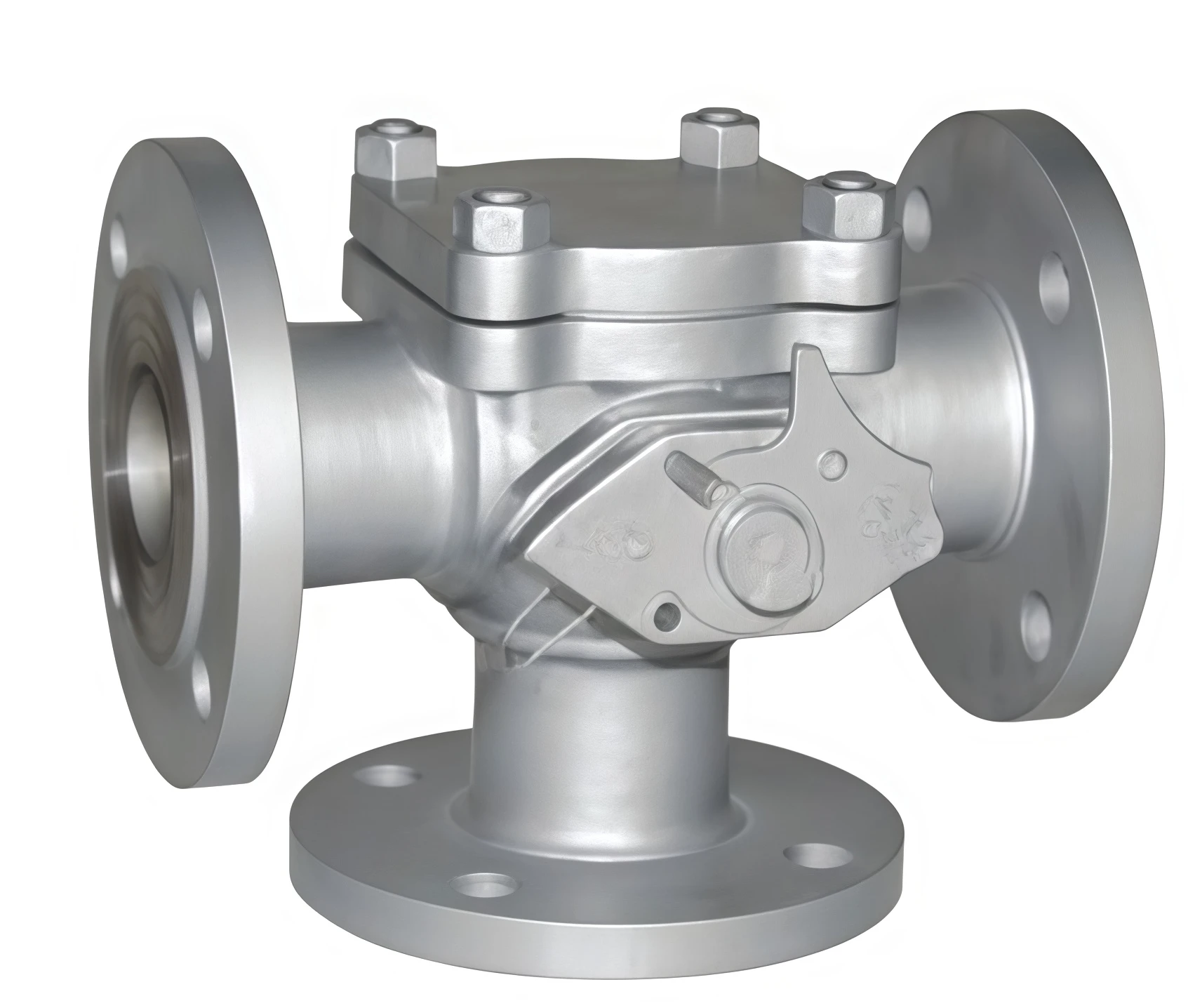

Integrated three-way ball valve
The Integrated Three-Way Ball Valve features a one-piece body design with L-port or T-port configurations for flow switching, mixing, and distribution. Its compact structure minimizes leakage points while providing excellent sealing performance, low operating torque, and dependable operation. Ideal for automated process systems handling liquids, gases, steam, and chemicals.

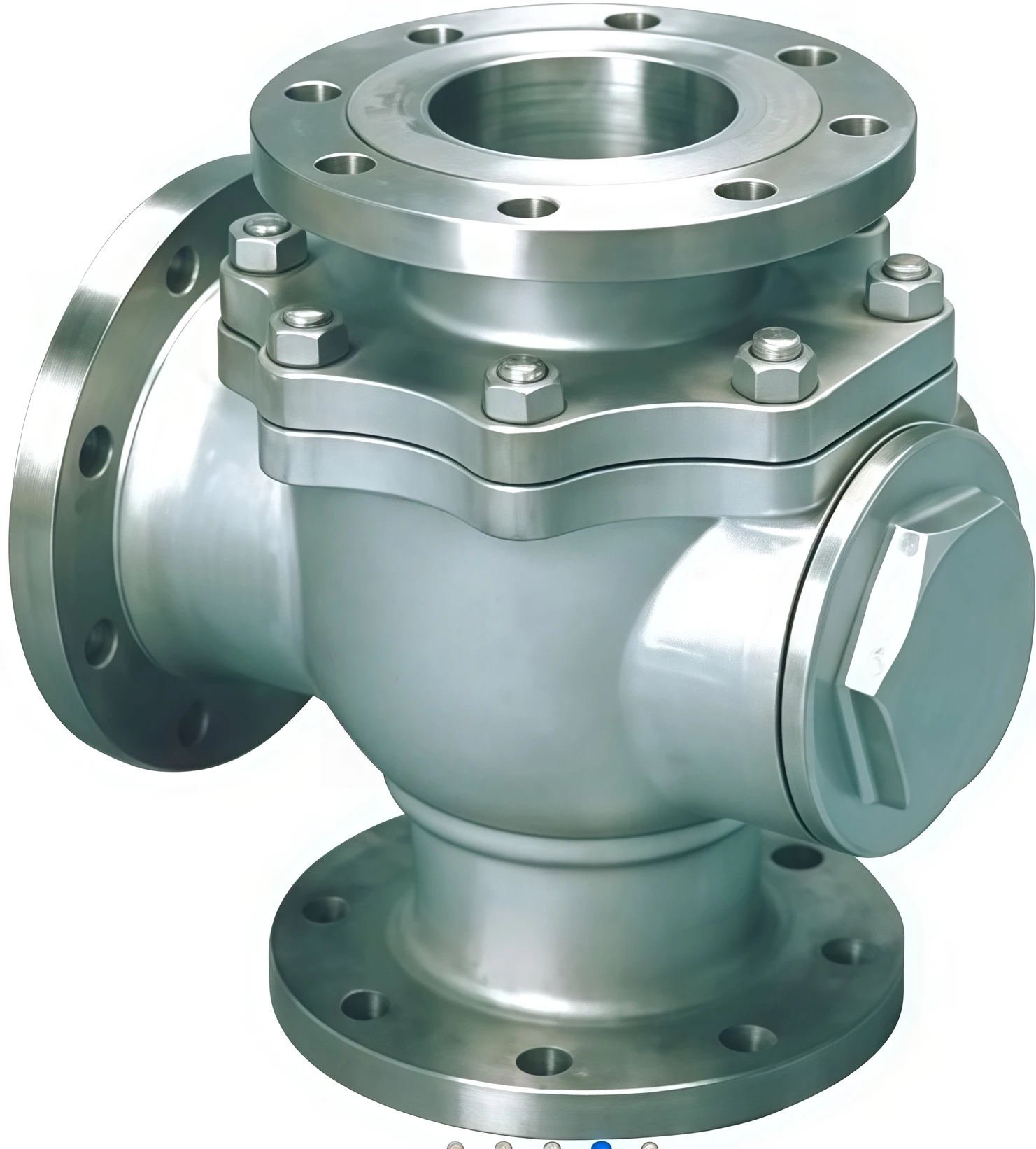

Integrated three-way ball valve
The Integrated Three-Way Ball Valve is a multifunctional valve designed to control, divert, mix, or distribute fluid flow through a single compact valve body. Compared with traditional multi-valve assemblies, its integrated construction reduces installation space, piping complexity, maintenance requirements, and potential leakage points.
Available in L-Port and T-Port designs, the valve can perform flow switching, converging, or diverging functions according to process requirements. Manufactured from high-quality stainless steel, carbon steel, duplex stainless steel, and special alloy materials, it delivers outstanding durability and sealing reliability in demanding industrial applications.
Our Integrated Three-Way Ball Valves are manufactured and tested according to international standards:
Integrated three-way ball valve
| Parameter | Specification |
|---|---|
| Product Name | Integrated Three-Way Ball Valve |
| Valve Type | L-Port / T-Port Ball Valve |
| Nominal Size | DN15 – DN500 |
| Pressure Rating | PN16 – PN160 |
| ANSI Class | Class 150 – Class 900 |
| Body Material | WCB, CF8, CF8M, Duplex Steel |
| Ball Material | SS304, SS316, Chrome-Plated |
| Seat Material | PTFE, RPTFE, PEEK, Metal Seat |
| Port Configuration | L-Port / T-Port |
| Connection Type | Flanged, Threaded, SW, BW, Clamp |
| Operation | Manual, Pneumatic, Electric |
| Temperature Range | -196°C to +450°C |
| Leakage Standard | API 598 / ISO 5208 |
| Design Standard | API 608, API 6D, ASME B16.34 |
| Applicable Media | Water, Oil, Gas, Steam, Chemicals |
Integrated three-way ball valve
Used for media diversion, blending, and automated process control in chemical production systems.
Suitable for flow switching and distribution in transmission pipelines, storage facilities, and refinery operations.
Applied in water distribution systems, filtration units, and treatment facilities.
Provides accurate fluid routing and hygienic process control.
Ideal for liquid transfer, ingredient blending, and automated production lines.
Integrated with electric and pneumatic actuators for intelligent flow management and process optimization.
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
