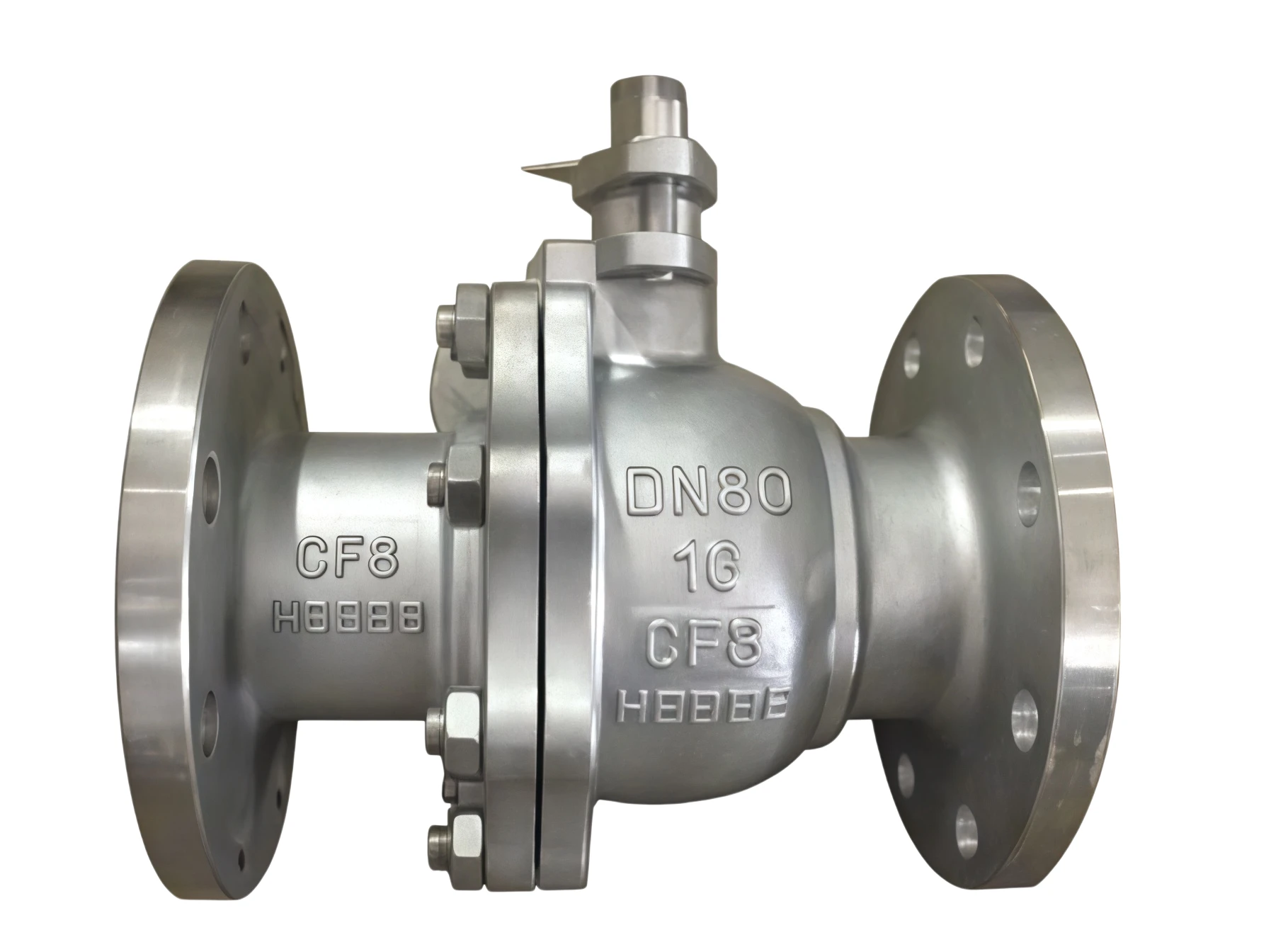

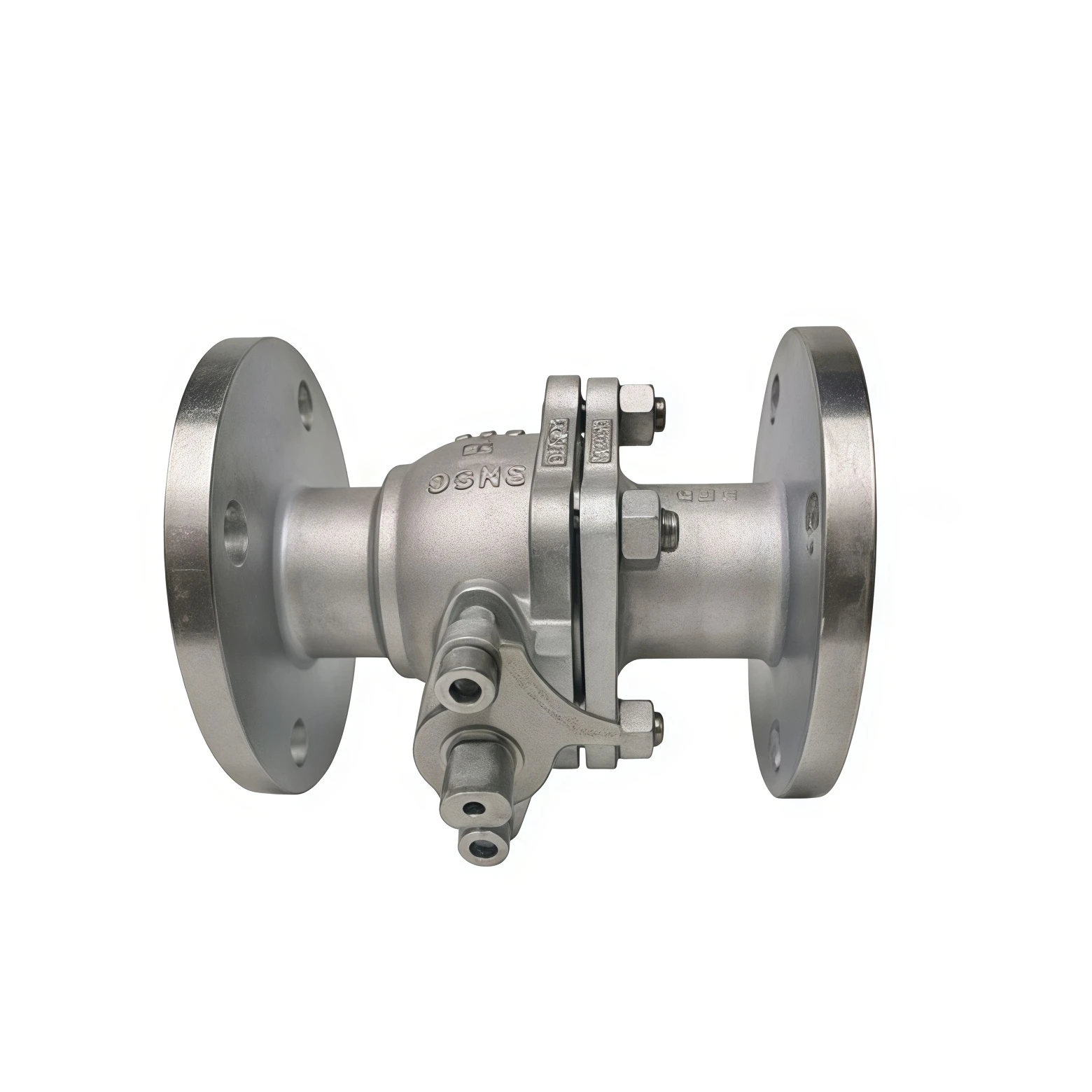

Japanese standard floating ball valve
The Japanese Standard Floating Ball Valve features a floating ball design that ensures tight sealing under variable pressures. Manufactured to JIS standards, it offers compact size, low operating torque, and high corrosion resistance. Suitable for water, oil, gas, and chemical media, it supports both manual and automated operations.
Japanese standard floating ball valve
The Japanese Standard Floating Ball Valve is designed according to JIS (Japanese Industrial Standards) for general industrial and chemical applications. Its floating ball design allows the ball to self-align, ensuring a bubble-tight shutoff with minimal operating torque.
Constructed from premium stainless steel, carbon steel, and alloy materials, it offers excellent corrosion and wear resistance. The valve supports full port or reduced port configurations and can be manually operated or actuated with pneumatic or electric actuators.
Widely applied in water treatment, chemical processing, petroleum, gas pipelines, and industrial automation systems, it ensures reliable and long-lasting performance.
Our Japanese Standard Floating Ball Valves comply with international standards:
Japanese standard floating ball valve
| Parameter | Specification |
|---|---|
| Product Name | Japanese Standard Floating Ball Valve |
| Valve Type | Floating Ball Valve |
| Nominal Size | DN15 – DN600 |
| Pressure Rating | PN10 – PN100 |
| ANSI Class | Class 150 – Class 600 |
| Body Material | CF8, CF8M, WCB, Duplex Steel, Alloy Steel |
| Ball Material | SS304, SS316, Chrome Plated, Hastelloy, Monel |
| Seat Material | PTFE, RPTFE, PPL, PEEK, Metal Seat |
| Connection Type | Flanged, Threaded, SW, BW, Tri-Clamp |
| Operation | Manual / Pneumatic / Electric Actuator |
| Temperature Range | -196°C to +450°C |
| Leakage Standard | API 598 / ISO 5208 |
| Design Standard | JIS B2002/B2003, ASME B16.34, API 608 |
| Applicable Media | Water, Oil, Gas, Chemicals, Steam |
Japanese standard floating ball valve
Reliable shutoff for industrial and municipal water pipelines.
Handles acids, solvents, and chemical process fluids.
Suitable for pipelines, storage, and distribution systems.
Supports integration with pneumatic and electric actuators for automated control.
Sanitary-compatible options available for hygienic applications.
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
