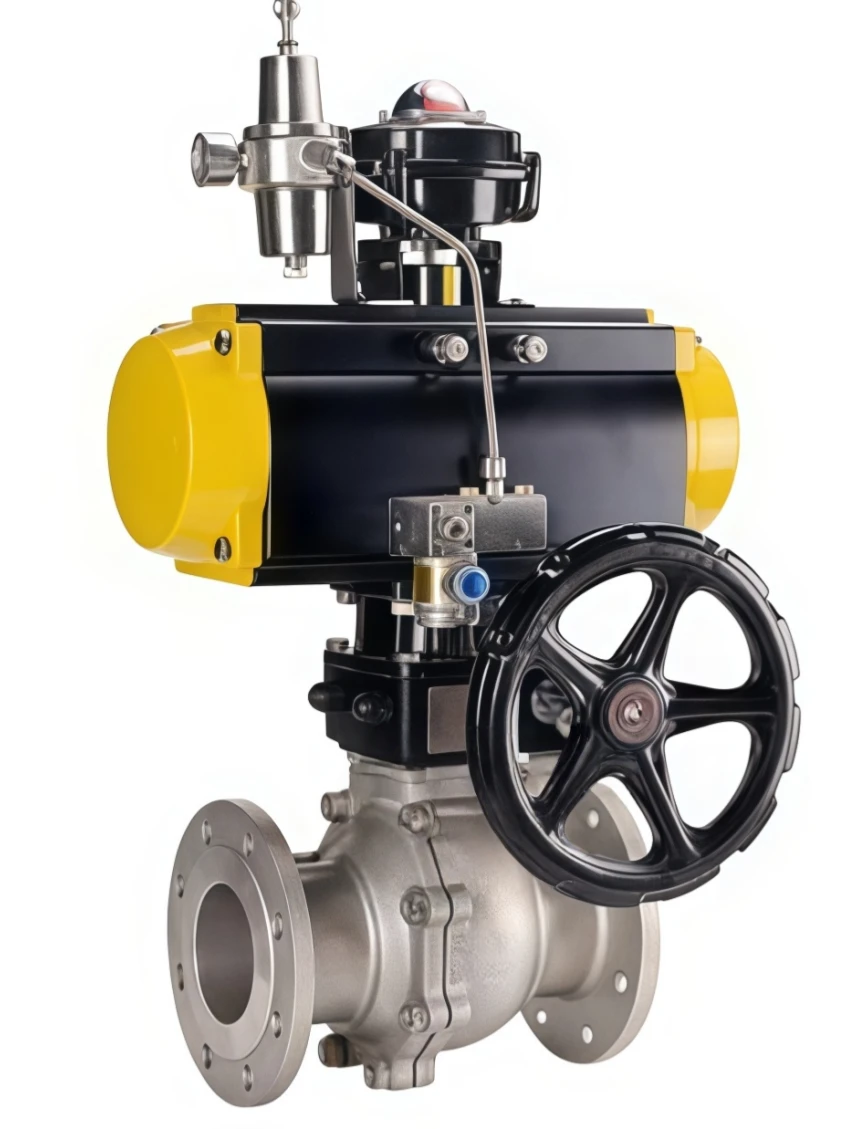

Pneumatic fixed ball valve
The Pneumatic Fixed Ball Valve is a high-performance automated valve designed with a trunnion-mounted fixed ball structure and equipped with a pneumatic actuator for fast, reliable, and precise flow control. The fixed ball design provides excellent stability under high pressure and large diameter pipeline conditions, reducing operating torque and ensuring smooth operation.
The valve is widely used in critical pipeline systems requiring automatic shut-off, remote control, and high safety performance. It features a robust structure, double block and bleed function, low operating torque, excellent sealing performance, and long service life.
The pneumatic actuator enables quick response, easy automation integration, and reliable operation in harsh working environments. It is an ideal solution for oil & gas pipelines, petrochemical plants, power stations, chemical processing systems, and industrial fluid control applications.
Pneumatic fixed ball valve
We provide comprehensive OEM/ODM manufacturing services and customized solutions according to customer requirements.
Our Pneumatic Fixed Ball Valves are manufactured according to international valve standards with strict quality control procedures.
Parameter Specifications
| Parameter | Specification |
|---|---|
| Product Name | Pneumatic Fixed Ball Valve |
| Valve Type | Trunnion Mounted Fixed Ball Valve |
| Actuation Type | Pneumatic Actuated Valve |
| Valve Operation | Remote Automatic Control |
| Design Structure | Fixed Ball with Double Support System |
| Nominal Size | DN50 – DN1200 (Customized Available) |
| Pressure Rating | Class 150 – Class 2500 / PN16 – PN420 |
| Design Standard | API 6D / ASME B16.34 |
| End Connection | Flanged / Butt Weld / Customized |
| Body Material | Carbon Steel, Stainless Steel, Alloy Steel |
| Ball Material | Stainless Steel / Special Alloy |
| Stem Material | Stainless Steel |
| Seat Material | PTFE, RPTFE, PEEK, Metal Seat |
| Sealing Type | Soft Seal / Metal Seal |
| Actuator Type | Pneumatic Double Acting / Single Acting |
| Control Medium | Compressed Air / Instrument Gas |
| Air Supply Pressure | 0.4 – 0.8 MPa |
| Working Temperature | -46°C to +200°C (Depending on Materials) |
| Working Medium | Natural Gas, Oil, Water, Chemical Fluids, Steam |
| Flow Direction | Bidirectional |
| Leakage Standard | API 598 / ISO 5208 / EN 12266 |
| Fire Safe Design | API 607 / API 6FA Optional |
| Anti-Corrosion Treatment | Epoxy Coating / FBE / Customized Coating |
| Installation Method | Above Ground / Pipeline Installation |
| Protection Class | IP65 / IP67 (Actuator Protection) |
| Control Accessories | Solenoid Valve, Limit Switch, Positioner Optional |
| Maintenance Requirement | Low Maintenance Design |
| Service Life | 30+ Years Under Normal Conditions |
Industry Applications
The Pneumatic Fixed Ball Valve is widely used in industries requiring automated operation, reliable shut-off, and high-performance flow control.
✔ Pneumatic automatic operation for fast and reliable control
✔ Fixed ball structure suitable for high pressure and large diameter pipelines
✔ Low operating torque and long actuator service life
✔ Excellent sealing performance and zero leakage reliability
✔ Suitable for remote control and automation systems
✔ High corrosion resistance and harsh environment adaptability
✔ Compatible with various control accessories and intelligent systems
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
