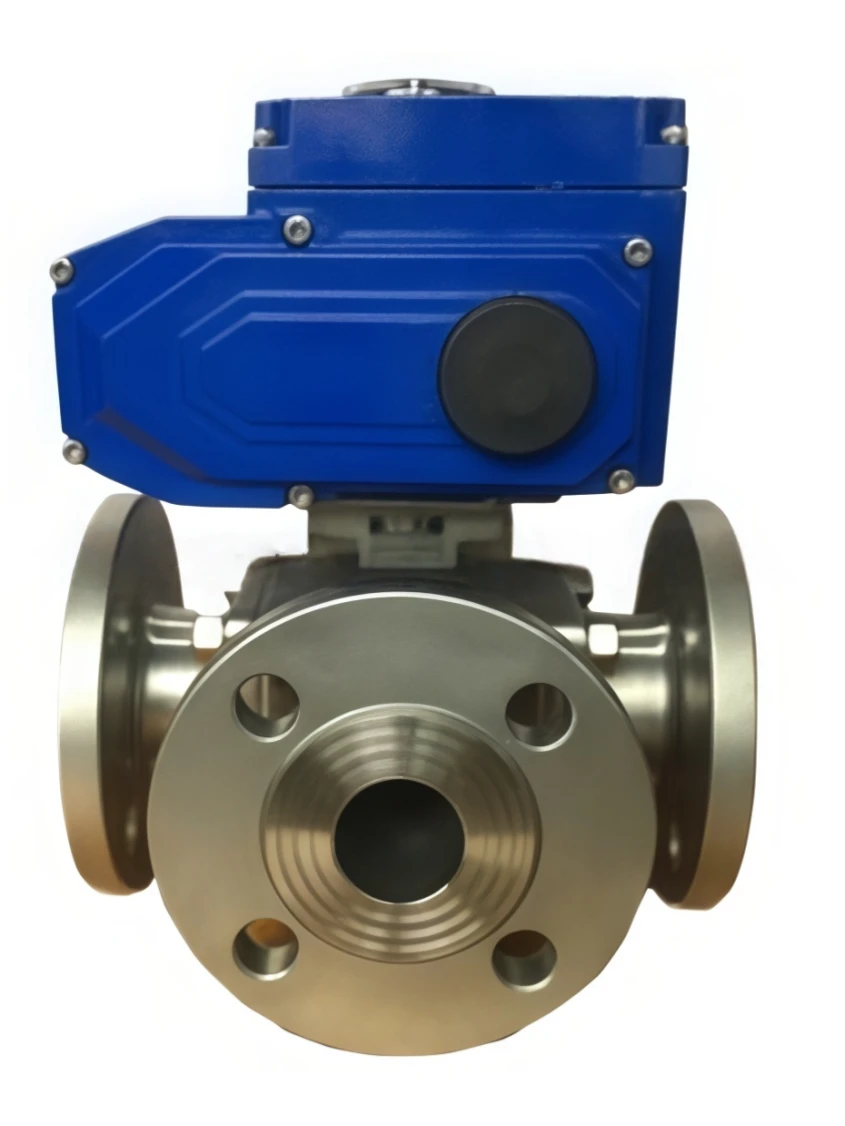

Pneumatic flange three-way ball valve
The Pneumatic Flange Three-Way Ball Valve is an automated multi-port valve designed for efficient flow switching, distribution, and mixing applications. Equipped with a pneumatic actuator, the valve provides fast response, reliable operation, and easy integration into industrial automation systems.
The three-way ball design allows flexible control of fluid flow through different flow patterns, including L-port and T-port configurations, enabling functions such as flow diversion, mixing, and shut-off. The flanged connection design ensures secure installation, excellent sealing performance, and convenient maintenance.
With a compact structure, low operating torque, high flow capacity, and reliable sealing performance, the Pneumatic Flange Three-Way Ball Valve is widely used in industries requiring precise flow control and automatic operation, including chemical processing, oil & gas, water treatment, power generation, and industrial pipeline systems.
Pneumatic flange three-way ball valve
We provide professional OEM/ODM manufacturing services and customized solutions according to customer requirements and application conditions.
Our Pneumatic Flange Three-Way Ball Valves are manufactured under strict quality management systems and comply with international valve industry standards.
Parameter Specifications
| Parameter | Specification |
|---|---|
| Product Name | Pneumatic Flange Three-Way Ball Valve |
| Valve Type | Pneumatic Actuated Three-Way Ball Valve |
| Valve Structure | Floating Ball / Trunnion Mounted Ball Design |
| Port Type | L-Port / T-Port |
| Function | Flow Switching, Mixing, Diverting |
| Nominal Size | DN15 – DN600 (Customized Available) |
| Pressure Rating | Class 150 – Class 600 / PN16 – PN100 |
| Design Standard | API 6D / ASME B16.34 |
| Flange Standard | ANSI, DIN, JIS, Customized |
| Body Material | Carbon Steel, Stainless Steel, Alloy Steel |
| Ball Material | Stainless Steel / Special Alloy |
| Stem Material | Stainless Steel |
| Seat Material | PTFE, RPTFE, PEEK, Metal Seat |
| Sealing Type | Soft Seal / Metal Seal |
| Actuator Type | Pneumatic Double Acting / Single Acting |
| Air Supply Pressure | 0.4 – 0.8 MPa |
| Operation Mode | Automatic On-Off / Flow Switching Control |
| Working Temperature | -46°C to +200°C (Depending on Materials) |
| Working Medium | Water, Gas, Oil, Steam, Chemical Fluids |
| Flow Direction | Multi-directional Flow |
| Leakage Standard | API 598 / ISO 5208 / EN 12266 |
| Fire Safe Design | API 607 / API 6FA Optional |
| Anti-Corrosion Treatment | Epoxy Coating / FBE / Customized Coating |
| Actuator Protection Grade | IP65 / IP67 |
| Control Accessories | Solenoid Valve, Limit Switch, Positioner Optional |
| Installation Method | Pipeline Flange Installation |
| Maintenance Requirement | Low Maintenance Design |
| Service Life | Long Service Life Under Industrial Conditions |
Industry Applications
The Pneumatic Flange Three-Way Ball Valve is widely used in industrial systems requiring automatic flow switching, mixing, and distribution control.
✔ Pneumatic automation for fast and reliable operation
✔ Three-way design for flexible flow switching and mixing
✔ L-port and T-port configurations available
✔ Excellent sealing performance and low leakage
✔ Compact structure with easy maintenance
✔ Suitable for industrial automation systems
✔ Wide material selection for different working conditions
✔ Customized OEM solutions available
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
