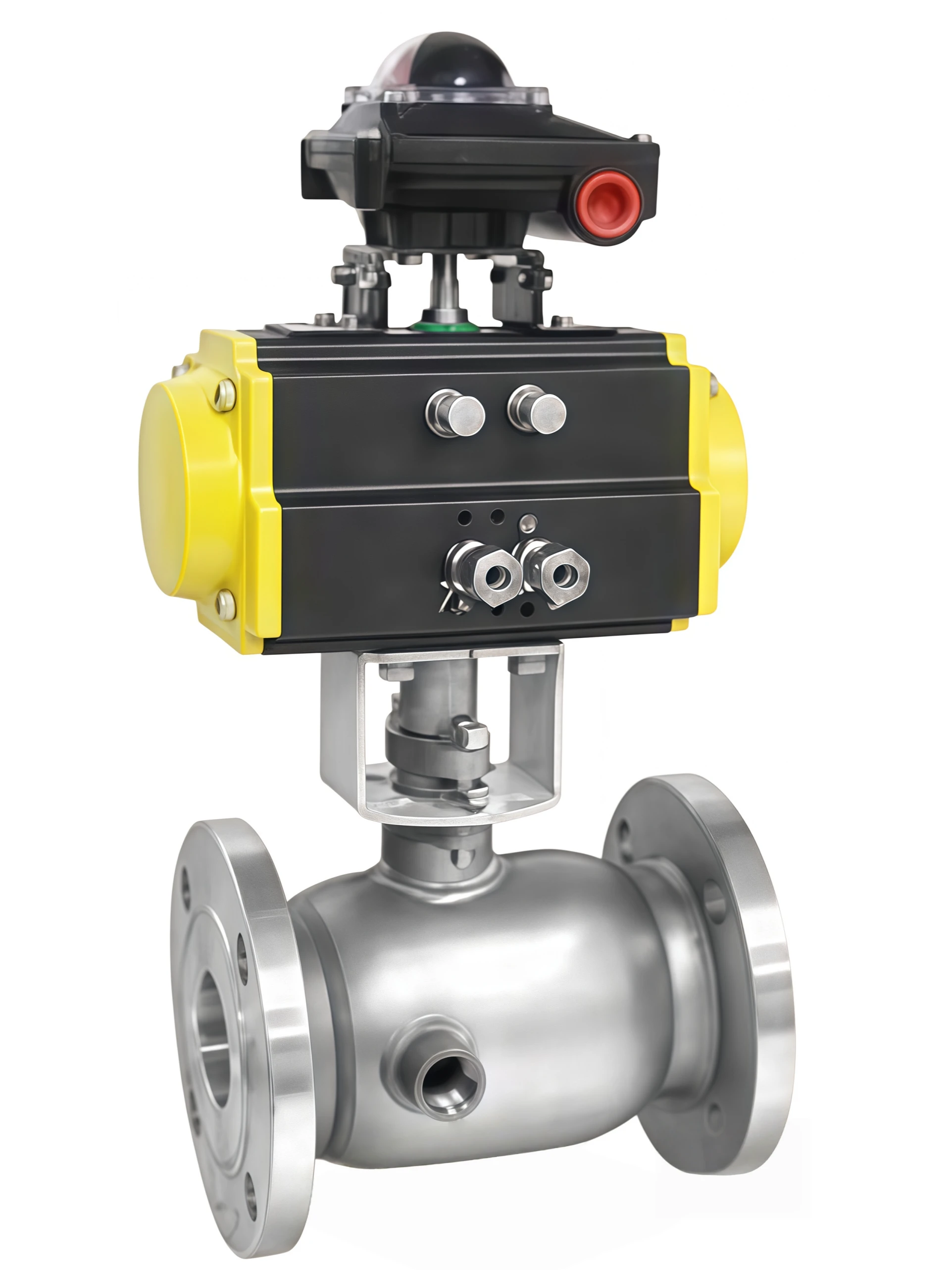

Pneumatic insulation ball valve
The Pneumatic Insulation Ball Valve is a specially designed automated valve that integrates a high-performance ball valve structure with an external insulation jacket system and pneumatic actuator. It is developed for applications requiring temperature preservation, heat loss prevention, and reliable automatic flow control.
The valve features an insulated valve body design that maintains the temperature of the medium inside the pipeline, preventing solidification, crystallization, condensation, or viscosity increase during transportation. It is widely used for controlling high-viscosity fluids, thermal oil, asphalt, chemical liquids, molten materials, and other temperature-sensitive media.
Equipped with a pneumatic actuator, the valve provides fast response, remote operation, and stable automation performance. The optimized sealing structure ensures excellent shut-off capability, low operating torque, and long service life under demanding industrial conditions.
Pneumatic insulation ball valve
We provide professional OEM manufacturing and customized solutions according to customer application requirements, including:
Our Pneumatic Insulation Ball Valves are manufactured under strict quality management systems and comply with international valve standards, including:
Parameter Specifications
| Parameter | Specification |
|---|---|
| Product Name | Pneumatic Insulation Ball Valve |
| Valve Type | Insulated Ball Valve with Pneumatic Actuator |
| Valve Structure | Floating Ball / Trunnion Mounted Ball |
| Nominal Size | DN15 – DN600 (Customized Available) |
| Pressure Rating | PN16 – PN420 / Class 150 – Class 2500 |
| Connection Type | Flanged, Butt Weld, Threaded, Socket Weld |
| Valve Body Material | Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel |
| Ball Material | Stainless Steel / Alloy Materials |
| Stem Material | Stainless Steel / High Performance Alloy |
| Seat Material | PTFE, RPTFE, PEEK, Metal Seat, Graphite |
| Actuator Type | Pneumatic Double Acting / Single Acting |
| Control Mode | On-Off Control / Automatic Control |
| Insulation Type | Steam Jacket / Thermal Oil Jacket / Electric Heating Jacket |
| Heat Preservation Method | External Heating and Thermal Insulation |
| Operating Temperature | -196°C to +500°C (Customized Available) |
| Applicable Media | Asphalt, Hot Oil, Chemical Fluid, Molten Material, High Viscosity Media |
| Leakage Class | ANSI Class V / VI / Bubble Tight Shut-off |
| Air Supply Pressure | 3 – 8 Bar |
| Design Standard | ASME B16.34 / API 6D / API 608 |
| Pressure Test Standard | API 598 / EN 12266 |
| Flange Standard | ANSI B16.5, EN1092, JIS, GB/T |
| Anti-Static Design | Available |
| Blowout Proof Stem | Available |
| Fire Safe Design | Optional |
| Corrosion Protection | Coating / Special Surface Treatment |
| Automation Accessories | Positioner, Solenoid Valve, Limit Switch, Controller |
| Certification | ISO, API, CE, SIL, Fire Safe, Fugitive Emission |
| OEM Service | Available |
Industry Applications
✔ Excellent thermal insulation performance
✔ Prevents media solidification and crystallization
✔ Suitable for high-viscosity and temperature-sensitive fluids
✔ Fast pneumatic automation operation
✔ Reliable sealing performance
✔ Low maintenance requirements
✔ Wide range of material options
✔ Customized heating and insulation solutions
✔ Long service life under harsh conditions
✔ Compliance with international valve standards
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
