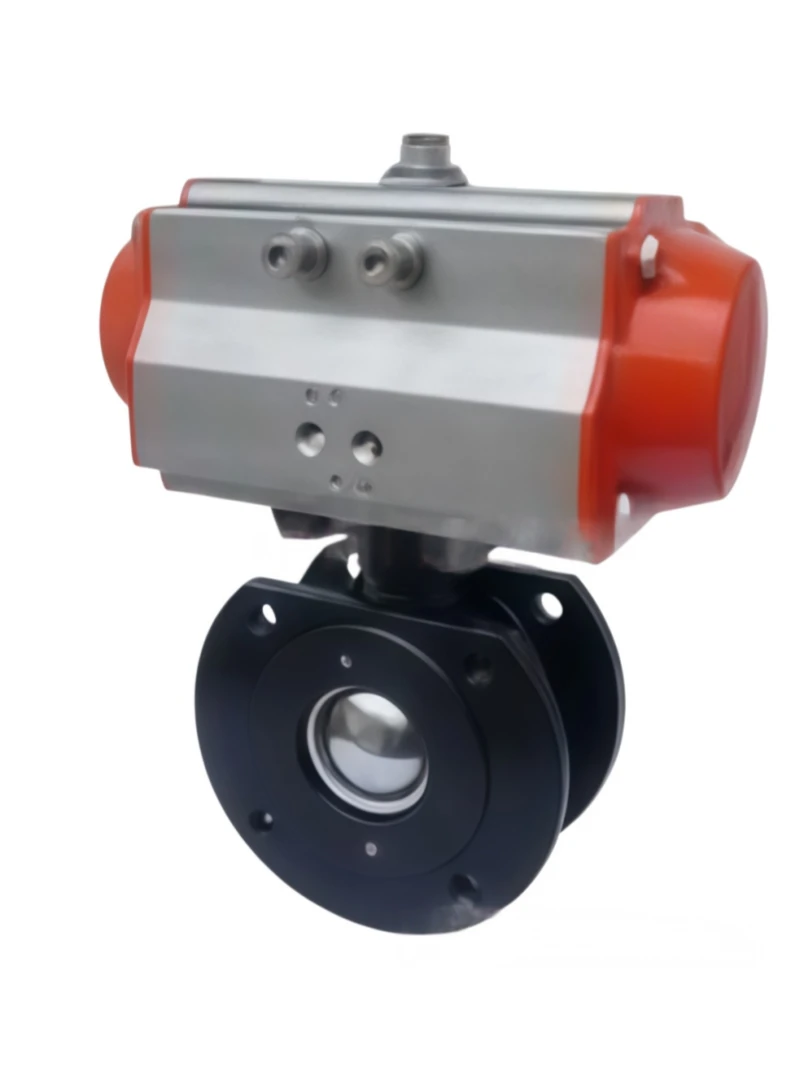

Pneumatic thin ball valve
The Pneumatic Thin Ball Valve is a compact, lightweight, and high-performance flow control solution designed for applications requiring quick shut-off, reliable sealing, and space-saving installation. Equipped with a pneumatic actuator, this valve provides fast and precise automatic operation, making it ideal for industrial automation systems and process control applications.
The thin wafer-style design reduces installation space and overall weight while maintaining excellent flow performance and durability. The valve features a corrosion-resistant body, precision-machined ball structure, and reliable sealing system to ensure long service life under various operating conditions.
With advanced manufacturing capabilities, we provide comprehensive OEM and customization services, including valve design modification, material selection, actuator matching, connection standards, surface treatment, logo marking, and special requirements according to customer specifications.
Our valves are manufactured under strict quality control systems and comply with international valve industry standards. We can provide complete certifications and inspection documents, including ISO quality management certification, CE certification, API-related standards, material certificates, pressure test reports, and other industry-required certifications according to market requirements.

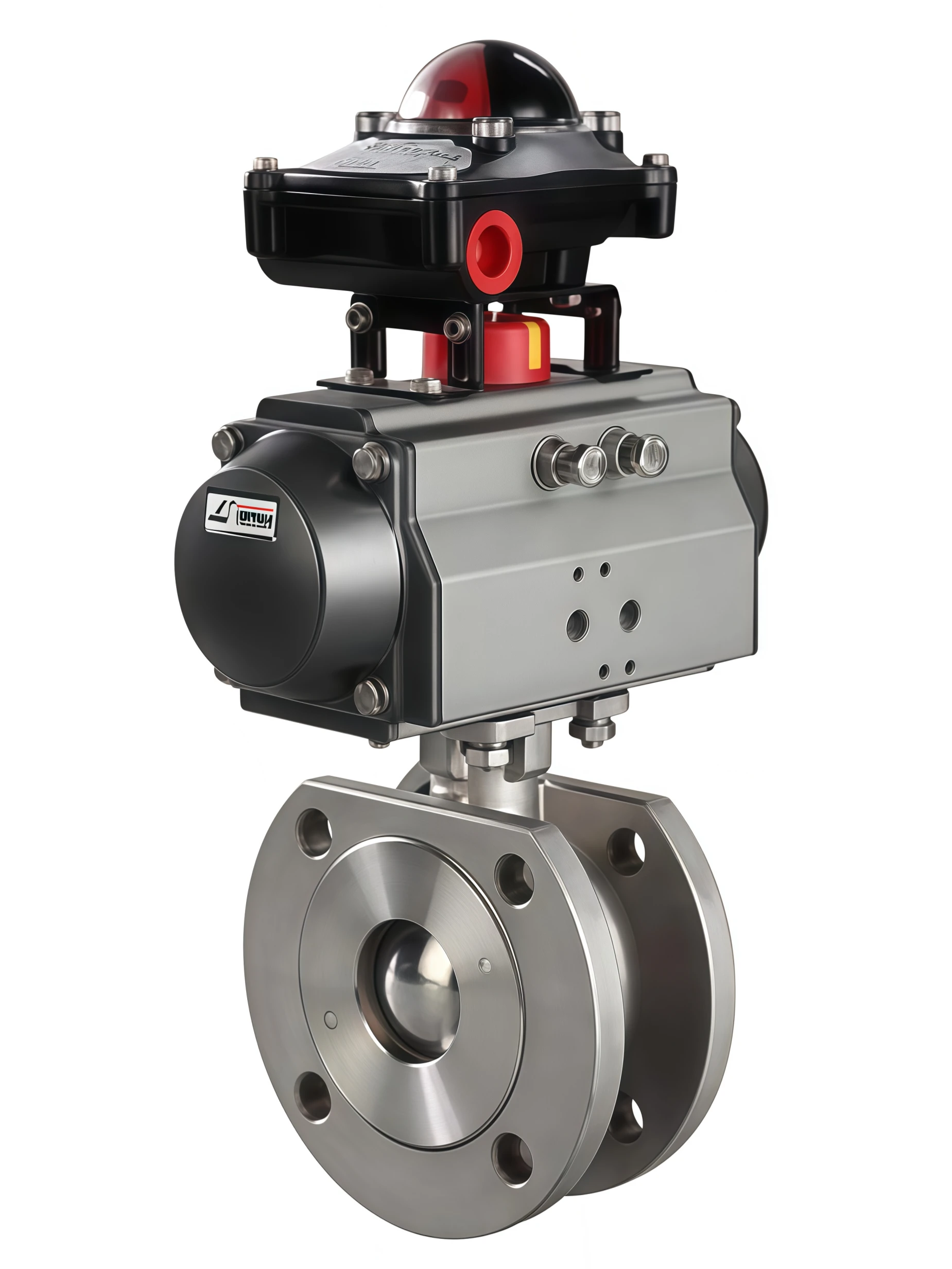

Pneumatic thin ball valve
We offer professional OEM/ODM solutions to meet different industrial requirements:
Parameter Specifications
| Parameter | Specification |
|---|---|
| Product Name | Pneumatic Thin Ball Valve |
| Valve Type | Pneumatic Actuated Thin Ball Valve |
| Operation Type | Pneumatic Automatic Control |
| Valve Structure | Thin Wafer / Compact Ball Valve Design |
| Nominal Size | DN15–DN200 (1/2"–8") or Customized |
| Pressure Rating | PN10 / PN16 / Class 150 (Customized) |
| Body Material | Stainless Steel SS304 / SS316, Carbon Steel, PVC, PP, Customized |
| Ball Material | Stainless Steel SS304 / SS316 |
| Seat Material | PTFE, RPTFE, EPDM, NBR, Customized |
| Stem Material | Stainless Steel |
| Actuator Type | Pneumatic Double Acting / Single Acting |
| Air Supply Pressure | 4–8 bar |
| Connection Type | Wafer, Flanged, Threaded, Customized |
| Control Mode | ON/OFF Control, Modulating Control |
| Applicable Temperature | -20°C to +180°C (Depending on Material Selection) |
| Media | Water, Air, Gas, Oil, Steam, Chemical Fluids, etc. |
| Leakage Standard | Bubble Tight Shut-Off |
| Valve Rotation Angle | 90° Rotation |
| Flow Direction | Bidirectional |
| Installation Position | Any Position |
| Testing Standard | API 598 / EN 12266 / Customized |
| Certification | ISO, CE, API Standards, Material Certificate, Pressure Test Report |
| OEM Service | Available |
| Customization | Size, Material, Connection, Actuator, Accessories, Logo |
Industry Applications
The Pneumatic Thin Ball Valve is widely used in various industries requiring automatic flow control and reliable shut-off solutions.
Pneumatic Thin Ball Valve Advantages
✔ Compact and lightweight design
✔ Fast pneumatic operation
✔ Excellent sealing performance
✔ Long service life
✔ Easy installation and maintenance
✔ Wide material selection
✔ Suitable for automated control systems
✔ Professional OEM customization available
✔ Complete industry certifications and quality documentation provided
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
