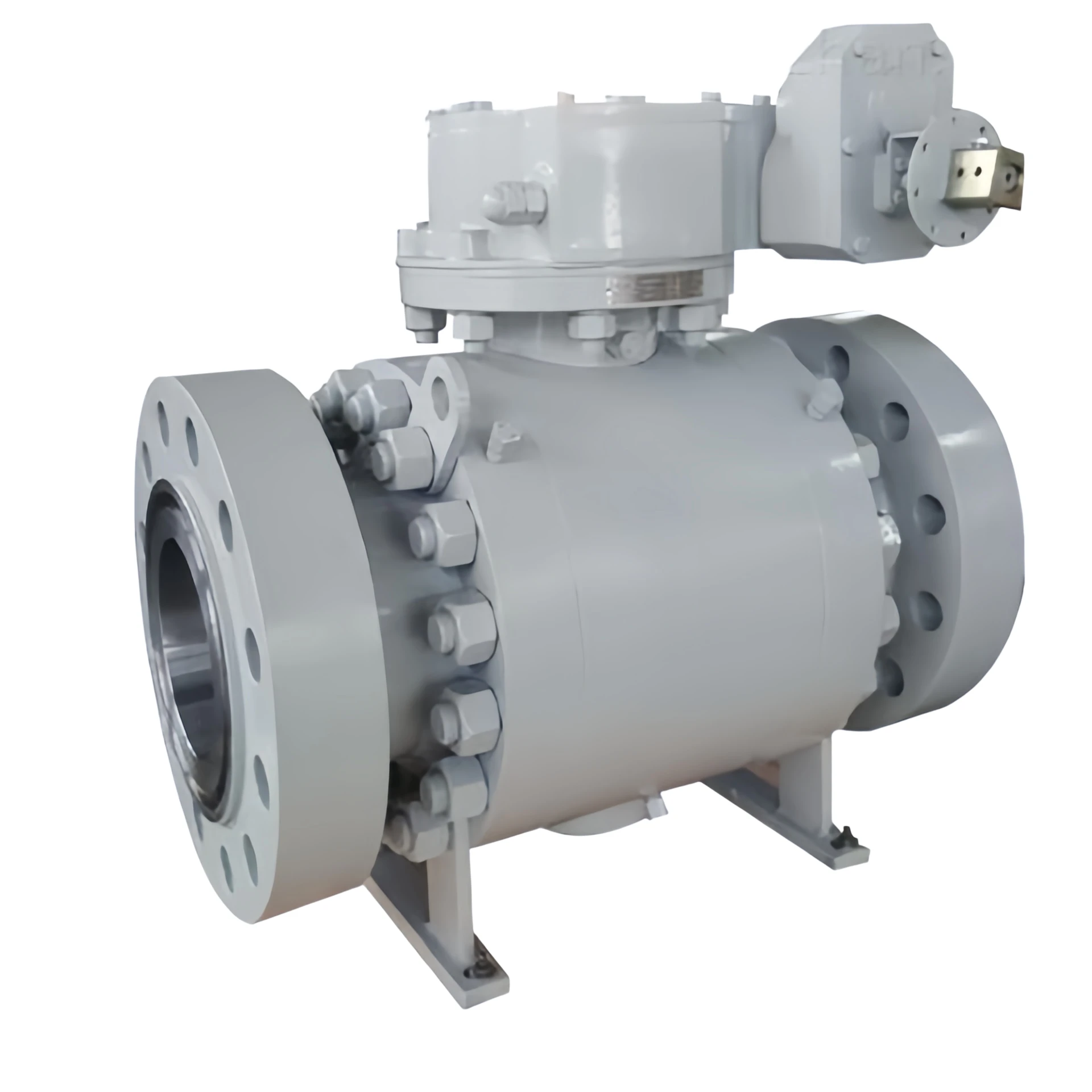

Q41F Forged steel ball valve
The Forged Steel Ball Valve is manufactured from premium forged steel materials to provide superior mechanical strength and durability. Designed for high-pressure and high-temperature service, it features precision-machined ball and seat components that ensure bubble-tight shutoff, low operating torque, and dependable performance in demanding industrial environments.
Forged steel ball valve
The Forged Steel Ball Valve is engineered for severe service conditions where safety, reliability, and durability are essential. The forged body construction delivers enhanced structural integrity compared to cast valves, making it suitable for high-pressure pipelines and critical process systems.
Available in floating ball and trunnion-mounted designs, the valve provides excellent sealing performance and smooth operation. It supports manual, pneumatic, electric, and gear-operated configurations to meet diverse industrial requirements. The valve is widely used in oil & gas, petrochemical, power generation, chemical processing, and LNG applications.
Our Forged Steel Ball Valves are manufactured and tested according to international standards:
Forged steel ball valve
| Parameter | Specification |
|---|---|
| Product Name | Forged Steel Ball Valve |
| Valve Type | Floating Ball Valve / Trunnion Ball Valve |
| Nominal Size | DN15 – DN1200 |
| Pressure Rating | PN16 – PN420 |
| ANSI Class | Class 150 – Class 2500 |
| Body Material | A105, F304, F316, F11, F22, Duplex |
| Ball Material | SS304, SS316, Chrome-Plated, Inconel |
| Seat Material | PTFE, RPTFE, PEEK, Metal Seat |
| Connection Type | NPT, SW, BW, RF, RTJ |
| Operation | Manual, Gear, Pneumatic, Electric |
| Temperature Range | -196°C to +550°C |
| Leakage Standard | API 598 / ISO 5208 |
| Design Standard | API 6D, API 608, ASME B16.34 |
| Applicable Media | Oil, Gas, Steam, Water, Chemicals, LNG |
Forged steel ball valve
Used in upstream drilling, pipeline transportation, storage terminals, and refinery systems.
Suitable for hydrocarbon processing, chemical transfer, and process control systems.
Applied in boiler systems, steam pipelines, and cooling water networks.
Ideal for liquefied natural gas storage, transportation, and cryogenic applications.
Handles corrosive chemicals, solvents, acids, and specialty process fluids.
Provides reliable flow isolation and process control for critical production systems.
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
