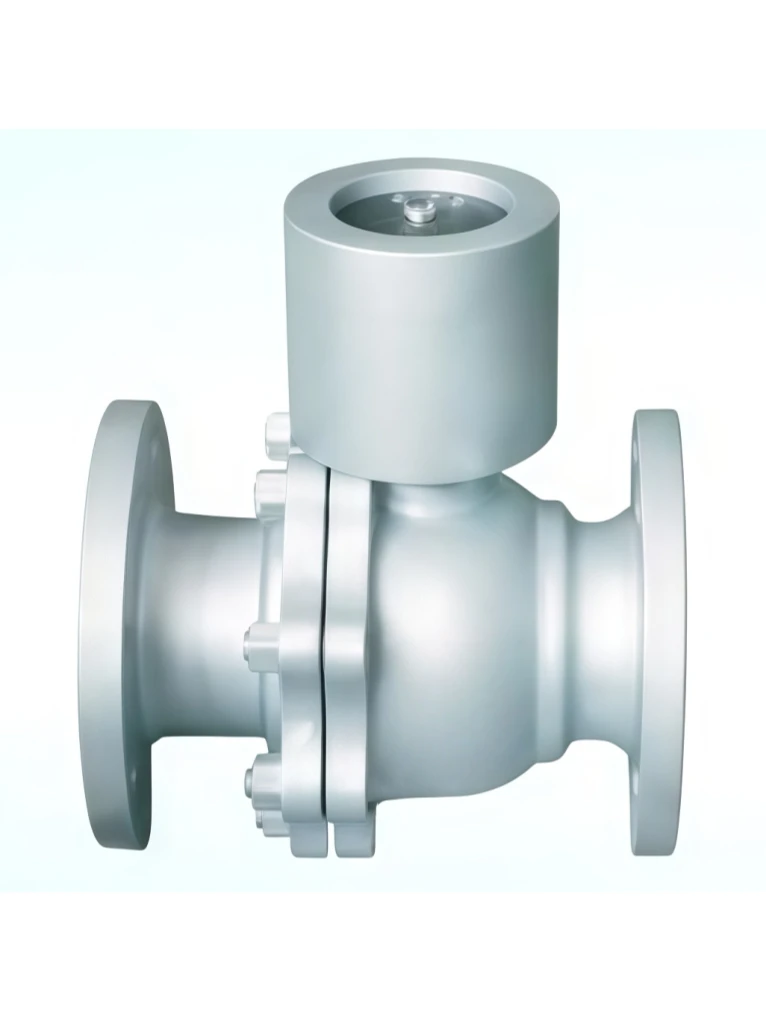

Security Ball Valve
The Security Ball Valve is a high-reliability industrial valve designed to provide safe, secure, and efficient fluid control in critical pipeline systems. Featuring a robust ball structure, advanced sealing technology, and anti-tampering design options, it ensures reliable shut-off performance and long-term operational safety.
Security Ball Valves are widely used in applications where safety, leakage prevention, unauthorized operation protection, and system reliability are essential. The valve can be equipped with locking devices, anti-static structures, fire-safe designs, and emergency shut-off functions to meet strict industrial safety requirements.
Manufactured with premium materials and precision machining technology, the Security Ball Valve delivers excellent corrosion resistance, high pressure capability, low operating torque, and dependable sealing performance under harsh working conditions.
Security Ball Valve
We provide professional OEM manufacturing and customized solutions according to customer requirements, including:
Our Security Ball Valves are manufactured under strict quality control systems and can meet international valve industry standards, including:
Parameter Specifications
| Parameter | Specification |
|---|---|
| Product Name | Security Ball Valve |
| Valve Type | Security Ball Valve / Lockable Ball Valve |
| Valve Structure | Floating Ball / Trunnion Mounted Ball |
| Nominal Size | DN15 – DN600 (Customized Available) |
| Pressure Rating | PN10 – PN420 / Class 150 – Class 2500 |
| Connection Type | Flanged, Threaded, Socket Weld, Butt Weld |
| Valve Body Material | Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel |
| Ball Material | Stainless Steel, Alloy Steel, Hardened Materials |
| Stem Material | Stainless Steel / Customized Alloy Materials |
| Seat Material | PTFE, RPTFE, PEEK, Metal Seat, Customized |
| Operation Type | Manual, Pneumatic, Electric, Hydraulic |
| Security Function | Locking Device / Anti-Tamper Protection |
| Design Standard | ASME B16.34 / API 6D / API 608 |
| Pressure Test Standard | API 598 / EN 12266 |
| Leakage Class | ANSI Class VI / Bubble Tight Shut-off (Optional) |
| Operating Temperature | -196°C to +500°C (Depending on Material Selection) |
| Applicable Media | Oil, Gas, Water, Steam, Chemicals, Hazardous Fluids |
| Fire Safe Design | API 607 / ISO 10497 (Optional) |
| Anti-Static Design | Available |
| Anti-Blowout Stem | Available |
| Corrosion Protection | Coating, Plating, Special Surface Treatment |
| Actuator Options | Manual Gearbox, Pneumatic, Electric, Hydraulic |
| Certification | ISO, API, CE, SIL, Fire Safe, Fugitive Emission |
| OEM Service | Available |
Industry Applications
✔ High safety and reliability
✔ Anti-tamper and locking protection
✔ Excellent sealing performance
✔ Fire-safe and anti-static design options
✔ Suitable for hazardous environments
✔ Long service life with low maintenance
✔ Multiple material and actuator configurations
✔ Full OEM customization capability
✔ Compliance with international valve standards
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
