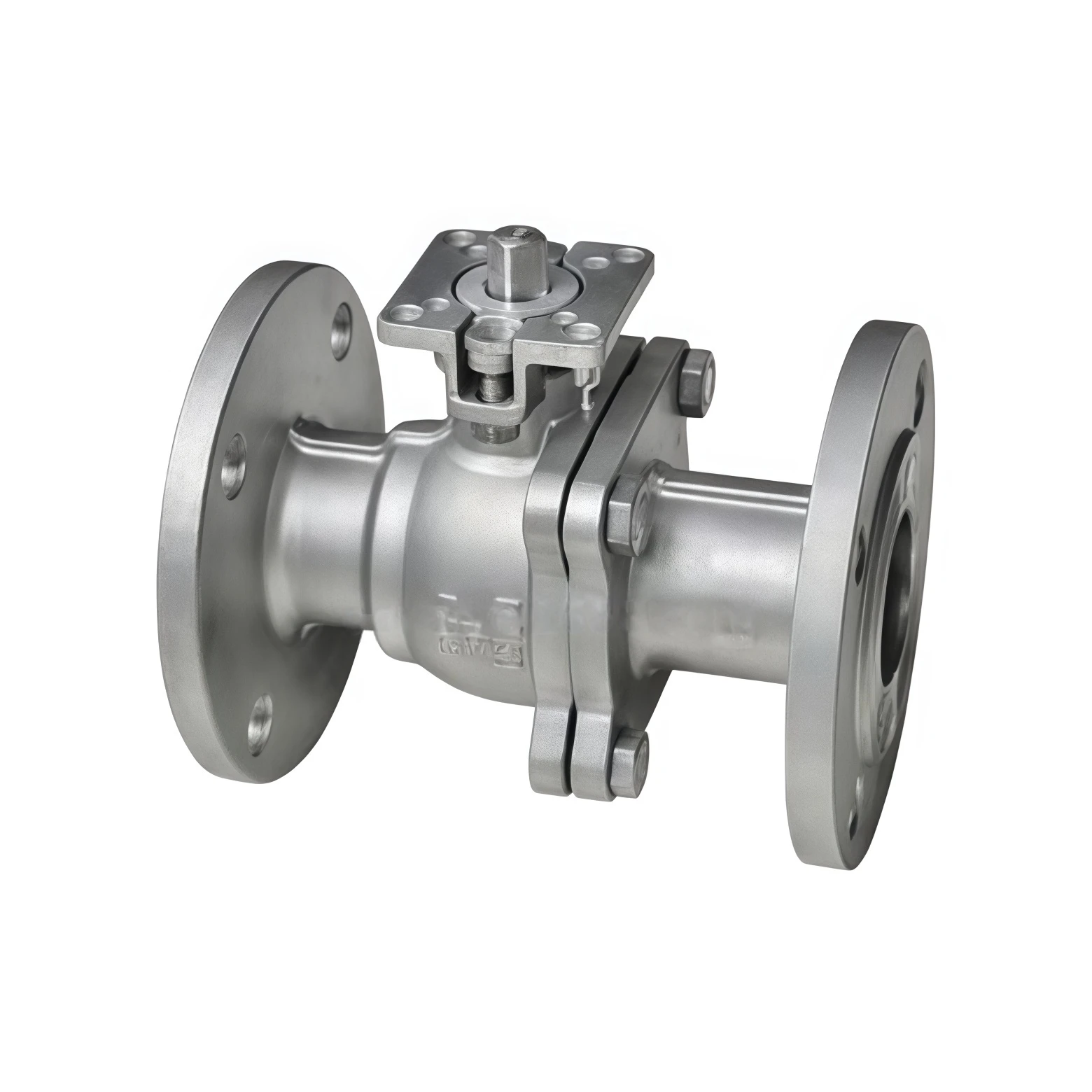

Stainless steel ball valve
The Stainless Steel Ball Valve utilizes a precision-machined rotating ball to provide quick opening and closing with minimal pressure loss. Manufactured from premium stainless steel materials, it offers superior corrosion resistance, excellent sealing performance, high durability, and dependable operation in water, oil, gas, steam, and chemical applications.
Stainless steel ball valve
The Stainless Steel Ball Valve is a quarter-turn valve designed for efficient flow control and reliable shut-off in industrial pipeline systems. Featuring a full-port or reduced-port design, the valve ensures smooth flow characteristics, low pressure drop, and bubble-tight sealing performance.
Constructed from high-quality stainless steel such as SS304, SS316, and SS316L, it provides exceptional resistance to corrosion, abrasion, and high temperatures. The valve is widely used in chemical processing, oil & gas, water treatment, food processing, pharmaceutical manufacturing, and industrial automation systems.
As a professional valve manufacturer, we provide comprehensive OEM and ODM solutions to meet customer requirements worldwide.
Our Stainless Steel Ball Valves are manufactured under strict quality control systems and comply with international standards:
Stainless steel ball valve
| Parameter | Specification |
|---|---|
| Product Name | Stainless Steel Ball Valve |
| Valve Type | Floating Ball Valve / Trunnion Ball Valve |
| Size Range | DN15 – DN1200 |
| Pressure Rating | PN10 – PN420 / Class 150–2500 |
| Body Material | SS304, SS316, SS316L, Duplex SS |
| Ball Material | Stainless Steel |
| Seat Material | PTFE, RPTFE, PEEK, Metal Seat |
| Stem Material | Stainless Steel |
| Connection Type | Threaded, Flanged, Welded, Clamp |
| Operation | Lever, Gear, Pneumatic, Electric |
| Operating Temperature | -196°C to +550°C |
| Applicable Medium | Water, Oil, Gas, Steam, Chemicals |
| Design Standard | API 6D, API 608, ISO 17292 |
| Leakage Class | ANSI/FCI 70-2 Class VI |
| Bore Type | Full Port / Reduced Port |
Stainless steel ball valve
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
