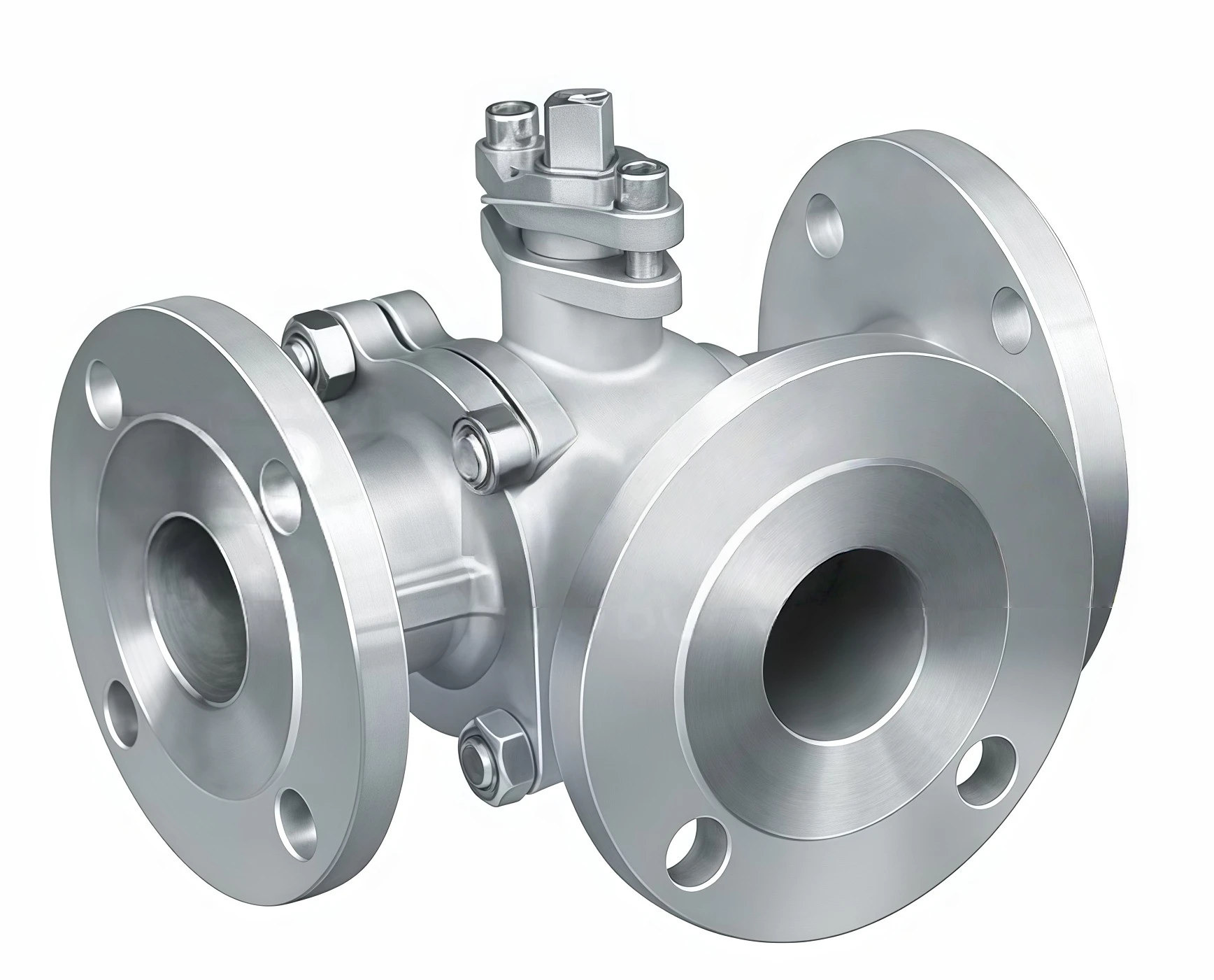

The 3-way ball valve
The 3-Way Ball Valve is designed for flow distribution, mixing, and directional control in industrial piping systems. Available in L-port and T-port configurations, it provides versatile flow paths, excellent sealing performance, low operating torque, and long service life. Suitable for liquids, gases, steam, and chemical media.
The 3-way ball valve
The 3-Way Ball Valve is a multifunctional flow control valve that allows a single valve to perform diversion, convergence, and switching operations within pipeline systems. Its precision-machined ball design ensures smooth operation and reliable sealing under various working conditions.
Available in floating ball and trunnion-mounted designs, the valve can be manufactured with L-Port or T-Port flow patterns to meet different process requirements. Constructed from high-quality carbon steel, stainless steel, duplex steel, and alloy materials, it is widely used in industrial automation, chemical processing, water treatment, pharmaceutical production, and oil & gas facilities.
Our 3-Way Ball Valves are manufactured and tested according to international standards:
The 3-way ball valve
| Parameter | Specification |
|---|---|
| Product Name | 3-Way Ball Valve |
| Valve Type | L-Port / T-Port Ball Valve |
| Nominal Size | DN15 – DN600 |
| Pressure Rating | PN16 – PN420 |
| ANSI Class | Class 150 – Class 2500 |
| Body Material | WCB, CF8, CF8M, Duplex, Alloy Steel |
| Ball Material | SS304, SS316, Chrome-Plated, Alloy |
| Seat Material | PTFE, RPTFE, PEEK, Metal Seat |
| Port Type | L-Port / T-Port |
| Connection Type | Flanged, Threaded, BW, SW, Clamp |
| Operation | Manual, Gear, Pneumatic, Electric |
| Temperature Range | -196°C to +550°C |
| Leakage Standard | API 598 / ISO 5208 |
| Design Standard | API 6D, API 608, ASME B16.34 |
| Applicable Media | Water, Oil, Gas, Steam, Chemicals |
The 3-way ball valve
Used for flow diversion, switching, and blending operations in pipeline systems and processing facilities.
Provides reliable media distribution and mixing for chemical manufacturing processes.
Suitable for water distribution networks, filtration systems, and treatment plants.
Ensures precise fluid routing and sanitary process control.
Used in liquid transfer, ingredient mixing, and automated production systems.
Integrated with pneumatic and electric actuators for intelligent flow control applications.
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
