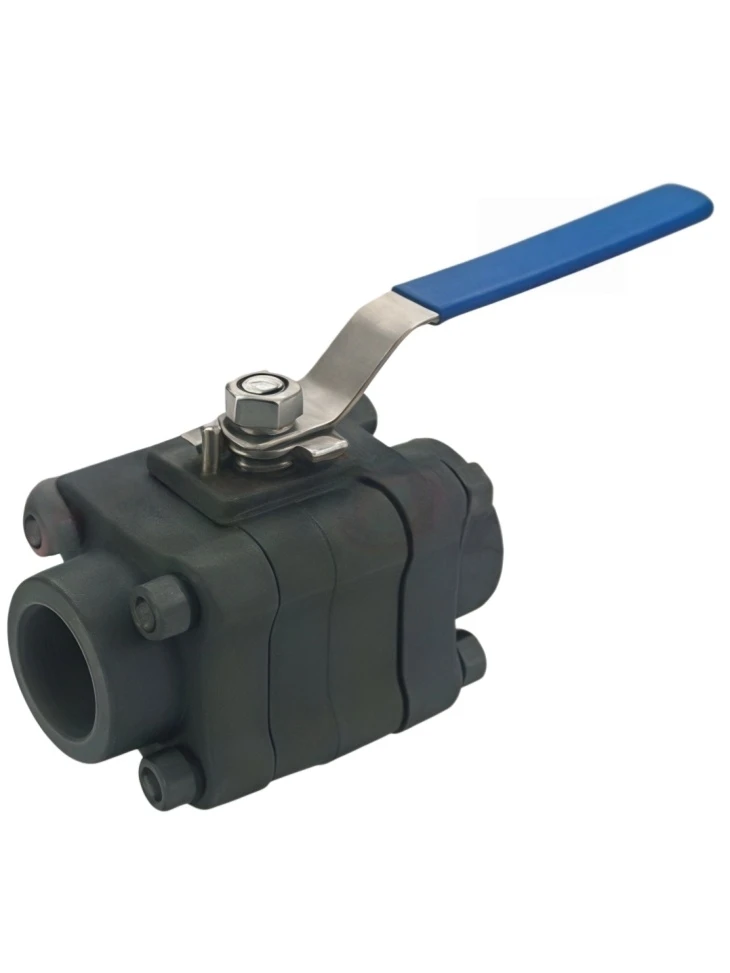

Threaded ball valve ball valve
The Threaded Ball Valve is a compact and reliable quarter-turn valve designed for efficient shut-off and flow control in various piping systems. Featuring a threaded connection design, this valve provides easy installation, excellent sealing performance, and convenient maintenance, making it an ideal choice for residential, commercial, and industrial applications.
Manufactured with high-quality materials and precision machining technology, the threaded ball valve delivers smooth operation, low torque performance, corrosion resistance, and long service life. The full-port design ensures minimal pressure loss and efficient media flow, while the durable sealing structure provides reliable leak prevention.
Our company offers comprehensive OEM and customization services, including valve size, materials, thread standards, handle design, sealing materials, surface treatment, logo marking, and packaging solutions. With a complete valve industry certification system and strict quality inspection process, our products meet international standards for safety, durability, and performance.
Threaded ball valve
We provide professional OEM/ODM manufacturing solutions to meet different customer requirements:
Available materials:
Customized components:
Support for various connection standards:
Connection options:
Complete valve industry certification system:
Parameter Specifications
| Parameter | Specification |
|---|---|
| Product Name | Threaded Ball Valve |
| Valve Type | Ball Valve |
| Design Type | Quarter Turn Ball Valve |
| Connection Type | Threaded Connection |
| Application Medium | Water, Oil, Gas, Air, Chemical Fluids |
| Body Material | Brass / Stainless Steel / Carbon Steel / Bronze |
| Ball Material | Stainless Steel / Brass / Customized |
| Stem Material | Brass / Stainless Steel |
| Seat Material | PTFE / RPTFE / POM / Customized |
| Seal Material | NBR / EPDM / Viton / Customized |
| Nominal Size | DN8 – DN100 (Customized Available) |
| Pressure Rating | PN10 / PN16 / PN25 / Class 150-600 |
| Working Pressure | Up to 6.4MPa (According to Model) |
| Working Temperature | -20°C to +180°C (According to Material Selection) |
| Connection Standard | BSP / BSPT / NPT / Metric Thread |
| Port Type | Full Port / Reduced Port |
| Operation Method | Manual Handle / Actuator Optional |
| Flow Control | On-Off Control |
| Sealing Performance | Bubble Tight Shut-Off |
| Leakage Standard | ISO 5208 / API 598 |
| Surface Treatment | Nickel Plating / Chrome Plating / Polishing / Customized |
| Installation Position | Any Direction Installation |
| Testing Standard | Pressure Test, Leakage Test, Functional Test |
| OEM Service | Size, Material, Logo, Packaging & Design Customization |
| Certifications | ISO / CE / API / International Valve Industry Standards |
Industry Applications
The Threaded Ball Valve is widely used in industries requiring compact design, quick operation, and reliable flow control:
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
