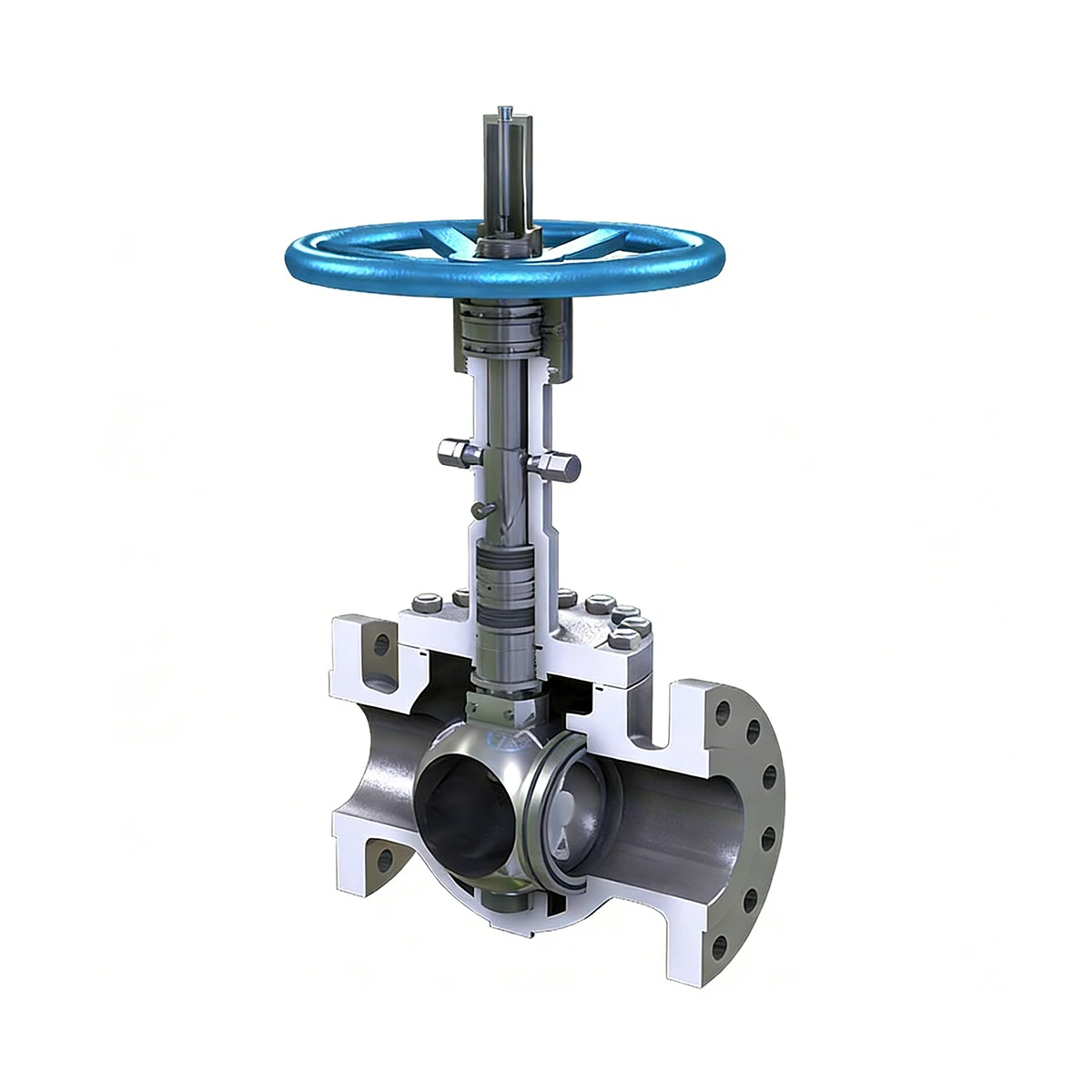

Track Ball Valve
Nominal Diameter: 2" ~ 12"
Nominal Pressure: 150 ~ 1500 lb
Mediums: Water, oil, gas, steam, chemicals
Temperature Range: ≤ 250°C
Track Ball Valve
The Track Ball Valve is a high-performance quarter-turn valve designed for demanding applications requiring tight shut-off, low operating torque, and extended service life. Its unique cam-action and track-guided ball design allows the ball to move away from the seat before rotation, minimizing seat wear and ensuring bubble-tight sealing. This design makes it particularly suitable for high-pressure, high-temperature, and abrasive media applications.
We provide comprehensive OEM and ODM manufacturing services to meet various industrial requirements:
Our Track Ball Valves can be manufactured and tested in accordance with international standards, including:
Parameter Specifications
| Parameter | Specification / Range |
|---|---|
| Valve Type | Track Ball Valve |
| Body Material | ASTM A105, LF2, F11, F22, F304, F316, F51, F53 |
| Ball Material | Stainless Steel, Duplex Stainless Steel, Alloy Steel |
| Seat Material | PTFE, RPTFE, PEEK, Metal Seat |
| Size Range | NPS 2" – 36" (DN50 – DN900) |
| Pressure Rating | Class 150 – Class 2500 |
| Connection Type | Flanged, RTJ, Butt Weld, Hub End |
| Bore Type | Full Port / Reduced Port |
| Temperature Range | -196°C to +650°C |
| Leakage Class | ANSI/FCI 70-2 Class VI |
| Operation | Lever, Gearbox, Pneumatic, Electric, Hydraulic |
| Fire Safe Design | API 607 / API 6FA |
| Anti-Static Design | Available |
| Testing Standard | API 598, ISO 5208 |
| Applicable Media | Oil, Gas, Steam, Water, Chemicals, Slurry |
Industry Applications
Track Ball Valves are widely used in critical isolation and severe-service applications where conventional ball valves may experience excessive seat wear or sealing issues.
Key Advantages:
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
