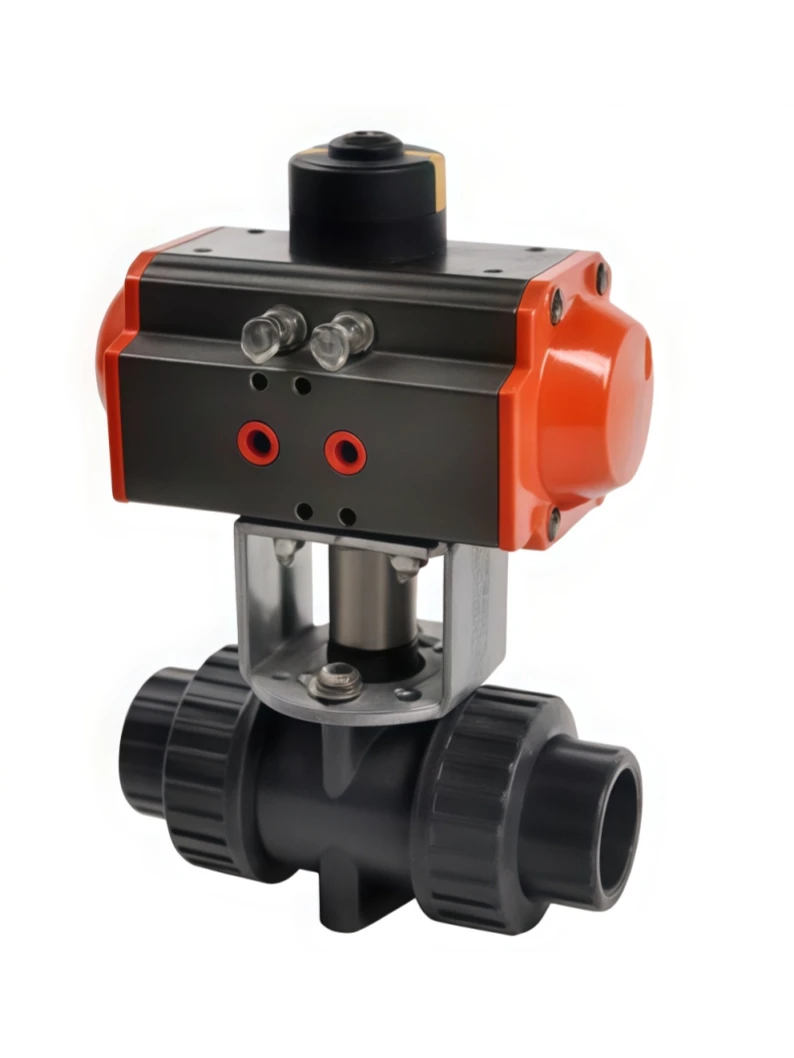

UPVC pneumatic plastic ball valve
The UPVC Pneumatic Plastic Ball Valve is a lightweight, corrosion-resistant automated valve designed for fluid control applications requiring reliable shut-off, chemical resistance, and easy operation. Made from high-quality UPVC (Unplasticized Polyvinyl Chloride) material, the valve provides excellent resistance against acids, alkalis, salts, and various corrosive chemicals.
Equipped with a pneumatic actuator, the valve enables fast and automatic operation, making it suitable for remote control and industrial automation systems. The compact structure, low maintenance requirements, excellent sealing performance, and long service life make it an ideal choice for chemical processing, water treatment, environmental protection, and industrial fluid transportation systems.
Compared with traditional metal valves, the UPVC Pneumatic Ball Valve offers advantages such as lightweight construction, corrosion resistance, cost efficiency, and easy installation. It is especially suitable for applications where metal valves may suffer from corrosion or chemical attack.

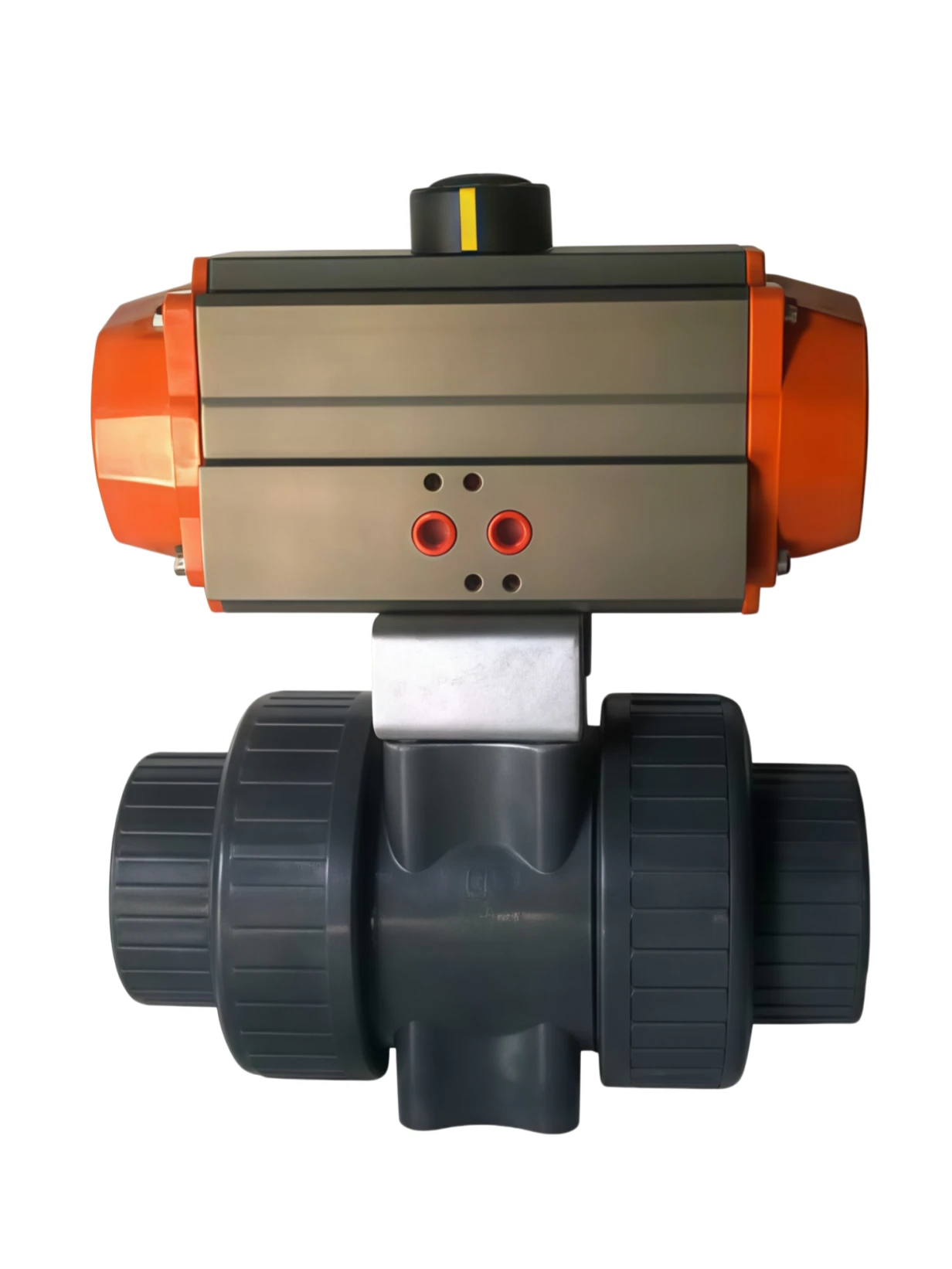

UPVC pneumatic plastic ball valve
We provide professional OEM/ODM manufacturing services and customized solutions according to customer requirements and application conditions.
Our UPVC Pneumatic Plastic Ball Valves are manufactured under strict quality control systems and comply with international standards.
Parameter Specifications
| Parameter | Specification |
|---|---|
| Product Name | UPVC Pneumatic Plastic Ball Valve |
| Valve Type | Pneumatic Actuated Plastic Ball Valve |
| Body Material | UPVC (Unplasticized Polyvinyl Chloride) |
| Valve Structure | Two-piece / Three-piece Ball Valve |
| Operation Type | Pneumatic Automatic Operation |
| Nominal Size | DN15 – DN200 (Customized Available) |
| Pressure Rating | PN10 – PN16 / Class 150 |
| Connection Type | Socket, Threaded, Flanged, Union Connection |
| Design Standard | DIN / ASTM / Industrial Plastic Valve Standards |
| Ball Material | UPVC / Customized Plastic Materials |
| Stem Material | UPVC / Stainless Steel Reinforced Stem |
| Seat Material | PTFE / EPDM / FPM |
| Seal Material | EPDM, FPM, PTFE |
| Actuator Type | Double Acting / Single Acting Pneumatic Actuator |
| Air Supply Pressure | 0.4 – 0.8 MPa |
| Working Temperature | 0°C to +60°C (Depending on Medium) |
| Working Medium | Water, Acid, Alkali, Chemical Fluids, Industrial Liquids |
| Flow Direction | Bidirectional |
| Leakage Standard | ISO 5208 / Industrial Plastic Valve Testing Standards |
| Corrosion Resistance | Excellent Chemical Corrosion Resistance |
| Actuator Protection Grade | IP65 / IP67 |
| Control Mode | On-Off Automatic Control |
| Installation Method | Horizontal / Vertical Installation |
| Maintenance Requirement | Low Maintenance Design |
| Service Life | Long Service Life Under Proper Conditions |
Industry Applications
The UPVC Pneumatic Plastic Ball Valve is widely used in industries requiring corrosion resistance, lightweight design, and automated fluid control.
✔ Excellent corrosion resistance against acids, alkalis, and chemicals
✔ Lightweight design for easy installation and maintenance
✔ Pneumatic automation for fast and reliable operation
✔ Low operating cost and long service life
✔ Excellent sealing performance with minimal leakage
✔ Suitable for harsh chemical environments
✔ Compatible with industrial automation control systems
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
