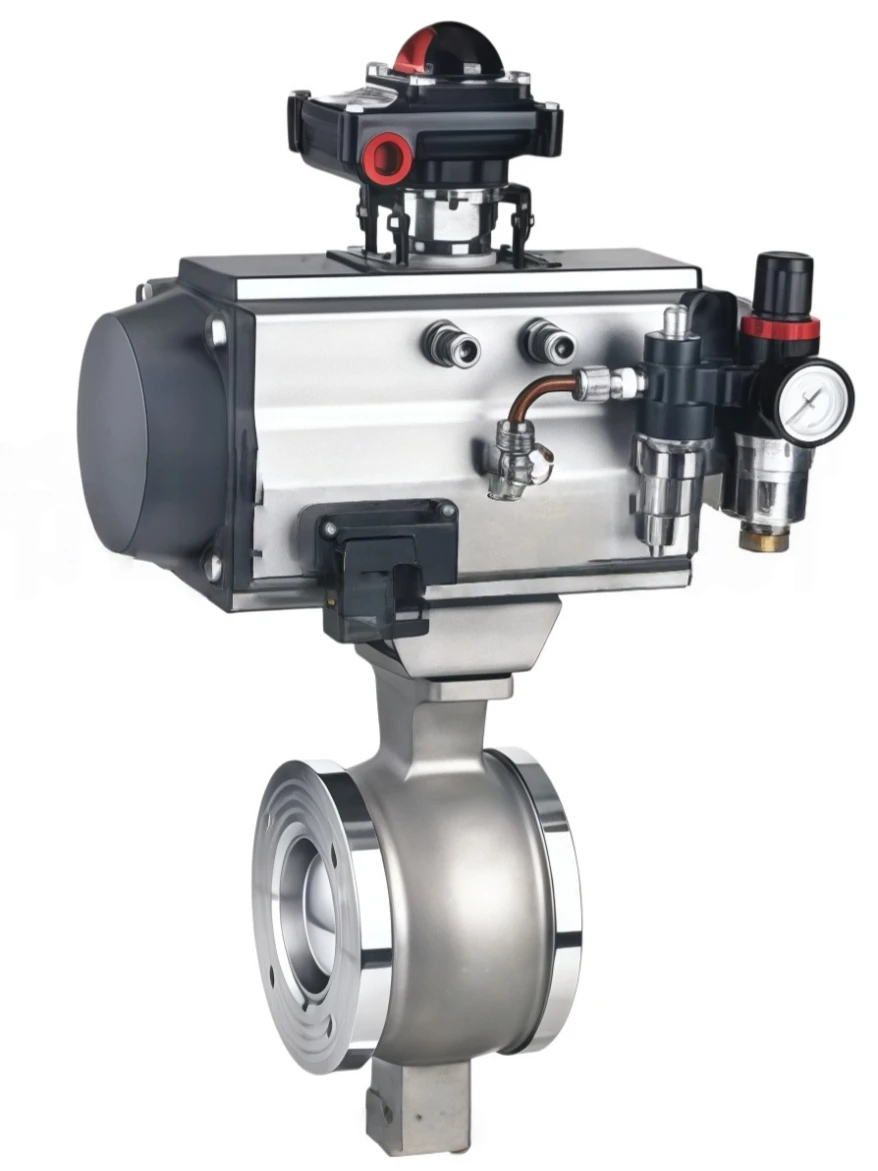

V-type ball valve
The V-Type Ball Valve is a high-performance control valve designed with a specially engineered V-shaped ball and advanced sealing technology. It provides excellent flow regulation, precise control performance, and reliable shut-off capability, making it ideal for applications requiring accurate media control.
Compared with conventional ball valves, the V-Type Ball Valve offers superior throttling performance, reduced turbulence, and improved flow stability. The unique V-port design creates a shearing effect, allowing the valve to handle challenging media such as high-viscosity fluids, slurry, fiber-containing materials, and corrosive substances.
Manufactured with high-quality materials and advanced machining processes, the valve ensures long service life, low operating torque, and excellent sealing performance under demanding industrial conditions.
V-type ball valve
We provide comprehensive OEM manufacturing and customization services to meet different industrial requirements, including:
Our valves are manufactured under strict quality control systems and comply with international valve industry standards. We provide complete certification support, including:
Parameter Specifications
| Parameter | Specification |
|---|---|
| Product Name | V-Type Ball Valve |
| Valve Type | Segment Ball Valve / V-Port Control Ball Valve |
| Nominal Size | DN15 – DN600 (Customized Available) |
| Pressure Rating | PN10 – PN420 / Class 150 – Class 2500 |
| Connection Type | Flanged, Wafer, Lug, Butt Weld, Threaded (Optional) |
| Valve Body Material | Stainless Steel, Carbon Steel, Alloy Steel, Duplex Steel, Customized |
| Ball Material | Stainless Steel, Hardened Stainless Steel, Alloy Materials |
| Seat Material | PTFE, RPTFE, PEEK, Metal Seat, Customized |
| Flow Characteristic | Equal Percentage / Linear |
| Operating Temperature | -196°C to +500°C (Depending on Material Selection) |
| Applicable Media | Liquid, Gas, Steam, Slurry, High Viscosity Media |
| Operation Type | Manual Handle, Pneumatic Actuator, Electric Actuator, Hydraulic Actuator |
| Control Accuracy | High Precision Flow Regulation |
| Leakage Class | ANSI Class IV / V / VI (Optional) |
| Pressure Test Standard | API 598 / EN 12266 |
| Design Standard | ASME B16.34 / API 6D (Optional) |
| Flange Standard | ANSI B16.5, EN1092, JIS, GB/T, Customized |
| Certification | ISO, CE, API, SIL, Fire Safe, Fugitive Emission (Optional) |
| OEM Service | Available |
Industry Applications
The V-Type Ball Valve is widely used in industries requiring precise flow control and reliable operation, including:
V-Type Ball Valve Advantages
✔ High-precision flow control
✔ Excellent sealing performance
✔ Low torque operation
✔ Long service life
✔ Suitable for difficult media
✔ Multiple material and actuator options
✔ Full OEM customization capability
✔ Compliance with international valve standards
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
