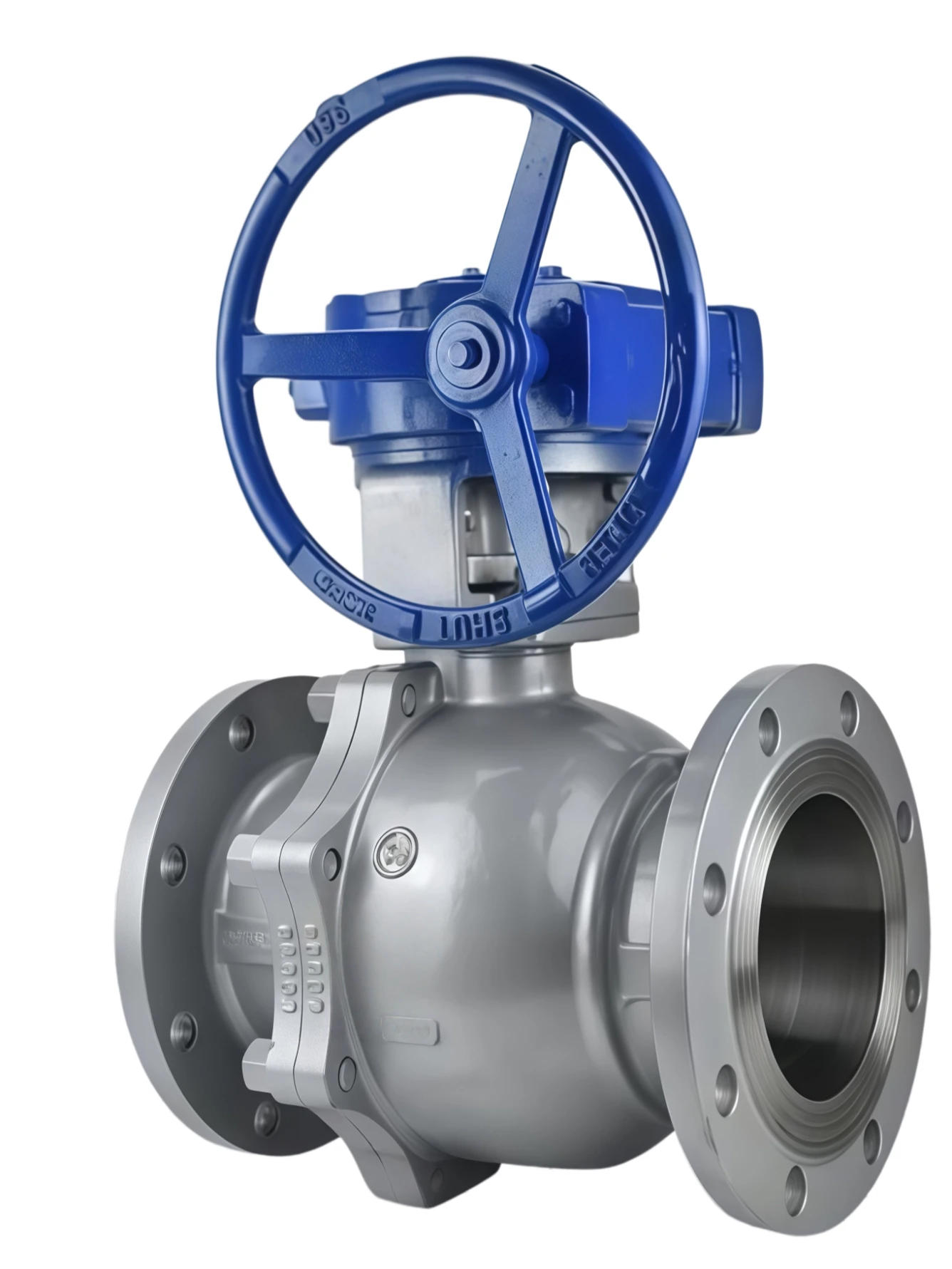

Wear resistant ball valve for coal chemical industry
The Wear Resistant Ball Valve for Coal Chemical Industry is a specially designed high-performance valve developed for harsh operating conditions in coal chemical processing systems. It is engineered to handle abrasive, high-temperature, high-pressure, and corrosive media such as coal slurry, ash slurry, gasification materials, and chemical fluids.
Featuring a wear-resistant structure, hardened sealing surfaces, and advanced anti-abrasion technology, this ball valve provides excellent durability, reliable shut-off performance, and extended service life in demanding applications. The optimized ball and seat design effectively reduces erosion, particle impact damage, and leakage risks.
Manufactured with high-quality alloy materials and strict quality control procedures, our wear resistant ball valves are widely used in coal gasification, coal-to-chemical, syngas processing, and other heavy-duty industrial systems.

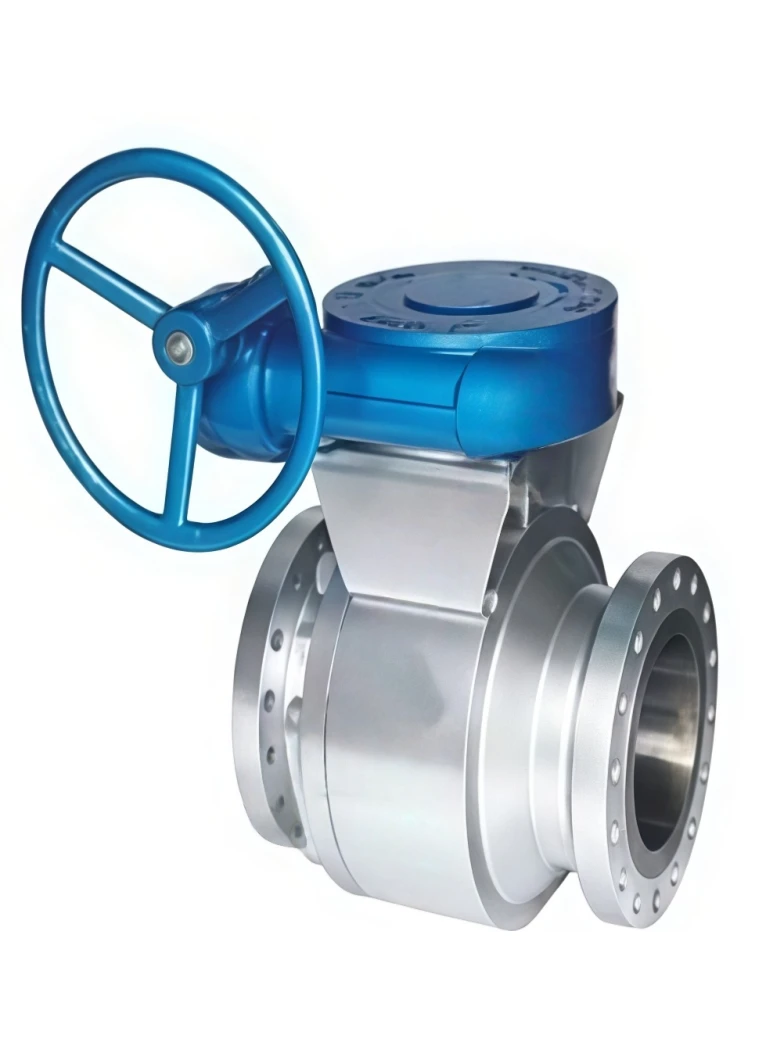

Wear resistant ball valve for coal chemical industry
We provide professional OEM and ODM services to deliver customized valve solutions according to different coal chemical process requirements.
Our Wear Resistant Ball Valves are manufactured according to international valve standards with complete certification support:
Parameter Specifications
| Parameter | Specification |
|---|---|
| Product Name | Wear Resistant Ball Valve for Coal Chemical Industry |
| Valve Type | Wear Resistant Ball Valve |
| Application | Coal Chemical Processing, Slurry and Abrasive Media Control |
| Structure Type | Floating Ball / Trunnion Mounted Ball Valve |
| Size Range | DN15 – DN800 / 1/2" – 32" |
| Pressure Rating | PN16 – PN420 / Class 150 – Class 2500 |
| Design Standard | API 6D / ASME B16.34 |
| Testing Standard | API 598 / ISO 5208 |
| Body Material | Carbon Steel, Stainless Steel, Alloy Steel |
| Ball Material | Hardened Stainless Steel / Alloy Steel |
| Seat Material | Metal Seat / Tungsten Carbide Coated Seat |
| Wear Protection | Hard Alloy Coating, Carbide Coating, Surface Hardening |
| Sealing Type | Metal-to-Metal Seal / Hard Seal |
| Bore Type | Full Port / Reduced Port |
| Connection Type | Flanged / Butt Weld / Customized |
| Operation Method | Manual, Gear, Pneumatic, Hydraulic, Electric Actuator |
| Temperature Range | -40°C to +550°C |
| Medium | Coal Slurry, Ash Slurry, Syngas, Chemical Fluids |
| Anti-Wear Performance | High Resistance Against Particle Erosion and Abrasion |
| Leakage Standard | API 598 / ISO 5208 |
| Fire Safe Design | Available According to API 607 / API 6FA |
| Surface Treatment | Hardening Treatment, Anti-Corrosion Coating |
| Maintenance | Low Maintenance, Long Service Life |
| OEM Service | Available |
| Certification | ISO 9001, API, CE, NACE, MTC |
Industry Applications
✔ Excellent wear resistance for abrasive media
✔ Designed for coal chemical harsh operating conditions
✔ High-temperature and high-pressure capability
✔ Reliable metal sealing performance
✔ Reduced leakage and maintenance frequency
✔ Extended valve service life
✔ Customized anti-wear solutions available
✔ Complete OEM manufacturing and certification support
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
