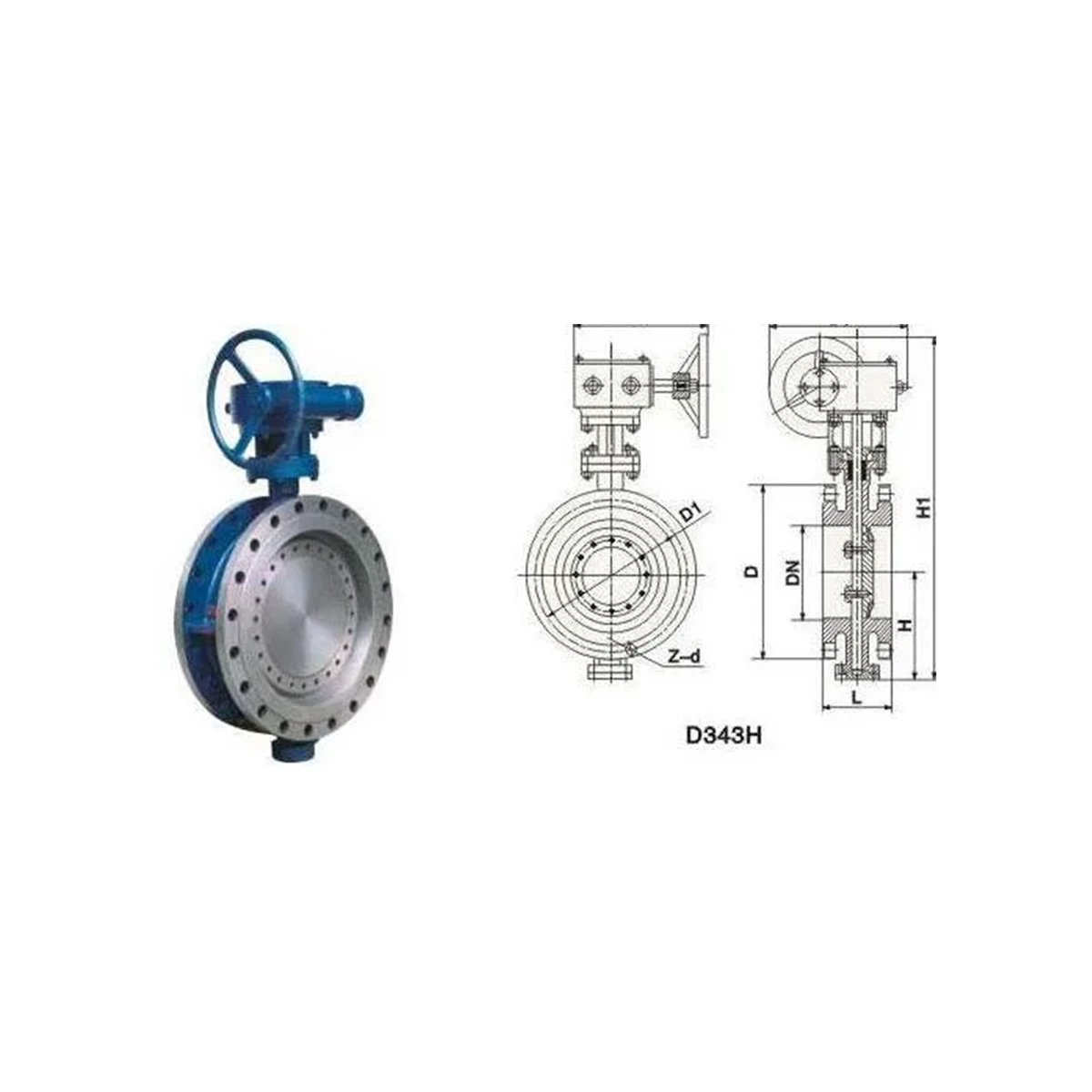

All Metal Flange Butterfly Valve
Nominal Diameter: DN 50 ~ 1200 mm
Nominal Pressure: PN 0.6 ~ 2.5 MPa
Applicable Mediums: Water, oil products
Applicable Temperature: ≤ 650°C
All Metal Flange Butterfly Valve

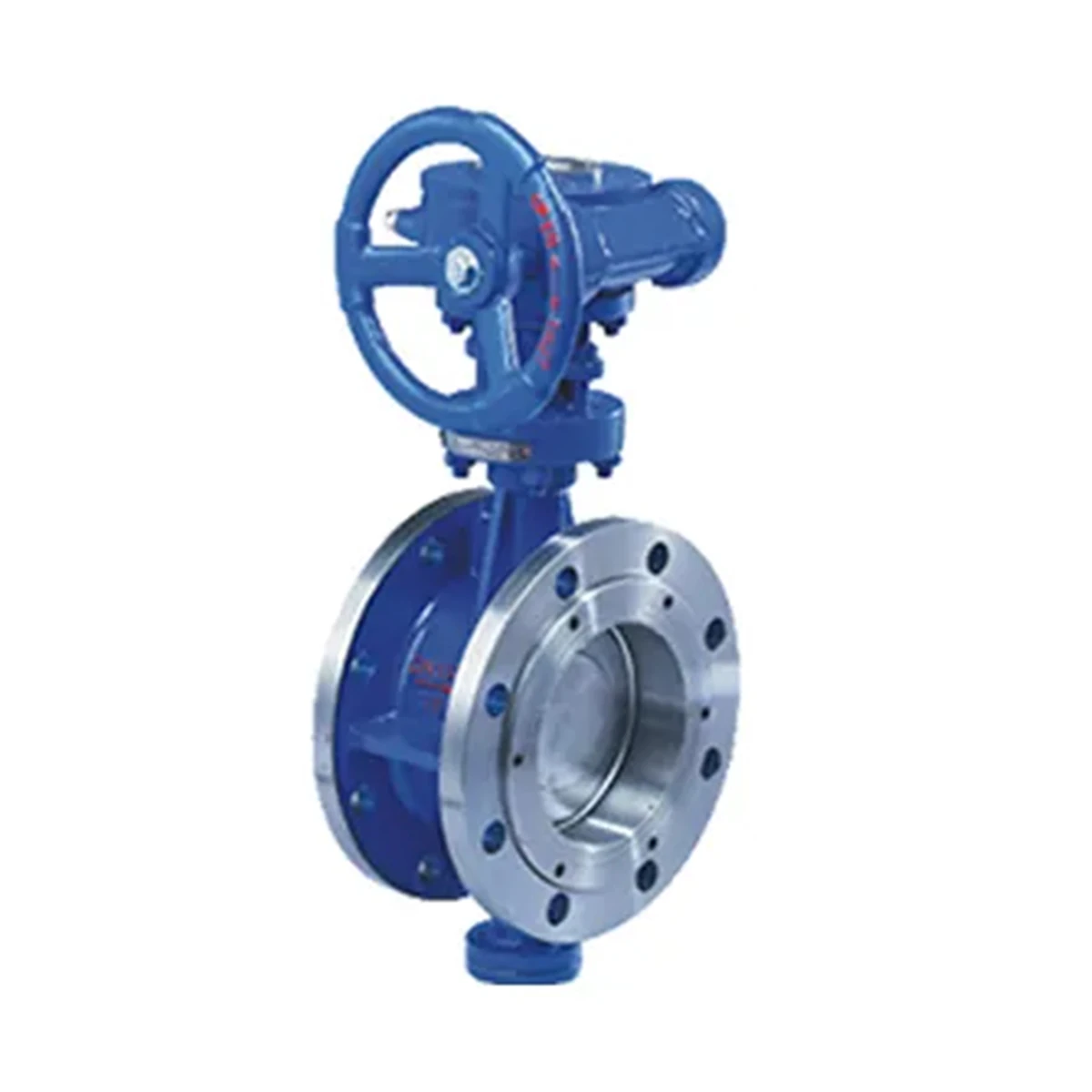

The All Metal Flange Butterfly Valve is specifically engineered for severe service applications involving high temperatures, high pressures, abrasive media, and corrosive environments. Featuring a fully metallic seat and sealing structure, the valve delivers exceptional durability, reliable shut-off performance, and extended service life under extreme operating conditions where conventional soft-seated butterfly valves cannot perform effectively.
The flanged connection design ensures secure installation, excellent structural strength, and easy integration into industrial pipeline systems. Its quarter-turn operation provides fast opening and closing, making it ideal for both isolation and flow control applications.
We offer comprehensive OEM and ODM services to meet the diverse requirements of global industrial customers:
Our All Metal Flange Butterfly Valves can be manufactured and tested in compliance with international standards:
Parameter Specifications
| Parameter | Specification / Range |
|---|---|
| Valve Type | All Metal Flange Butterfly Valve |
| Design Type | Double Offset / Triple Offset |
| Body Material | Carbon Steel, Stainless Steel, Alloy Steel, Duplex Stainless Steel |
| Disc Material | SS304, SS316, Duplex SS, Alloy Steel |
| Seat Material | Metal-to-Metal Seat |
| Hard Facing Material | Stellite, Tungsten Carbide, Chrome Carbide |
| Size Range | DN50 – DN3000 (NPS 2" – 120") |
| Pressure Rating | PN10 – PN160 / Class 150 – Class 900 |
| Connection Type | Flanged |
| Flange Standard | ANSI, ASME, DIN, EN, JIS, GB |
| Operating Temperature | -196°C to +650°C |
| Leakage Class | ANSI/FCI 70-2 Class V / VI |
| Operation Method | Lever, Worm Gear, Electric, Pneumatic, Hydraulic |
| Fire Safe Design | API 607 / API 6FA |
| Anti-Static Design | Available |
| Testing Standard | API 598, ISO 5208 |
| Applicable Media | Steam, Gas, Oil, Chemical Fluids, Slurry, Hot Air |
Industry Applications
All Metal Flange Butterfly Valves are widely used in demanding industrial environments where high temperature, high pressure, erosion, or corrosion resistance is required.
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
