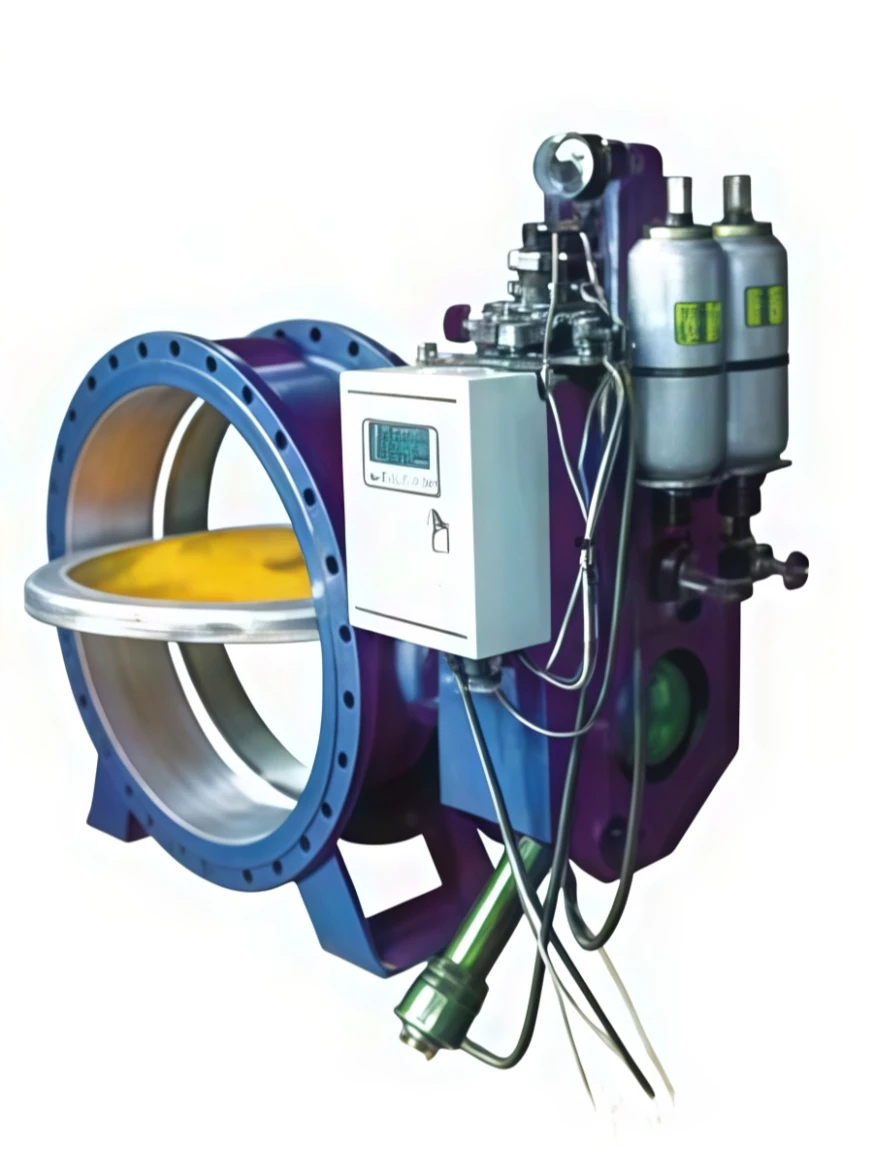

Butterfly valve hydraulic control valve
The Butterfly Valve Hydraulic Control Valve is an advanced flow control solution that combines a high-performance butterfly valve with a hydraulic operating system to achieve smooth, reliable, and precise valve control. It is specially designed for large-diameter pipelines, high-pressure systems, and applications requiring stable opening, closing, and flow regulation.
Through hydraulic actuation technology, the valve provides powerful operating capability, accurate positioning, and safe operation under demanding conditions. It is widely used in water transmission systems, hydropower plants, municipal water projects, industrial pipelines, and large-scale fluid control applications.
The hydraulic control system enables controlled valve movement, reducing water hammer effects and protecting pipeline safety. The valve can be integrated with PLC, SCADA, and automatic control systems for intelligent operation and remote monitoring.
Butterfly valve hydraulic control valve
We provide professional OEM manufacturing and customized hydraulic control butterfly valve solutions according to different project requirements.
Available materials include:
Our hydraulic control butterfly valves are manufactured under strict quality management systems and comply with international valve industry standards, including:
Complete technical documents available:
Parameter Specifications
| Parameter | Specification |
|---|---|
| Product Name | Butterfly Valve Hydraulic Control Valve |
| Valve Type | Butterfly Valve with Hydraulic Actuator Control System |
| Application | Large Pipeline Flow Control, Pressure Regulation, Automatic Control |
| Nominal Size | DN200–DN5000 (8"–200") |
| Pressure Rating | PN6–PN40 / Class 150–300 |
| Design Standard | API 609 / EN 593 / MSS SP-67 |
| Body Material | Ductile Iron / Carbon Steel / Stainless Steel |
| Disc Material | Stainless Steel / Ductile Iron / Duplex Steel / Customized Material |
| Shaft Material | Stainless Steel / Alloy Steel |
| Seat Material | EPDM / NBR / PTFE / Metal Seat |
| Connection Type | Flanged / Wafer / Customized Connection |
| Actuation Type | Hydraulic Actuator |
| Hydraulic Pressure | Customized According to Valve Size and Application |
| Control Method | Manual Hydraulic / Electric Hydraulic / PLC Automatic Control |
| Media | Water, Oil, Gas, Industrial Fluids |
| Temperature Range | -20°C to +180°C (Customized Available) |
| Leakage Standard | API 598 / EN 12266 |
| Flow Direction | Bidirectional Flow Available |
| Face-to-Face Dimension | API 609 / EN 558 |
| Hydraulic System | Hydraulic Cylinder / Hydraulic Power Unit |
| Control Function | Open, Close, Modulating Control, Emergency Shutdown |
| Protection Grade | IP65 / IP67 Optional |
| Certification | ISO 9001, CE, API Standards (Optional) |
| OEM Capability | Size, Material, Hydraulic System, Control Mode Customization |
Industry Applications
Butterfly Valve Hydraulic Control Valves are widely used in industries requiring reliable large-scale flow control and automatic operation.
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
