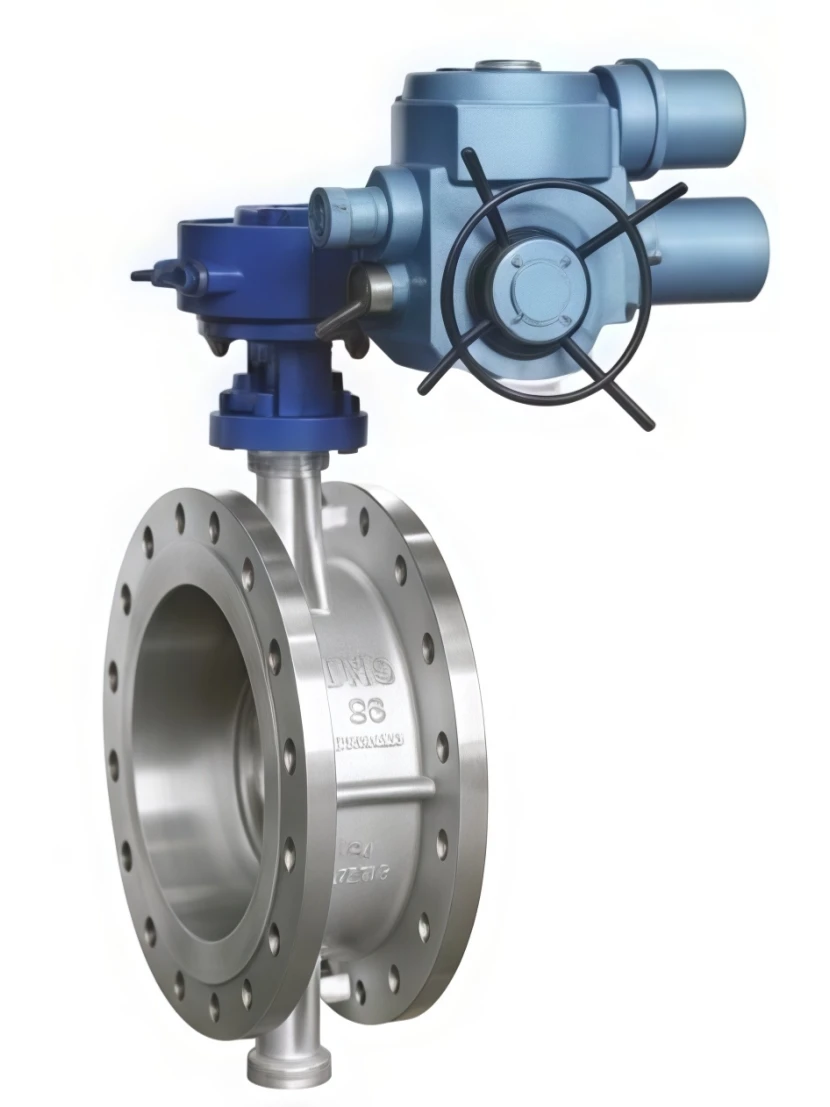

Electric three eccentric flange butterfly valve
The Electric Triple Eccentric Flange Butterfly Valve is an advanced high-performance valve designed for demanding industrial applications requiring reliable shut-off, precise flow control, and long service life. Featuring a triple eccentric structure combined with an electric actuator, the valve provides excellent sealing performance, low operating torque, and outstanding resistance to high temperature, high pressure, and corrosive media.
The triple eccentric design eliminates friction between the sealing surfaces during operation, significantly reducing wear and extending valve service life. The metal-to-metal sealing system ensures reliable zero-leakage performance and makes the valve ideal for harsh operating conditions where conventional butterfly valves cannot meet performance requirements.
Equipped with an electric actuator, the valve supports remote operation, automatic control, and integration with PLC, DCS, and SCADA systems. It is widely used in oil & gas, power generation, chemical processing, metallurgy, petrochemical, and industrial pipeline systems.
Electric three eccentric flange butterfly valve
We provide professional OEM manufacturing and customized solutions for electric triple eccentric flange butterfly valves according to different project requirements.
Available materials include:
Available sealing solutions:
Available actuator options:
Our electric triple eccentric flange butterfly valves are manufactured under strict quality management systems and comply with international valve industry standards, including:
Complete technical documents available:
Parameter Specifications
| Parameter | Specification |
|---|---|
| Product Name | Electric Triple Eccentric Flange Butterfly Valve |
| Valve Type | Triple Offset Butterfly Valve with Electric Actuator |
| Application | High Performance Flow Control and Shut-off |
| Nominal Size | DN50–DN4000 (2"–160") |
| Pressure Rating | PN6–PN63 / Class 150–600 |
| Design Standard | API 609 / EN 593 / MSS SP-68 |
| Structure Type | Triple Eccentric / Triple Offset Design |
| Body Material | Carbon Steel / Stainless Steel / Alloy Steel |
| Disc Material | Stainless Steel / Duplex Steel / Alloy Material |
| Shaft Material | Stainless Steel / Alloy Steel |
| Seat Type | Metal-to-Metal Hard Seal |
| Connection Type | Flanged Type |
| Flange Standard | EN1092 / ANSI B16.5 / ASME / JIS / Customized |
| Actuator Type | Electric Quarter-Turn Actuator |
| Power Supply | AC220V / AC380V / DC24V (Customized Available) |
| Control Mode | ON/OFF / Modulating Control |
| Signal Feedback | Limit Switch / Position Transmitter / 4–20mA Signal |
| Temperature Range | -196°C to +600°C (Customized Available) |
| Media | Steam, Gas, Oil, Water, Chemical Fluids, Hot Gas |
| Leakage Standard | API 598 / EN 12266 |
| Leakage Class | Zero Leakage / Bubble Tight Shut-off |
| Face-to-Face Dimension | API 609 / EN 558 |
| Actuator Mounting | ISO 5211 |
| Protection Grade | IP65 / IP67 / IP68 Optional |
| Explosion-Proof Grade | Available for Hazardous Areas |
| Installation Position | Horizontal / Vertical |
| Certification | ISO 9001, CE, API Standards (Optional) |
| OEM Capability | Size, Material, Pressure Rating, Actuator, Control System Customization |
Industry Applications
Electric Triple Eccentric Flange Butterfly Valves are widely used in industries requiring high-performance shut-off, automation, and reliable operation under harsh conditions.
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
