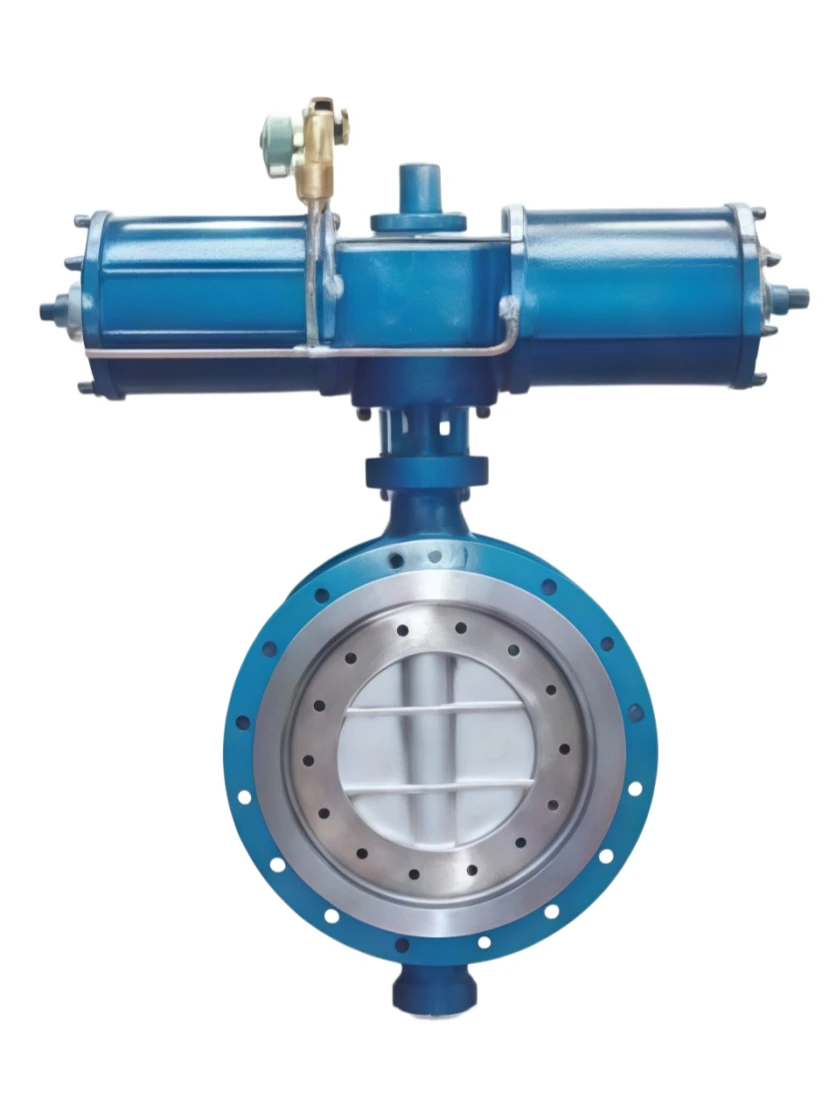

Pneumatic Butterfly Valve
The Pneumatic Butterfly Valve is a high-performance automated valve designed for efficient flow control and reliable shut-off in industrial pipeline systems. Equipped with a pneumatic actuator, the valve provides fast operation, accurate control, and easy integration with automated systems such as PLC, DCS, and SCADA.
Featuring a compact structure, lightweight design, low operating torque, and excellent sealing performance, the pneumatic butterfly valve is widely used for controlling liquids, gases, and other industrial media. It is suitable for applications requiring frequent operation, remote control, and automated process management.
The valve is available in wafer, lug, and flanged designs, with various sealing options including soft seal, rubber seat, PTFE seat, and metal seat to meet different working conditions.
Pneumatic Butterfly Valve
We provide professional OEM manufacturing and customized pneumatic butterfly valve solutions according to customer specifications and project requirements.
Available materials include:
Available sealing solutions:
Actuator options:
Our pneumatic butterfly valves are manufactured under strict quality management systems and comply with international valve industry standards, including:
Complete technical documents available:
Parameter Specifications
| Parameter | Specification |
|---|---|
| Product Name | Pneumatic Butterfly Valve |
| Valve Type | Butterfly Valve with Pneumatic Actuator |
| Application | Automatic Flow Control and Shut-off |
| Nominal Size | DN50–DN3000 (2"–120") |
| Pressure Rating | PN6–PN40 / Class 150–300 |
| Design Standard | API 609 / EN 593 / MSS SP-67 |
| Body Material | Cast Iron / Ductile Iron / Carbon Steel / Stainless Steel |
| Disc Material | Stainless Steel / Ductile Iron / Aluminum Bronze / Customized Material |
| Shaft Material | Stainless Steel / Alloy Steel |
| Seat Material | EPDM / NBR / PTFE / Metal Seat |
| Connection Type | Wafer / Lug / Flanged Type |
| Actuator Type | Pneumatic Single Acting / Double Acting |
| Operating Pressure | 0.4–0.8 MPa Pneumatic Supply |
| Temperature Range | -20°C to +180°C (Customized Available) |
| Media | Water, Air, Gas, Oil, Steam, Industrial Fluids |
| Leakage Standard | API 598 / EN 12266 |
| Sealing Class | Class VI / Bubble Tight Shut-off (Optional) |
| Face-to-Face Dimension | API 609 / EN 558 |
| Actuator Mounting | ISO 5211 |
| Control Method | Pneumatic / PLC / DCS Automatic Control |
| Signal Feedback | Limit Switch / Position Sensor Optional |
| Protection Grade | IP65 / IP67 / IP68 Optional |
| Installation Position | Horizontal / Vertical |
| Certification | ISO 9001, CE, API Standards (Optional) |
| OEM Capability | Size, Material, Seal, Actuator, Control System Customization |
Industry Applications
Pneumatic Butterfly Valves are widely used in industries requiring automated flow control, remote operation, and reliable shut-off performance.
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
