Custom Check Valves
Check valves are a type of valve used to control one-way flow in pipeline systems. They allow the medium to move in the correct direction and close automatically when reverse flow occurs, helping protect pumps, equipment, and process stability. Because of this function, check valves are commonly used in water supply, drainage, oil and gas pipelines, chemical processing, HVAC systems, and other industrial applications.
For buyers sourcing Custom Check Valves, the key is to match the valve structure with real working conditions, including medium type, pressure level, installation direction, closing response, connection standard, and anti-backflow requirements. Jianqiao provides check valve options for different pipeline protection needs, and can support custom valve requirements when standard models need to be adjusted for specific project conditions.
How Does a Check Valve Work?
The check valve works on the principle of differential pressure. Here's a step-by-step explanation of its operation:
1. Flow in the Correct Direction:
When fluid flows in the designated direction, the pressure from the flow opens the valve.
This action lifts or moves a valve disc, ball, or flap off its seat, allowing the fluid to pass through the valve.
2. Flow Reversal (Backflow):
If the fluid starts to flow in the opposite direction, the pressure from the backflow will push the disc, ball, or flap against the seat.
This action closes the valve, preventing any fluid from flowing in the reverse direction.
3. Automatic Function:
Unlike other valves (e.g., ball or gate valves) that require manual intervention to operate, check valves are self-acting. They only respond to changes in the direction of fluid flow.
Custom Check Valves Service
| Custom Direction | Buyer Value |
|---|---|
| Material selection | Helps match water, oil, gas, chemical liquid, or corrosive media |
| Valve structure selection | Supports different flow conditions, closing methods, and installation layouts |
| Pressure class matching | Helps the valve work safely under medium, low, or high-pressure systems |
| Connection standard adaptation | Supports flange or project-specific connection requirements |
| Closing performance optimization | Helps reduce reverse flow, pressure shock, or system instability |
| Installation direction confirmation | Supports horizontal, vertical, or special pipeline layouts depending on valve type |
| Documentation support | Helps engineering buyers prepare project files, drawings, and compliance review materials |
Applications of Custom Check Valves
- Pump outlet pipelines
Prevents reverse flow after pump shutdown and helps protect pump equipment. - Water supply systems
Supports one-way water flow and reduces the risk of backflow in municipal, industrial, or building pipelines. - Drainage and wastewater systems
Helps prevent reverse movement of fluid in discharge pipelines. - Oil and gas pipelines
Used where reverse flow may affect pipeline safety, pressure balance, or equipment operation. - Chemical processing lines
Suitable when backflow may cause media mixing, contamination, or corrosion-related risks. - HVAC and circulating water systems
Helps maintain correct circulation direction and system stability. - High-pressure pipeline systems

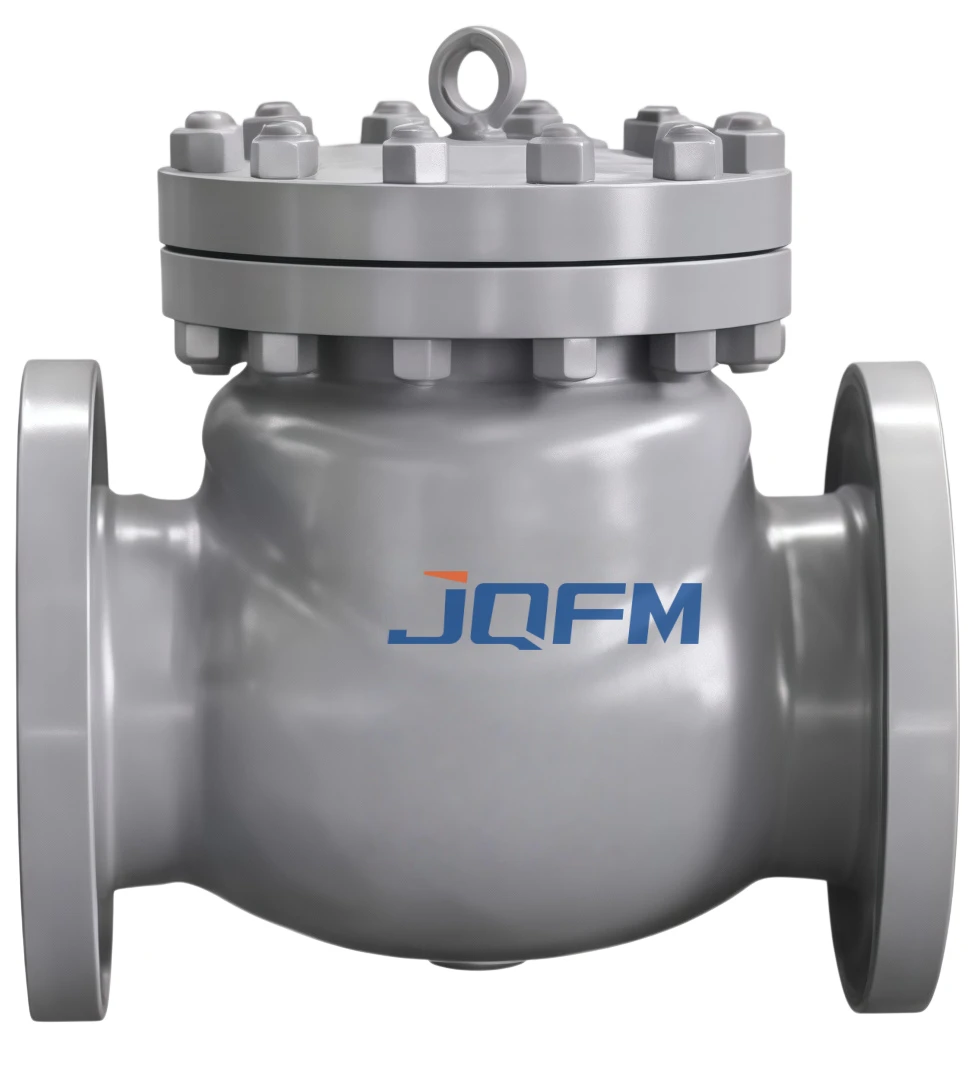

High pressure check valves can be selected when the system requires stronger pressure-bearing performance. - Noise-sensitive or water hammer-sensitive systems

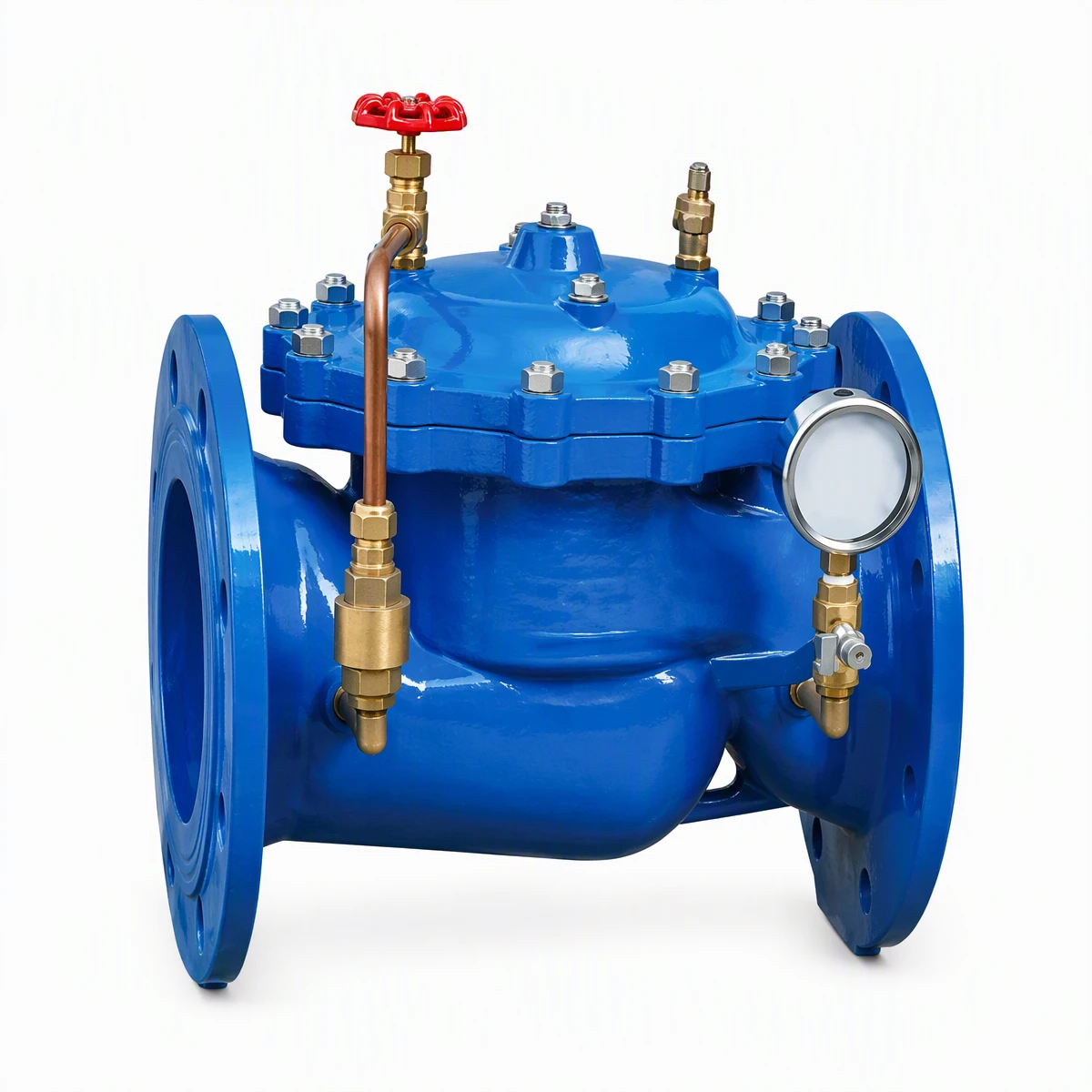

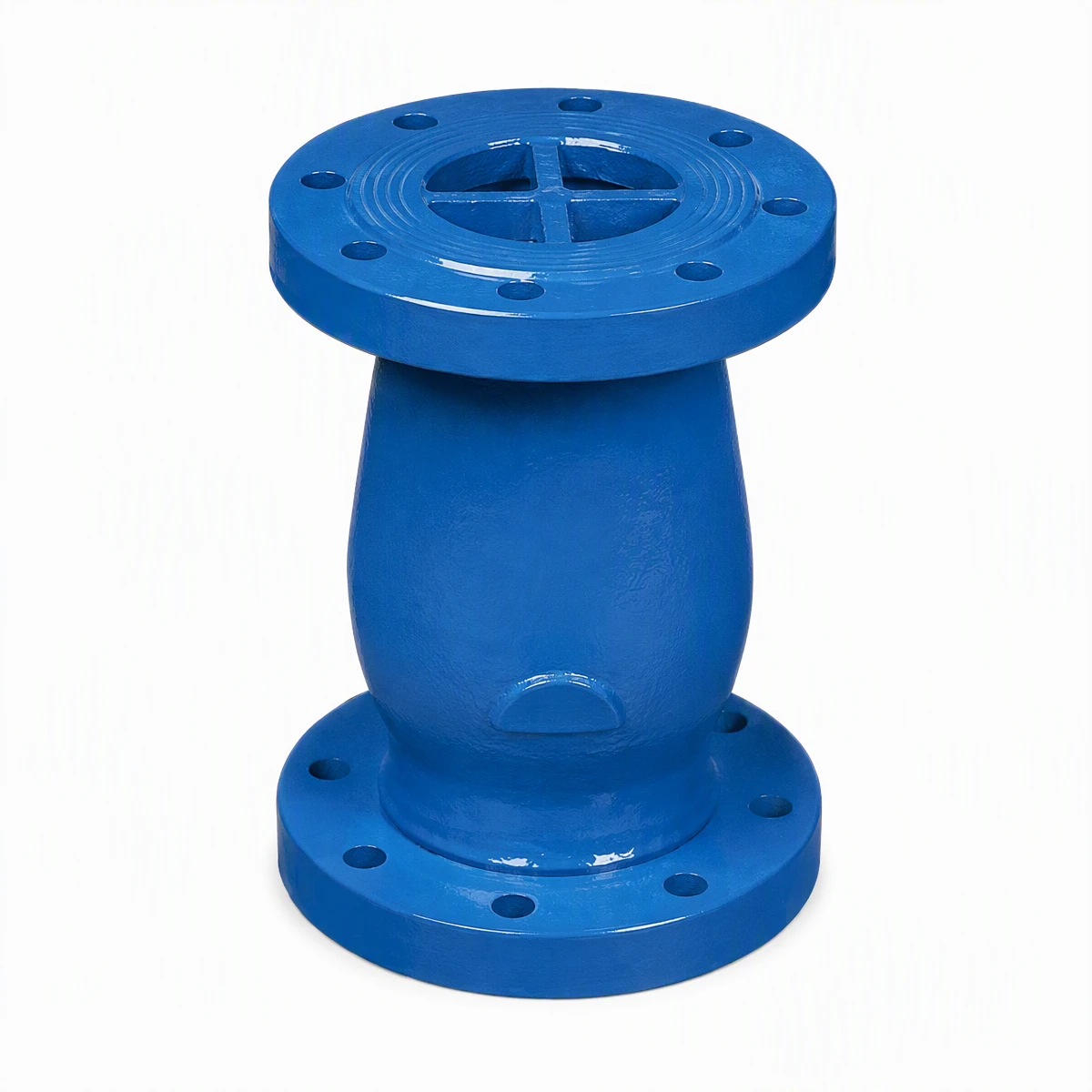

Silent check valves or slow-closing check valves can be considered when closing impact, noise, or pressure shock needs attention.
