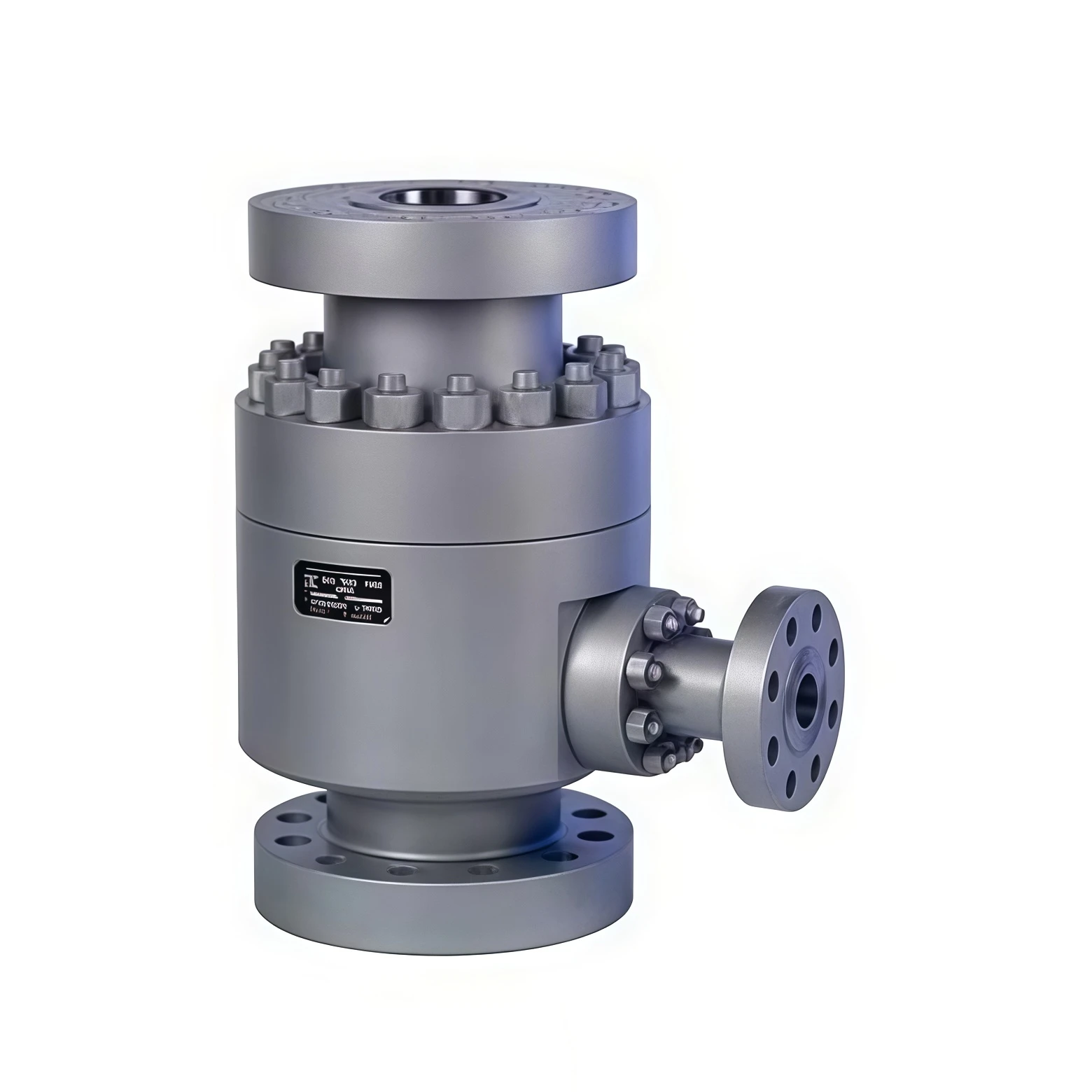

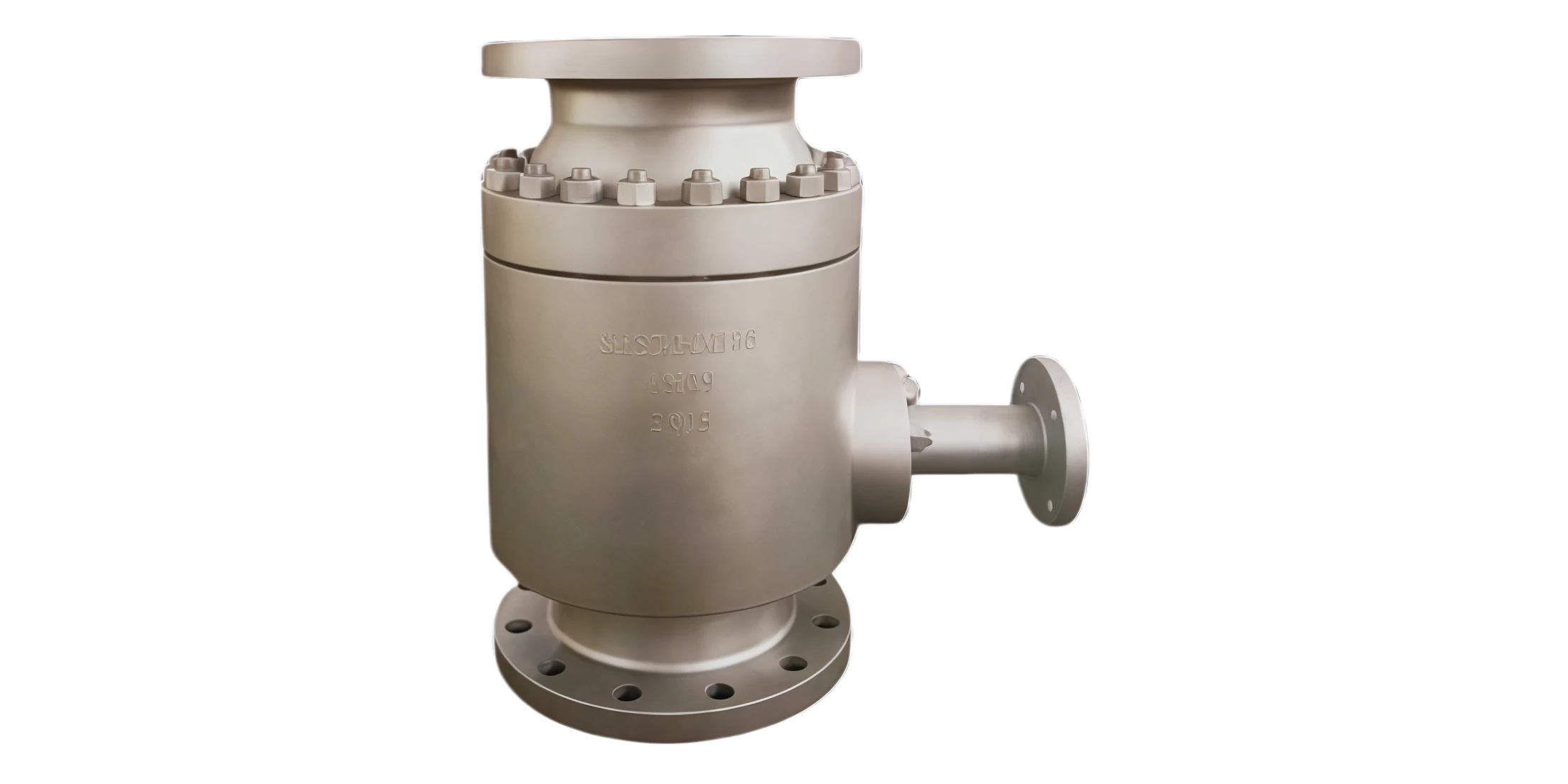

ARC1000Minimum flow valve
The Minimum Flow Valve is designed to maintain a set minimum flow in pumps and piping systems, preventing overheating, cavitation, and equipment damage. Adjustable, durable, and compatible with various fluids, it ensures reliable operation under high-pressure and temperature conditions. Ideal for power plants, industrial processes, and water distribution networks.
Minimum flow valve
The Minimum Flow Valve is engineered to protect critical pumping systems by guaranteeing a minimum flow rate, even during low-demand conditions. Its precise flow control mechanism prevents pump overheating, cavitation, and system instability. Constructed from robust materials such as carbon steel, stainless steel, and high-alloy metals, the valve delivers long service life and reliable performance. Adjustable settings allow easy integration into various industrial systems.
Minimum flow valve
| Parameter | Specification |
|---|---|
| Product Name | Minimum Flow Valve |
| Nominal Size | DN15 – DN600 |
| Pressure Rating | PN10 – PN40 |
| ANSI Class | Class 150 – Class 300 |
| Body Material | Carbon Steel, Stainless Steel, Alloy Steel |
| Seat & Disc Material | Stainless Steel, Hard-Faced Alloy, Stellite |
| Connection Type | Flanged, BW, SW, Threaded |
| Temperature Range | -20°C to +450°C |
| Operation | Manual / Pneumatic / Electric Actuation |
| Leakage Standard | API 598 / ISO 5208 |
| Design Standard | ASME B16.34, DIN, GB Standards |
| Applicable Media | Water, Oil, Steam, Chemicals |
Minimum flow valve
Maintains minimum flow for cooling water and turbine protection.
Prevents cavitation and overheating in chemical, petrochemical, and manufacturing plants.
Ensures consistent flow rates in pipelines to protect pumps and valves.
Protects compressors, pipelines, and metering systems from low-flow damage.
Maintains minimum flow to ensure efficient heat transfer and system stability.
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
