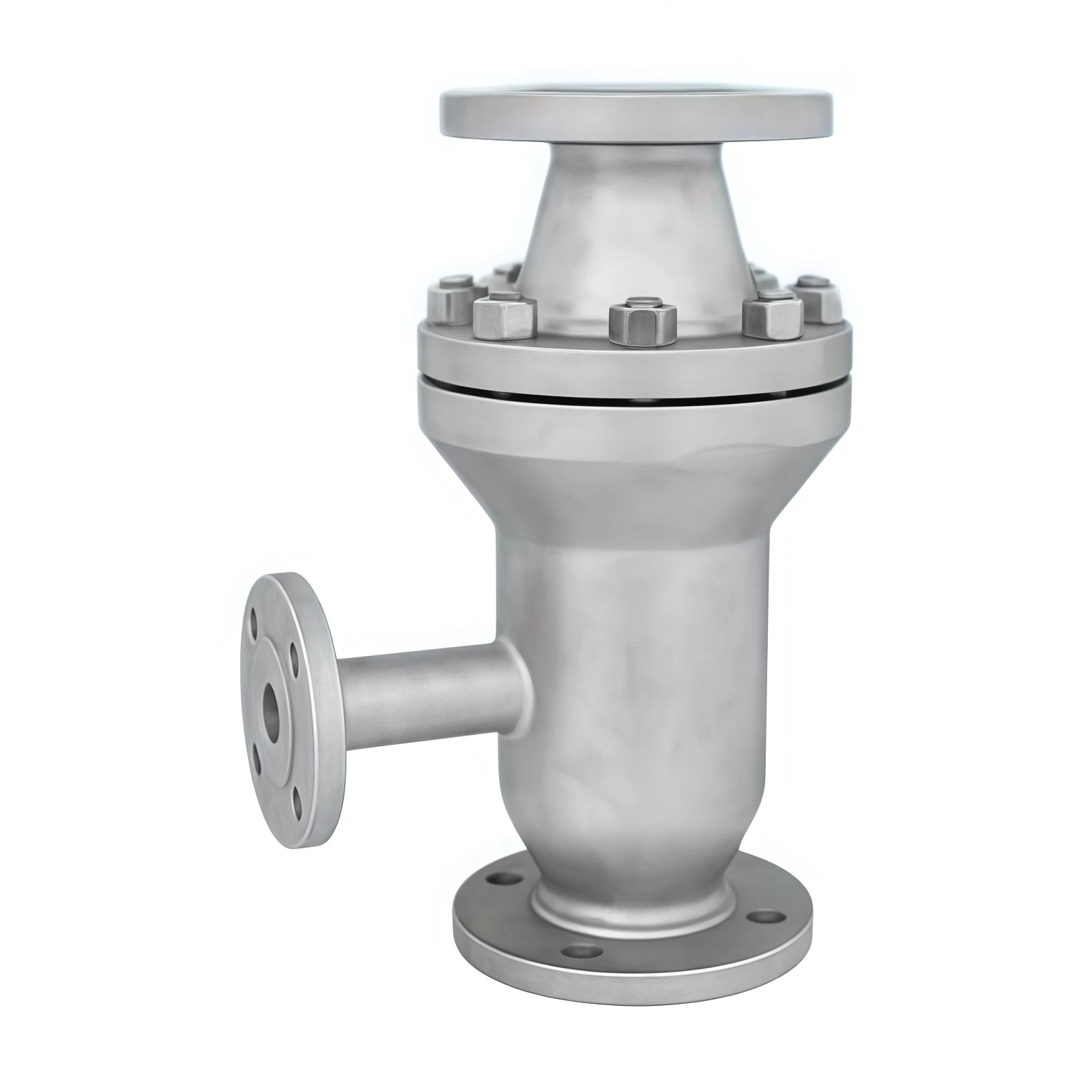

Automatic control return valve
The Automatic Control Return Valve automatically regulates backflow in pipelines, maintaining optimal pressure and preventing system instability. Suitable for hydraulic, water, and chemical systems, it features high-precision components, corrosion-resistant materials, and reliable performance under varying flow and pressure conditions. Automatic operation reduces maintenance and enhances process efficiency.

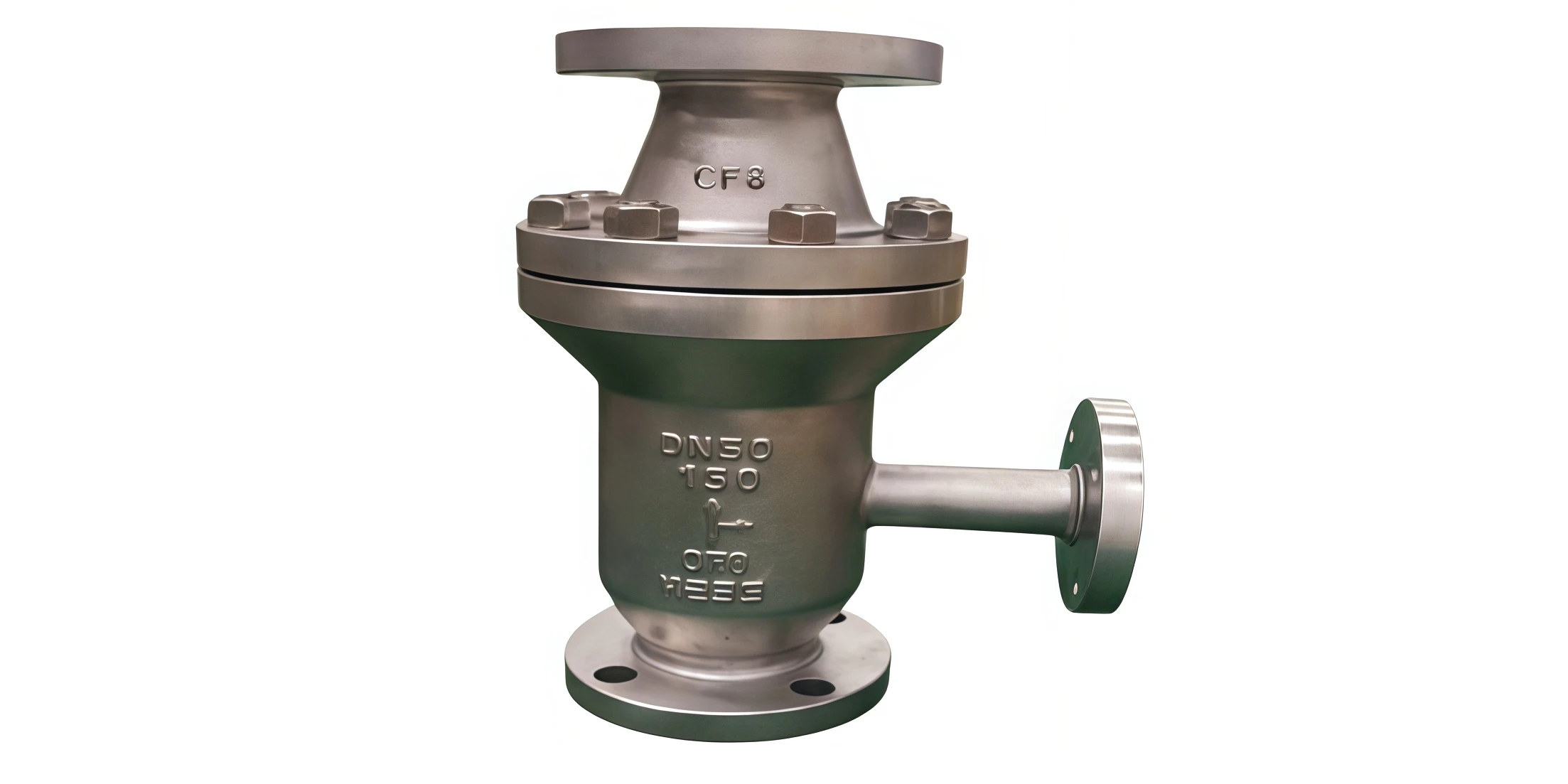

Automatic control return valve
The Automatic Control Return Valve is designed for automated backflow control in industrial and hydraulic systems. It prevents overpressure, water hammer, and reverse flow damage while ensuring consistent system performance. Constructed from durable materials like carbon steel, stainless steel, and alloy steel, the valve supports a wide pressure and temperature range. Its automatic operation allows seamless integration into automated systems, reducing manual intervention and improving overall efficiency.
Automatic control return valve
| Parameter | Specification |
|---|---|
| Product Name | Automatic Control Return Valve |
| Nominal Size | DN15 – DN800 |
| Pressure Rating | PN10 – PN40 |
| ANSI Class | Class 150 – Class 300 |
| Body Material | Carbon Steel, Stainless Steel, Alloy Steel |
| Internal Component Material | Stainless Steel, Hard-Faced Alloy, Elastomer |
| Connection Type | Flanged, BW, SW, Threaded |
| Temperature Range | -20°C to +450°C |
| Operation | Automatic Control / Pneumatic / Electric |
| Leakage Standard | API 598 / ISO 5208 |
| Design Standard | ASME B16.34, DIN, GB Standards |
| Applicable Media | Water, Oil, Steam, Chemicals |
Automatic control return valve
Maintains safe pressure levels and prevents reverse flow in cooling and steam systems.
Prevents backflow and water hammer in chemical, petrochemical, and manufacturing pipelines.
Ensures consistent flow direction and system stability in municipal and industrial water systems.
Protects pipelines, pumps, and compressors from reverse flow and overpressure damage.
Maintains system pressure and prevents backflow in heating and cooling loops.
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
