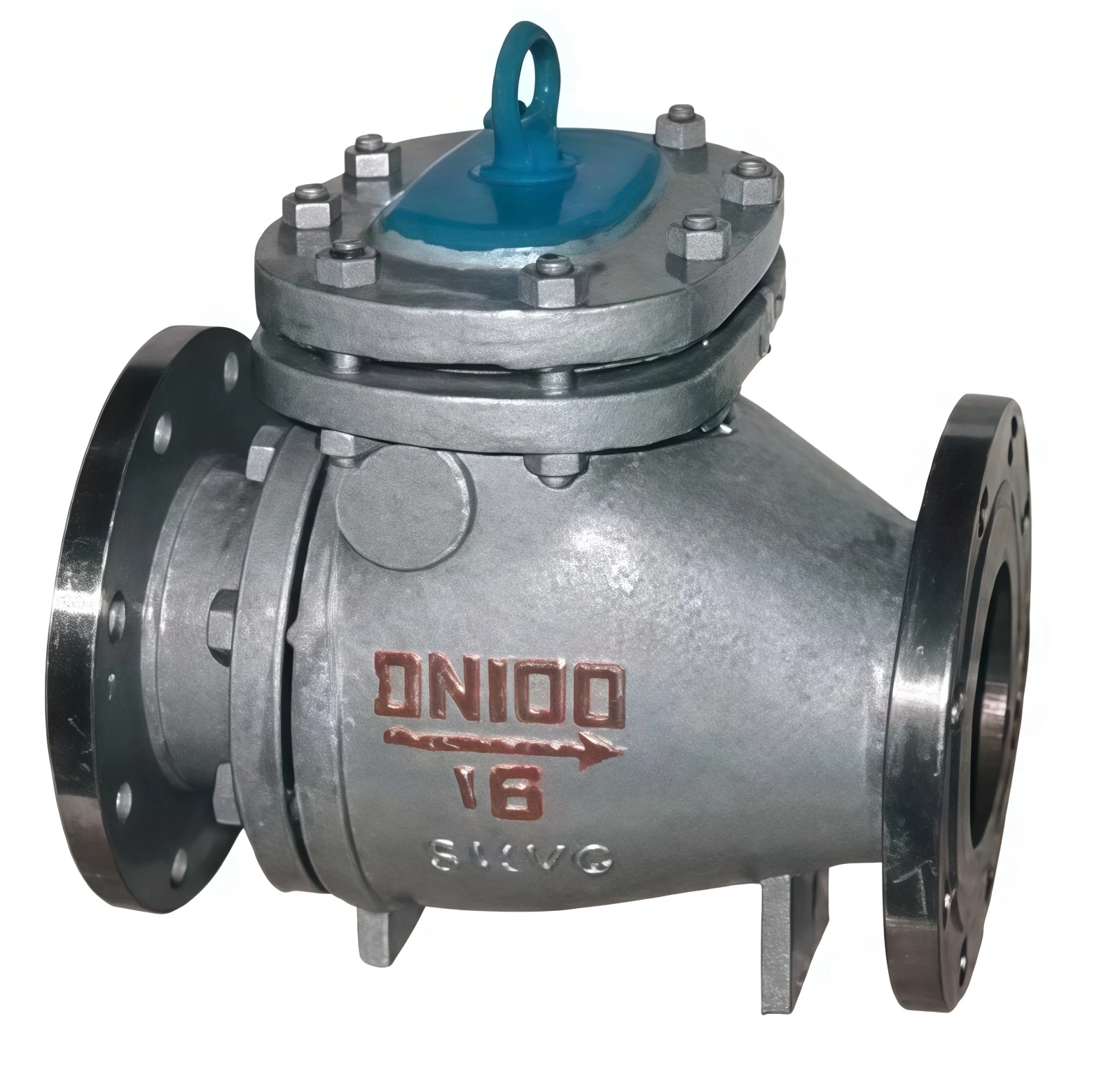

Discharge check valve
The Discharge Check Valve is engineered to automatically prevent backflow in pump discharge and process piping systems. Featuring durable construction, reliable sealing, low-pressure loss, and fast response characteristics, it protects pumps and equipment from reverse flow damage while ensuring continuous and efficient fluid transportation.
Discharge check valve
The Discharge Check Valve is a vital flow-control device designed to allow fluid movement in one direction while preventing reverse flow in discharge systems. Commonly installed downstream of pumps, compressors, and process equipment, it safeguards machinery from hydraulic shock, backpressure, and operational failures.
Manufactured with precision engineering and premium materials, our discharge check valves provide dependable performance in water treatment, power generation, chemical processing, oil & gas, mining, and industrial fluid handling systems.
As a professional industrial valve manufacturer, we offer comprehensive OEM and ODM solutions tailored to customer requirements.
Our manufacturing processes and products comply with major international standards and certifications:
Discharge check valve
| Parameter | Specification |
|---|---|
| Product Name | Discharge Check Valve |
| Valve Type | Non-Return / Check Valve |
| Size Range | DN15 – DN1200 |
| Pressure Rating | PN10 – PN100 / Class 150–600 |
| Body Material | Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel |
| Disc Material | Stainless Steel, Ductile Iron |
| Seat Material | NBR, EPDM, PTFE, Metal Seat |
| Connection Type | Flanged, Threaded, Wafer, Lug, Welded |
| Operating Temperature | -29°C to +450°C |
| Leakage Class | ANSI/FCI 70-2 Class VI |
| Flow Direction | One Direction Only |
| Applicable Medium | Water, Oil, Gas, Steam, Chemicals |
| Surface Treatment | Epoxy Coating, Painting, Polishing |
| Design Standard | API, ANSI, DIN, BS, JIS |
| Installation Position | Horizontal or Vertical |
Discharge check valve
The Discharge Check Valve is widely used in:
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
