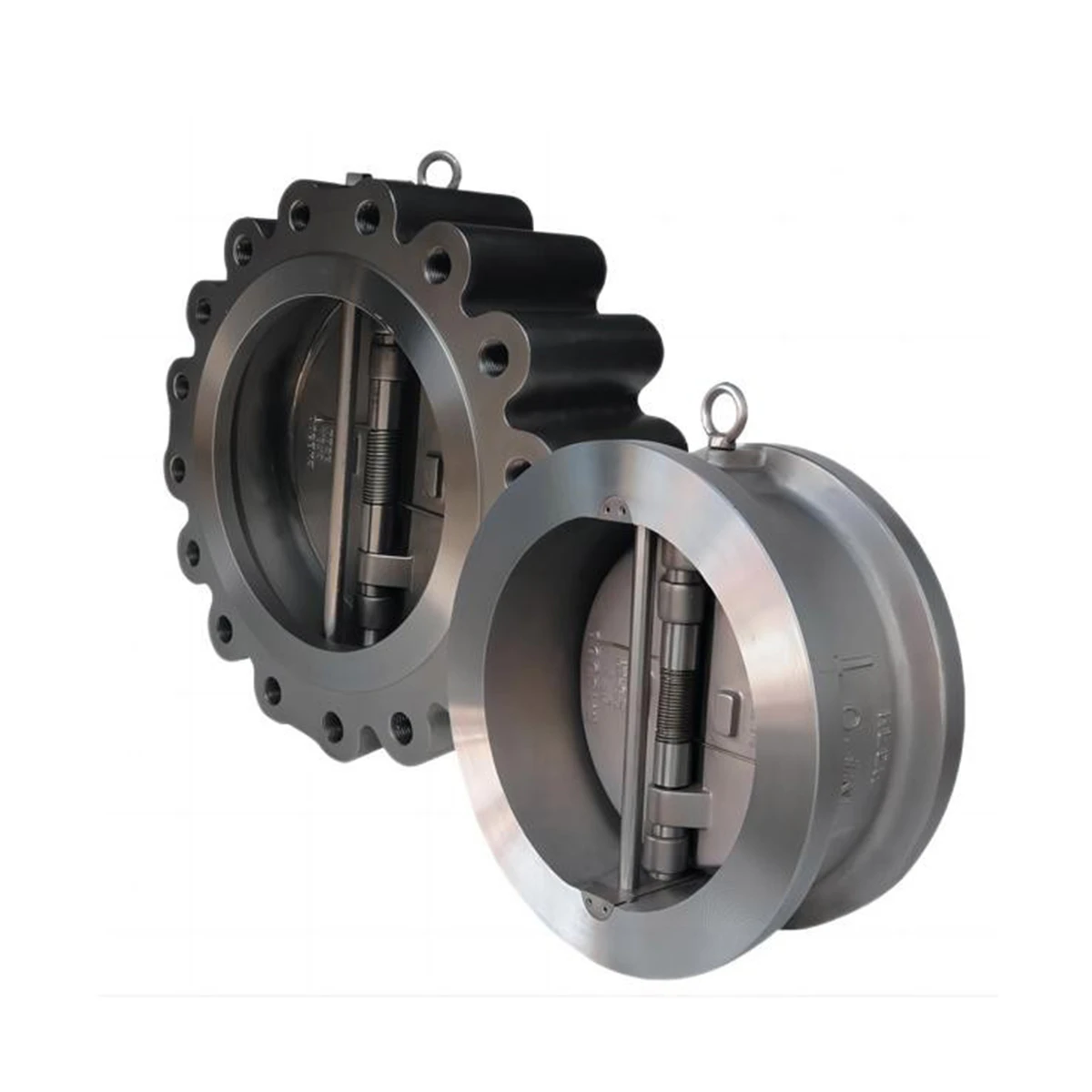

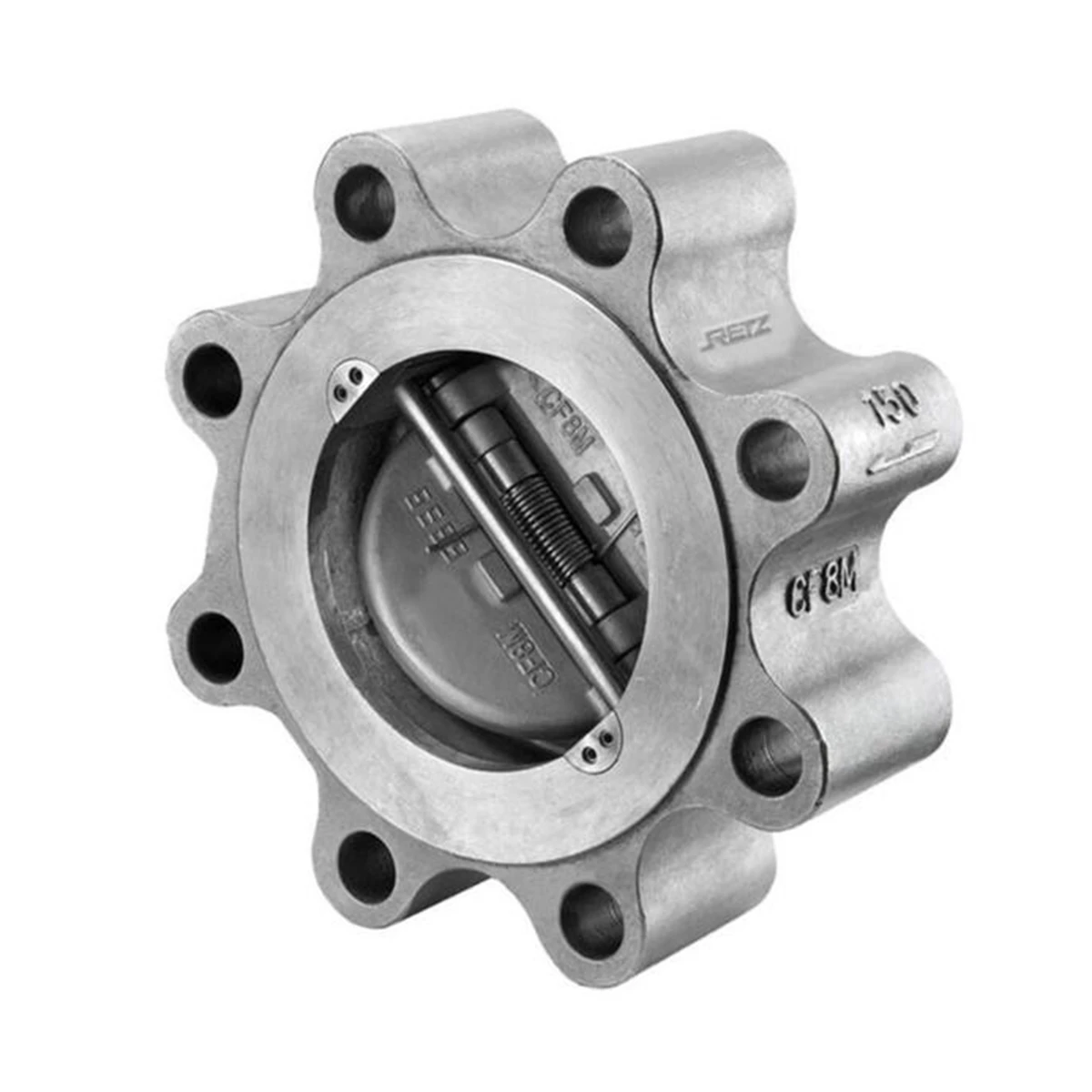

Lug Check Valve
Nominal Diameter: 2" ~ 24"
Nominal Pressure: 150 ~ 2500 lb
Mediums: Water, sewage, oil, gas, chemicals
Temperature Range: ≤ 425°C
Lug Check Valve
The Lug Check Valve is designed to prevent backflow in piping systems, ensuring safe and efficient fluid transportation. Featuring a lug-style body design, the valve can be installed between flanges and allows for easy maintenance of downstream equipment without disturbing the entire pipeline. It offers reliable sealing performance, low pressure drop, and long service life across a wide range of industrial applications.
We provide comprehensive OEM and ODM services to meet specific project and market requirements:
Our manufacturing and quality management systems comply with international valve industry standards:
Parameter Specifications
| Parameter | Specification |
|---|---|
| Valve Type | Lug Check Valve |
| Nominal Size | DN50–DN1200 (2"–48") |
| Pressure Rating | PN10, PN16, PN25, PN40 / Class 150, 300 |
| Body Material | Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel |
| Disc Material | Stainless Steel, Ductile Iron, Bronze |
| Seat Material | EPDM, NBR, PTFE, Metal Seat |
| Connection Type | Lug Wafer Type |
| Flange Standard | ANSI, ASME, DIN, EN, BS, JIS |
| Working Temperature | -20°C to 425°C (depending on material) |
| Applicable Media | Water, Oil, Gas, Steam, Chemicals |
| Installation Position | Horizontal or Vertical |
| Leakage Class | ISO 5208 / EN 12266 |
| Design Standard | API 594, EN 16767 |
| Face-to-Face Standard | API 594 / EN 558 |
| Testing Standard | API 598, EN 12266 |
| Surface Coating | Epoxy Coating, Anti-corrosion Coating (Optional) |
Industry Applications
Key Benefits:
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
