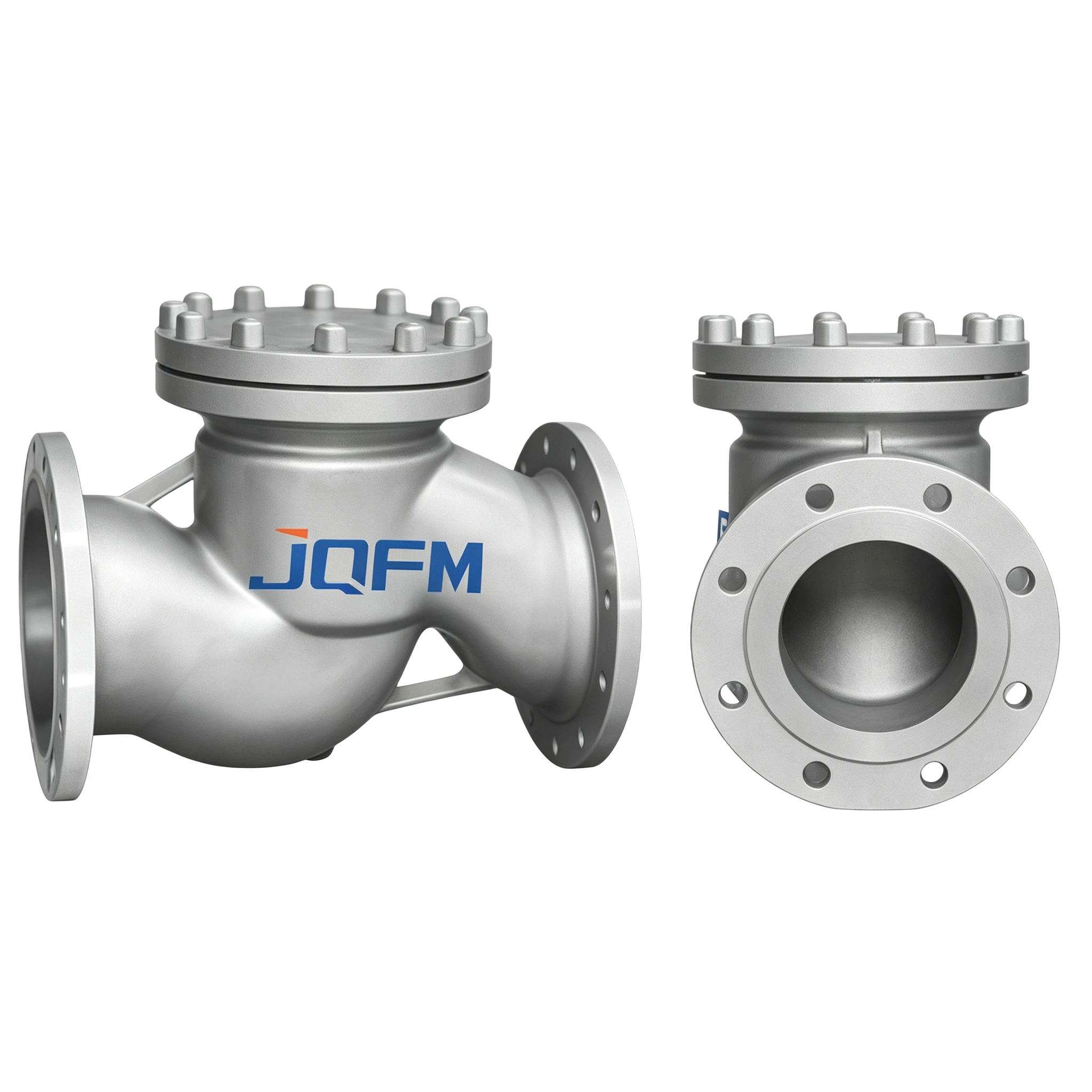

Medium and low pressure lift check valve
This Lift Check Valve is designed for medium and low pressure pipelines in water supply, HVAC, and industrial systems. It offers efficient flow control, rapid disc response, minimal leakage, and robust corrosion-resistant construction. Suitable for horizontal or vertical installation, it reduces water hammer and improves system safety and efficiency.

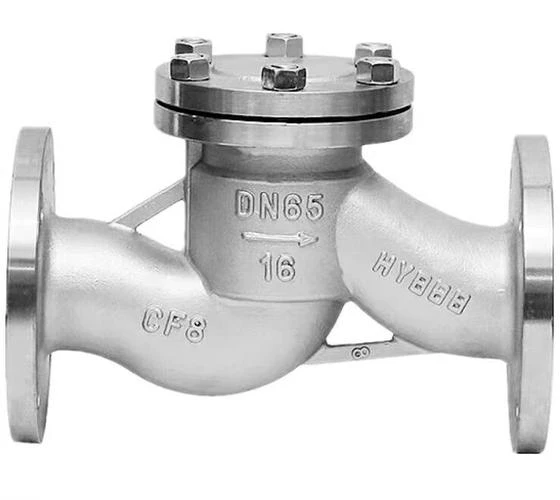

Medium and low pressure lift check valve
The Medium and Low Pressure Lift Check Valve is engineered for reliable backflow prevention in pipelines with moderate or low pressure. The valve’s disc lifts automatically with forward flow and seals tightly against reverse flow, ensuring system protection.
Constructed with durable materials such as cast steel, ductile iron, or stainless steel, the valve offers excellent corrosion resistance and extended service life. It is suitable for potable water, industrial fluids, HVAC systems, and process pipelines. Optional soft or metal seat designs provide leak-tight performance tailored to system requirements.
Manufactured and tested according to industrial standards:
Medium and low pressure lift check valve
| Parameter | Specification |
|---|---|
| Product Name | Medium and Low Pressure Lift Check Valve |
| Valve Type | Lift Check Valve |
| Nominal Size | DN25 – DN600 |
| Pressure Rating | PN10 – PN40 |
| ANSI Class | Class 150 – Class 300 |
| Body Material | Cast Steel, Ductile Iron, Stainless Steel, Alloy Steel |
| Disc Material | Stainless Steel, Bronze |
| Seat Material | Soft Seat (PTFE), Metal Seat |
| Connection Type | Flanged, Threaded, Butt Weld |
| Operation | Automatic Lift Check |
| Temperature Range | -20°C to +150°C |
| Leakage Standard | API 598 / ISO 5208 |
| Design Standard | ASME B16.34, DIN, GB Standards |
| Applicable Media | Water, Steam, Oil, Industrial Liquids |
Medium and low pressure lift check valve
Prevents backflow, protects pumps and pipelines.
Ensures unidirectional flow in heating and cooling circuits.
Protects equipment from reverse flow in chemical, petrochemical, and manufacturing lines.
Used for condensate and steam protection in low/medium pressure networks.
Maintains integrity of sprinkler and hydrant systems.
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
