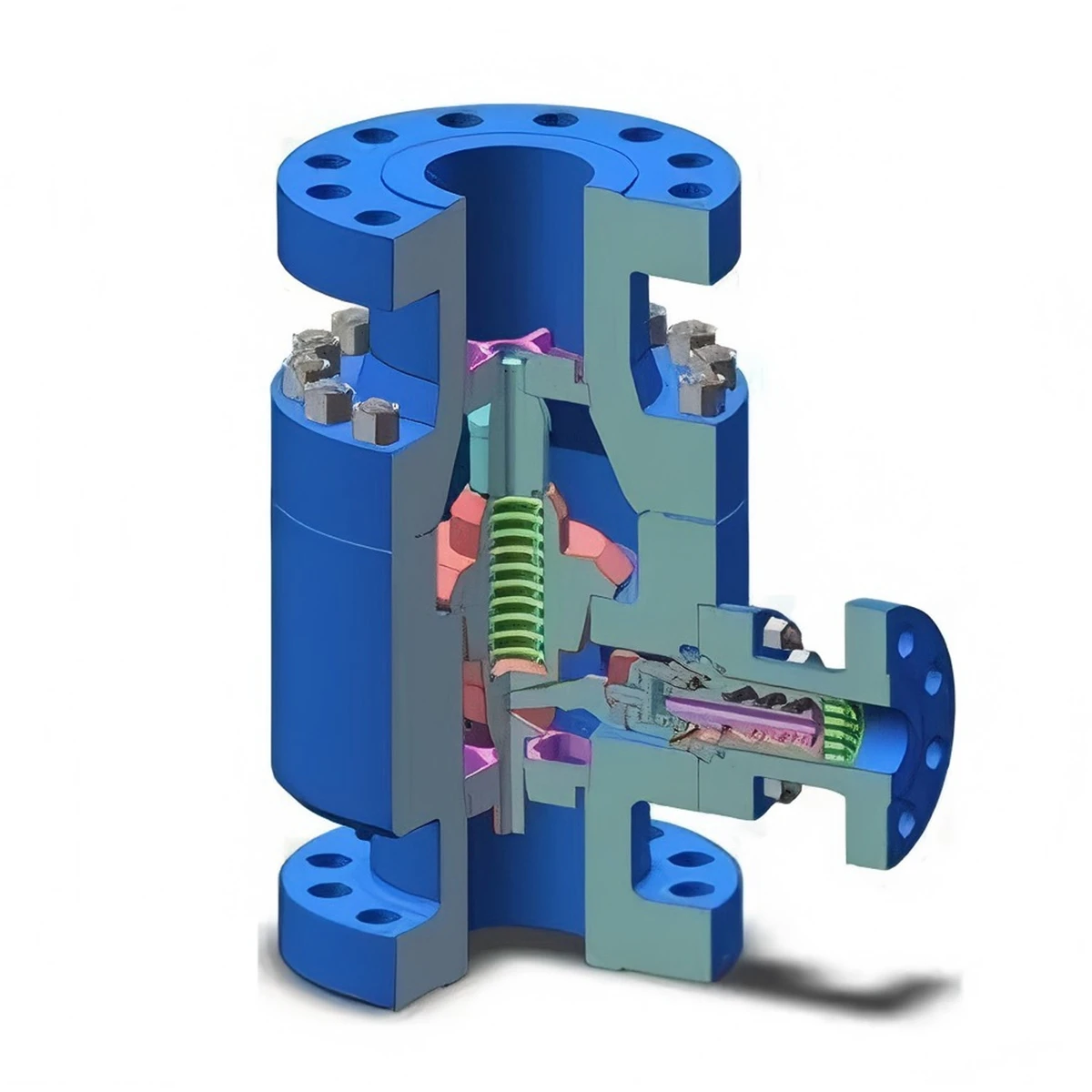

Minimum Flow Valve
Nominal Diameter: 2" ~ 24"
Nominal Pressure: 150 ~ 2500 lb
Mediums: Water, oil, gas, chemicals, steam
Temperature Range: ≤ 650°C
Minimum Flow Valve
The Minimum Flow Valve is designed to maintain a minimum flow rate in pipelines, protecting pumps and systems from damage caused by low-flow conditions. It ensures system stability, reduces vibration, and improves operational safety. The valve features robust forged steel construction, precise flow control, and long-term reliability.
OEM & Customization Capabilities:
Certifications:
Parameter Specifications
| Parameter | Specification / Range |
|---|---|
| Valve Type | Minimum Flow Valve |
| Material (Body/Bonnet/Disc) | Forged Steel (A105, F22, CF8, CF8M, etc.) |
| Size Range | 1/2" – 12" (DN15 – DN300) |
| Pressure Rating | Class 150 – Class 1500 (PN16 – PN250) |
| End Connection | Flanged, Butt Welded, Threaded |
| Working Temperature | -29°C to 550°C (depending on material) |
| Seal Type | Metal-to-Metal / Soft Seal (PTFE, Graphite) |
| Operation Type | Automatic (spring-assisted, flow-controlled) |
| Minimum Flow Setting | Adjustable based on system requirements |
| Testing | API 598 / ISO 5208 |
Industry Applications
Minimum Flow Valves are commonly used in industries where pump protection and consistent flow are critical:
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
