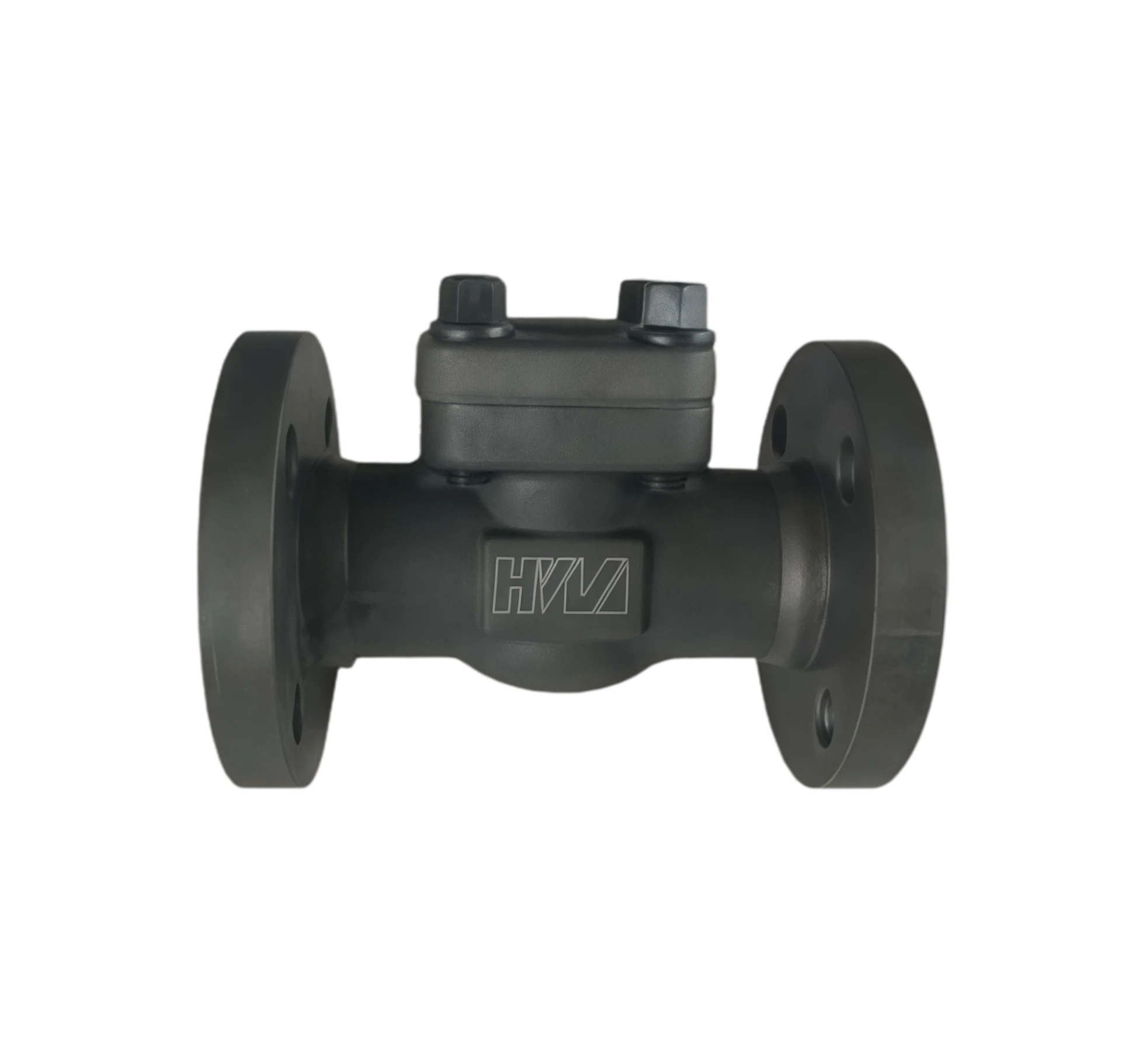

Swing check valve
The Swing Check Valve features a hinged disc that swings open under forward flow and closes automatically when flow reverses. Its streamlined flow path minimizes pressure loss while providing dependable backflow prevention, equipment protection, and long-term operational reliability for water, oil, gas, steam, and chemical applications.

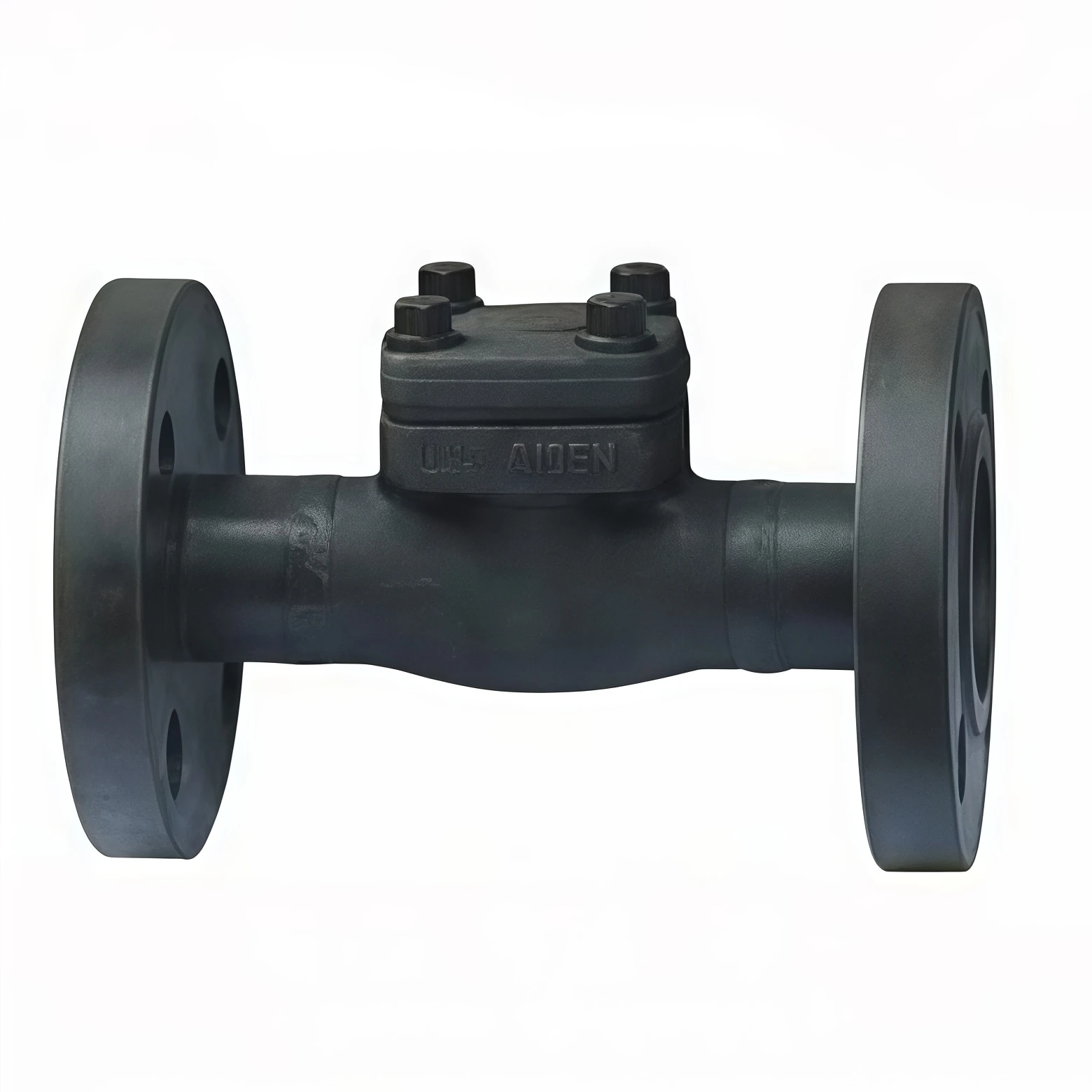

Swing check valve
The Swing Check Valve is one of the most widely used non-return valves in industrial piping systems. Designed with a pivoting disc mechanism, the valve opens automatically when fluid flows in the intended direction and closes instantly when reverse flow occurs.
Its simple yet durable construction offers excellent sealing performance, low flow resistance, and minimal maintenance requirements. Suitable for horizontal and vertical installations (with upward flow), the valve is extensively used in water treatment, oil & gas, petrochemical, power generation, HVAC, and industrial processing systems.
As a professional industrial valve manufacturer, we provide comprehensive OEM and ODM services for customers worldwide.
Our Swing Check Valves are manufactured under strict quality management systems and comply with international standards:
Swing check valve
| Parameter | Specification |
|---|---|
| Product Name | Swing Check Valve |
| Valve Type | Swing Type Non-Return Valve |
| Size Range | DN50 – DN2000 |
| Pressure Rating | PN10 – PN100 / Class 150–900 |
| Body Material | Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel |
| Disc Material | Stainless Steel, Alloy Steel |
| Seat Material | Metal Seat, PTFE, EPDM, NBR |
| Connection Type | Flanged, Wafer, Lug, Welded |
| Operating Temperature | -29°C to +550°C |
| Applicable Medium | Water, Oil, Gas, Steam, Chemicals |
| Flow Direction | One Direction Only |
| Leakage Class | ANSI/FCI 70-2 Class VI |
| Design Standard | API 594, API 6D, DIN, ANSI |
| Installation Position | Horizontal or Vertical (Upward Flow) |
| Surface Treatment | Epoxy Coating, Painting, Polishing |
Swing check valve
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
