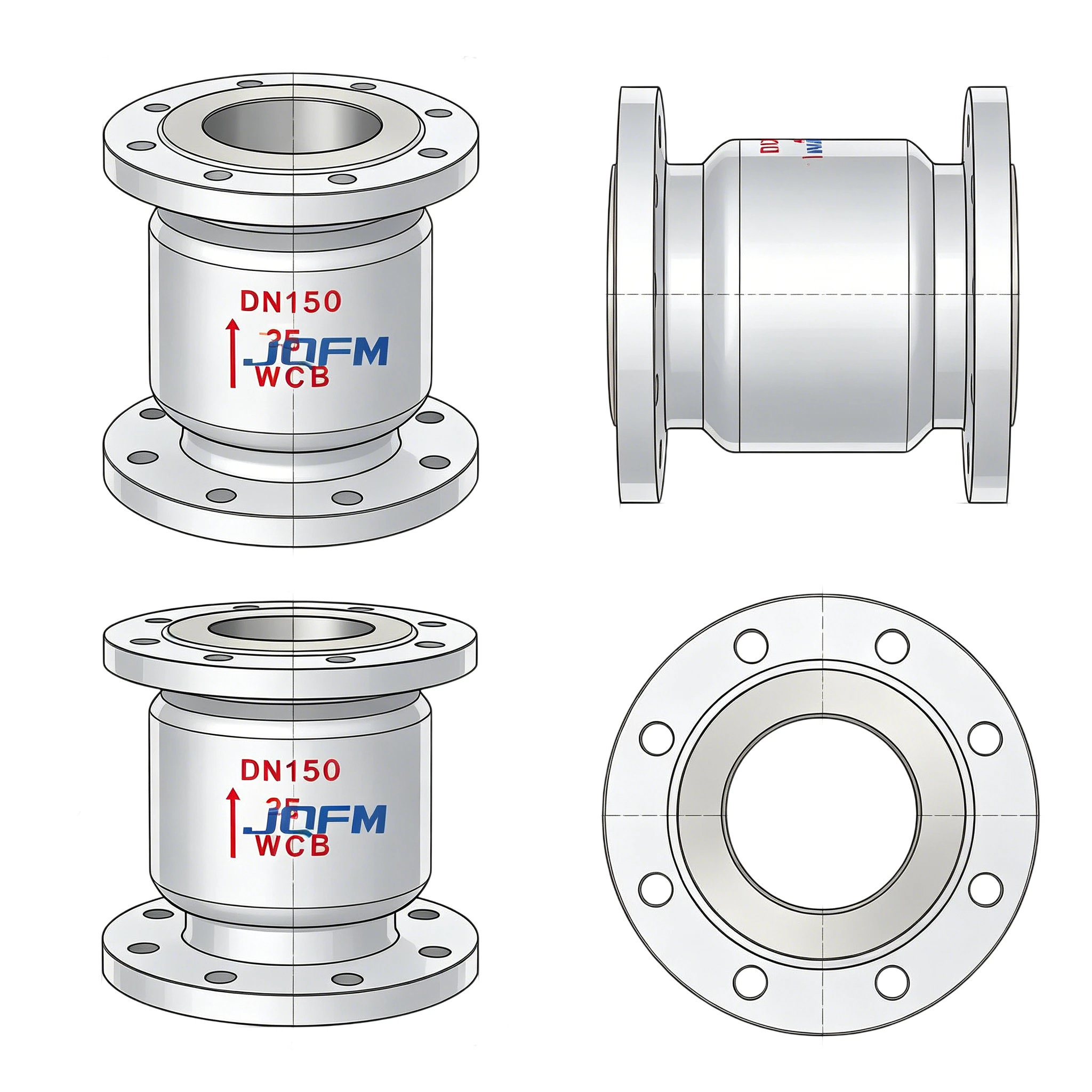

Vertical check valve
The Vertical Check Valve is specifically designed for installation in vertical pipelines where fluid flows upward. Utilizing gravity and fluid pressure for automatic operation, it effectively prevents backflow, protects pumps and equipment, and minimizes water hammer effects. Its compact design and durable construction ensure reliable performance in industrial and municipal applications.
Vertical check valve
The Vertical Check Valve is an automatic non-return valve engineered for vertical piping systems. The valve disc lifts when fluid flows upward and automatically closes when flow stops or reverses, preventing backflow and safeguarding pumps, compressors, and other critical equipment.
Manufactured from high-quality cast steel, stainless steel, carbon steel, or ductile iron, the valve provides excellent corrosion resistance, pressure resistance, and sealing performance. Its compact design allows easy installation in limited spaces while ensuring efficient fluid flow and minimal pressure drop.
Our Vertical Check Valves are manufactured and tested according to international standards:
Vertical check valve
| Parameter | Specification |
|---|---|
| Product Name | Vertical Check Valve |
| Valve Type | Lift Type Vertical Check Valve |
| Nominal Size | DN15 – DN600 |
| Pressure Rating | PN10 – PN250 |
| ANSI Class | Class 150 – Class 1500 |
| Body Material | Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel, Alloy Steel |
| Disc Material | Stainless Steel, Bronze, Hard-Faced Alloy |
| Seat Material | Metal Seat, PTFE, RPTFE, EPDM |
| Connection Type | Flanged, Threaded, Socket Weld, Butt Weld |
| Installation | Vertical Pipeline (Upward Flow) |
| Temperature Range | -29°C to +425°C |
| Leakage Standard | API 598 / ISO 5208 |
| Design Standard | ASME B16.34, API, DIN, GB |
| Applicable Media | Water, Steam, Oil, Gas, Chemical Fluids |
Vertical check valve
Prevents reverse flow in municipal water distribution and pumping stations.
Protects fire pumps and maintains directional flow in sprinkler networks.
Used in vertical process pipelines to prevent backflow and equipment damage.
Installed in boiler feedwater systems, condensate lines, and auxiliary pipelines.
Maintains one-way flow in chilled water and heating circulation systems.
Suitable for corrosive and industrial process fluids requiring reliable backflow protection.
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
