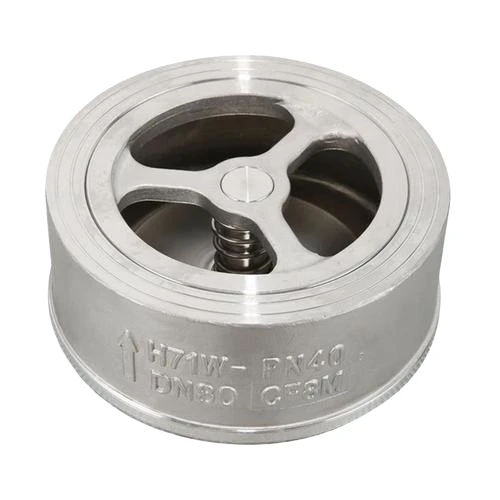

Wafer check valve
The Wafer Check Valve is designed for use in pipeline systems where space is limited. Its compact wafer-style body fits between flanges, offering fast response to flow reversal. The valve prevents backflow, reduces water hammer, and ensures operational reliability in water, oil, gas, and industrial fluid applications.

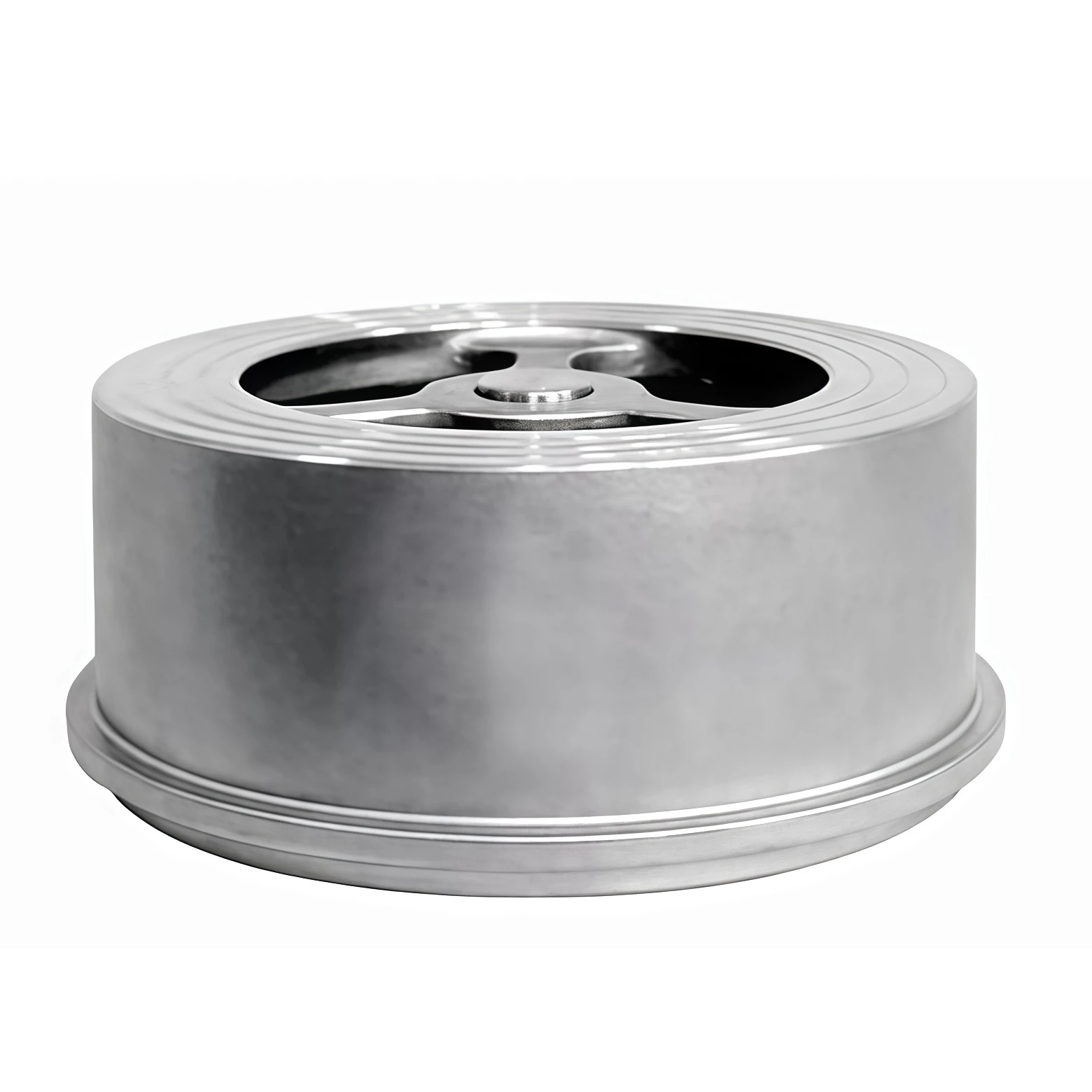

Wafer check valve
Wafer Check Valves are engineered for compact installation and efficient backflow prevention. Featuring a lightweight wafer design, the valve fits directly between flanges, reducing installation space and weight compared to traditional swing check valves. The valve disc responds quickly to flow reversal, minimizing pressure surges and protecting pumps, compressors, and pipeline equipment.
Constructed from durable materials including carbon steel, stainless steel, and alloy steel, the valve can handle a variety of media under moderate to high pressure. Suitable for horizontal and vertical installations, wafer check valves are ideal for water treatment, petrochemical, power generation, and general industrial applications.
Wafer Check Valves are manufactured and tested according to international standards:
Wafer check valve
| Parameter | Specification |
|---|---|
| Product Name | Wafer Check Valve |
| Nominal Size | DN15 – DN800 |
| Pressure Rating | PN10 – PN40 |
| ANSI Class | Class 150 – Class 300 |
| Body Material | Carbon Steel, Stainless Steel, Alloy Steel |
| Disc Material | Stainless Steel, Alloy Steel, PTFE Lined |
| Seat Material | Metal-to-Metal / PTFE |
| Connection Type | Wafer / Lug Type |
| Installation | Horizontal or Vertical |
| Temperature Range | -20°C to +250°C |
| Leakage Standard | API 598 / ISO 5208 |
| Design Standard | ASME B16.34, API 594 |
| Applicable Media | Water, Oil, Gas, Steam, Chemical Fluids |
Wafer check valve
Prevents backflow in water pipelines, pumps, and treatment systems.
Protects compressors, pumps, and pipelines from reverse flow.
Ensures reliable operation in boiler feedwater, cooling, and steam pipelines.
Handles various industrial fluids, preventing contamination and backflow.
Used in HVAC, process pipelines, and liquid transfer systems.
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
