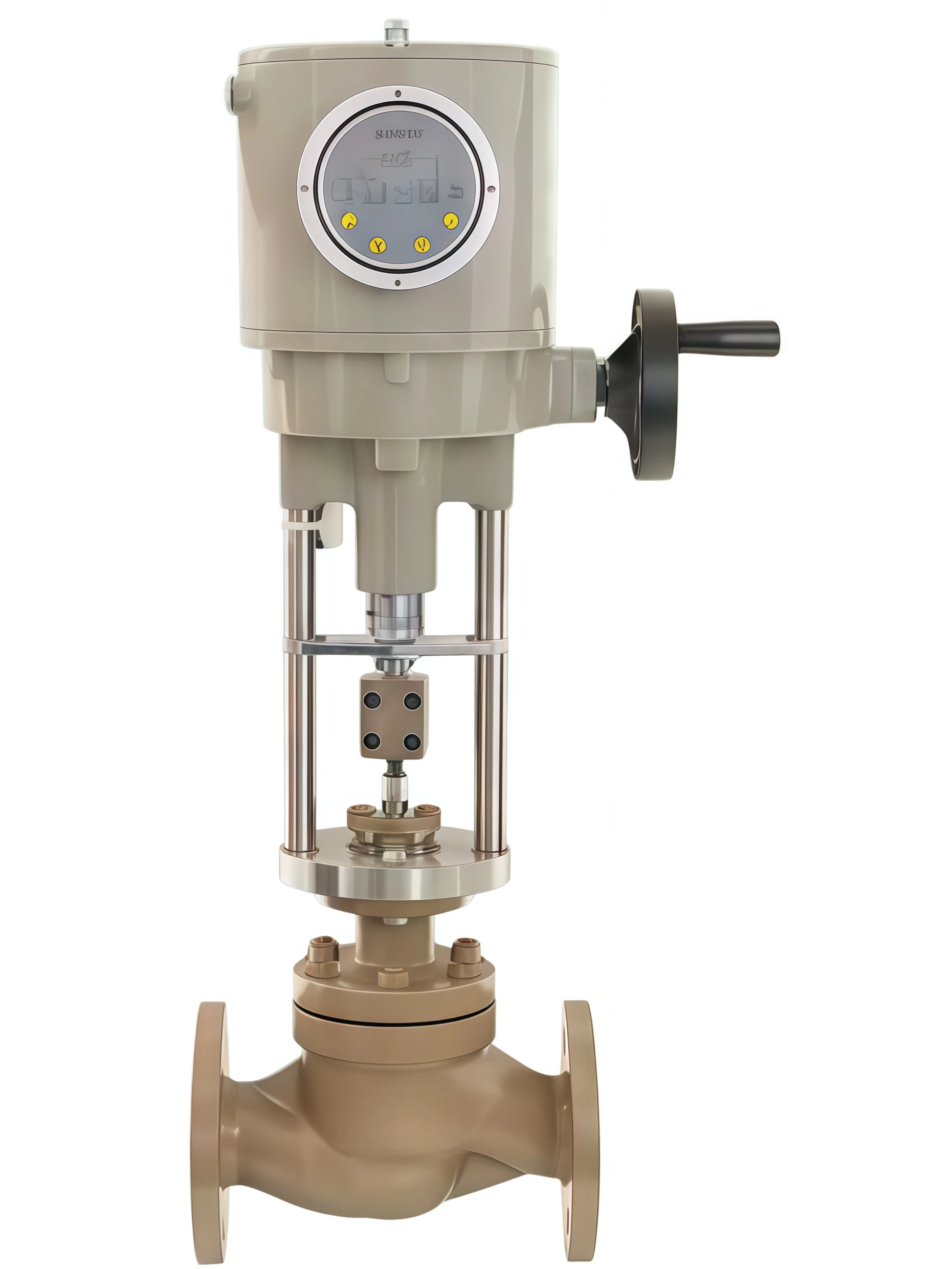

Electric regulating valve valve
The Electric Regulating Valve is a high-performance automatic control valve designed for accurate regulation of flow, pressure, temperature, and other process parameters in industrial pipeline systems. Equipped with an electric actuator, the valve provides precise positioning, stable operation, and convenient remote control without the need for compressed air sources.
The valve adopts advanced control technology, optimized flow channel design, and high-quality sealing structures to ensure excellent regulation accuracy, low operating torque, and long service life. It can be integrated with PLC, DCS, SCADA, and other intelligent automation systems to achieve efficient and reliable process control.
The Electric Regulating Valve is suitable for controlling water, steam, gas, oil, and chemical media, and is widely applied in industries requiring high-precision adjustment, energy-saving operation, and automated management.

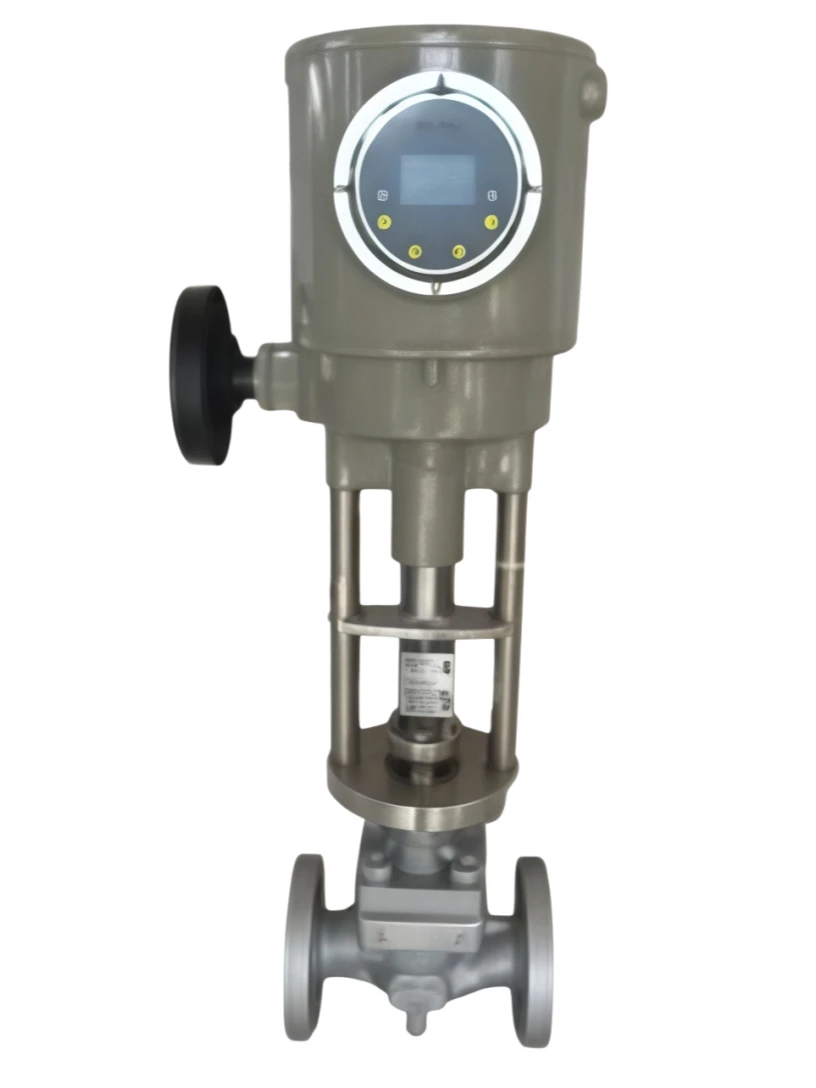

Electric regulating valve
We provide professional OEM manufacturing and customized electric regulating valve solutions according to different project requirements, including:
Our Electric Regulating Valves are manufactured under strict quality management systems and comply with international valve industry standards. Available certifications include:
We provide reliable electric valve solutions with advanced manufacturing technology, strict quality inspection, and flexible OEM customization capabilities for global customers.
Parameter Specifications
| Parameter | Specification |
|---|---|
| Product Name | Electric Regulating Valve |
| Valve Type | Electric Automatic Control Valve |
| Valve Structure | Globe Type / Angle Type / Three-Way Type (Optional) |
| Actuator Type | Electric Actuator / Intelligent Electric Actuator |
| Control Mode | Modulating Control / On-Off Control |
| Nominal Size | DN15 ~ DN500 (Customized Available) |
| Pressure Rating | PN10 ~ PN420 / Class 150 ~ Class 2500 |
| Body Material | Cast Iron, Carbon Steel, Stainless Steel, Alloy Steel |
| Trim Material | Stainless Steel, Hardened Alloy, Special Alloy Materials |
| Connection Type | Flanged, Threaded, Butt Welded, Customized |
| Applicable Medium | Water, Steam, Gas, Oil, Chemical Fluids |
| Working Temperature | -40℃ ~ 450℃ (Customized Available) |
| Power Supply | AC220V / AC380V / DC24V Optional |
| Control Signal | 4-20mA, 0-10V, RS485, Modbus, Fieldbus |
| Flow Characteristic | Linear / Equal Percentage / Quick Opening |
| Control Accuracy | ±1% (Depending on Actuator Configuration) |
| Leakage Class | ANSI Class II / III / IV / V / VI |
| Actuator Protection Class | IP65 / IP67 / IP68 Optional |
| Operation Mode | Electric Open / Electric Close / Fail-Safe Control |
| Position Feedback | Optional |
| Manual Operation | Manual Override Available |
| Explosion Protection | Explosion-Proof Electric Actuator Optional |
| Anti-Cavitation Design | Multi-Stage Pressure Reduction Trim Available |
| Noise Reduction | Low Noise Trim Design Optional |
| Applicable Standards | IEC 60534, ANSI, API, DIN, GB Standards |
| Inspection Standard | Pressure Test, Leakage Test, Performance Test |
Industry Applications
The Electric Regulating Valve is widely used in industries requiring precise automatic control and reliable process regulation.
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
