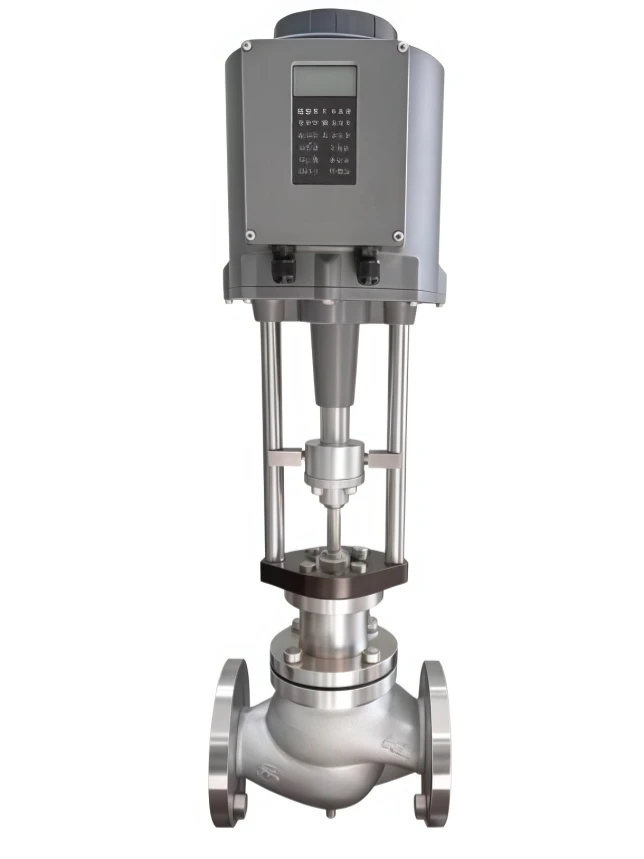

Electric regulating valve
The Electric Regulating Valve is an advanced automatic control valve designed for precise adjustment of flow, pressure, temperature, and process parameters in industrial pipeline systems. Equipped with a high-performance electric actuator, the valve provides accurate positioning, stable operation, and convenient remote control capabilities.
The valve adopts an optimized flow channel design and reliable sealing structure, offering excellent regulation accuracy, low operating torque, and long service life. It can be integrated with industrial automation systems such as PLC, DCS, and intelligent control platforms to achieve fully automatic process management.
The Electric Regulating Valve is suitable for controlling water, steam, gas, oil, and chemical fluids, and is widely used in industries requiring high-precision flow regulation, energy efficiency, and intelligent operation.
Electric regulating valve
We provide professional OEM manufacturing and customized electric regulating valve solutions according to different customer requirements, including:
Our Electric Regulating Valves are manufactured under strict quality management systems and comply with international valve industry standards. Available certifications include:
We provide reliable electric valve solutions with advanced manufacturing technology, strict quality inspection, and flexible OEM customization capabilities.
Parameter Specifications
| Parameter | Specification |
|---|---|
| Product Name | Electric Regulating Valve |
| Valve Type | Electric Automatic Control Valve |
| Valve Structure | Globe Type / Angle Type / Three-Way Type (Optional) |
| Actuator Type | Electric Actuator / Intelligent Electric Actuator |
| Control Mode | Modulating Control / On-Off Control |
| Nominal Size | DN15 ~ DN500 (Customized Available) |
| Pressure Rating | PN10 ~ PN420 / Class 150 ~ Class 2500 |
| Body Material | Cast Iron, Carbon Steel, Stainless Steel, Alloy Steel |
| Trim Material | Stainless Steel, Hardened Alloy, Special Alloy Materials |
| Connection Type | Flanged, Threaded, Butt Welded, Customized |
| Applicable Medium | Water, Steam, Gas, Oil, Chemical Fluids |
| Working Temperature | -40℃ ~ 450℃ (Customized Available) |
| Power Supply | AC220V / AC380V / DC24V Optional |
| Control Signal | 4-20mA, 0-10V, RS485, Modbus |
| Flow Characteristic | Linear / Equal Percentage / Quick Opening |
| Control Accuracy | ±1% (Depending on Actuator Configuration) |
| Leakage Class | ANSI Class II / III / IV / V / VI |
| Actuator Protection Class | IP65 / IP67 / IP68 Optional |
| Valve Action Mode | Electric Open / Electric Close / Fail-Safe Design |
| Position Feedback | Optional |
| Manual Operation | Manual Override Available |
| Explosion Protection | Explosion-Proof Electric Actuator Optional |
| Anti-Cavitation Design | Multi-Stage Trim Available |
| Noise Reduction | Low Noise Design Optional |
| Applicable Standards | IEC 60534, ANSI, API, DIN, GB Standards |
| Inspection Standard | Pressure Test, Leakage Test, Performance Test |
Industry Applications
The Electric Regulating Valve is widely used in industries requiring accurate automatic control and intelligent process regulation.
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
