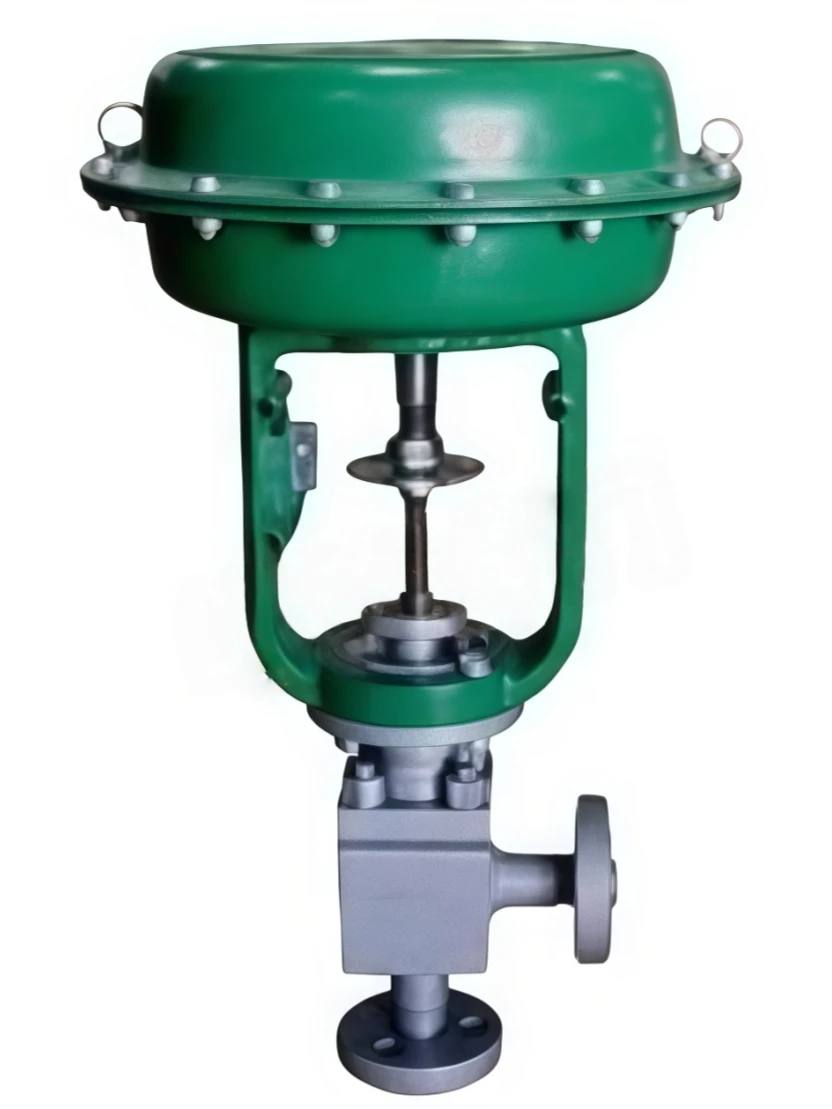

High pressure angle regulating valve
The High Pressure Angle Regulating Valve is a high-performance control valve specially designed for regulating high-pressure fluids in demanding industrial environments. Featuring an angle-type body structure, this valve provides excellent flow control performance, reduced pressure loss, and enhanced resistance against cavitation, flashing, and erosion.
The valve adopts a robust design with optimized internal flow channels, precision-guided valve trim, and high-strength materials, ensuring stable operation under high differential pressure conditions. It is widely used for accurate pressure, flow, and temperature regulation in high-pressure steam, gas, liquid, and chemical process systems.
With excellent sealing performance, fast response capability, and long service life, the High Pressure Angle Regulating Valve is an ideal solution for applications requiring reliable control under severe operating conditions.
High pressure angle regulating valve
We provide comprehensive OEM manufacturing and customized valve solutions according to customer requirements, including:
Our valves are manufactured under strict quality management systems and comply with international valve industry standards. Available certifications include:
We are committed to delivering high-quality regulating valves with reliable performance, competitive pricing, and professional technical support for global customers.
Parameter Specifications
| Parameter | Specification |
|---|---|
| Product Name | High Pressure Angle Regulating Valve |
| Valve Type | Angle Type Control Valve |
| Nominal Size | DN15 ~ DN500 (Customized Available) |
| Pressure Rating | PN16 ~ PN420 / Class 150 ~ Class 2500 |
| Body Material | Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel, Customized Materials |
| Trim Material | Stainless Steel, Hardened Alloy, Tungsten Carbide Coating (Optional) |
| Connection Type | Flanged, Butt Welded, Threaded, Customized |
| Actuator Type | Pneumatic Actuator / Electric Actuator / Hydraulic Actuator |
| Control Signal | 4-20mA, 0-10V, Digital Communication |
| Flow Characteristic | Linear / Equal Percentage / Quick Opening |
| Applicable Medium | Steam, Gas, Water, Oil, Chemical Fluids, High Pressure Process Media |
| Working Temperature | -196℃ ~ 600℃ (Customized Available) |
| Maximum Pressure Difference | Up to High Differential Pressure Applications |
| Leakage Class | ANSI Class IV / V / VI |
| Sealing Type | Metal Seal / Soft Seal |
| Control Accuracy | ±1% (Depending on Actuator and Positioner Configuration) |
| Positioner | Smart Valve Positioner Optional |
| Anti-Cavitation Design | Multi-stage Pressure Reduction Trim Available |
| Explosion Protection | Optional Explosion-proof Actuator |
| Application Standard | IEC 60534, ANSI, API, DIN, GB Standards |
| Inspection Standard | Pressure Test, Leakage Test, Performance Test |
Industry Applications
The High Pressure Angle Regulating Valve is widely used in industries requiring precise control under high-pressure and harsh operating conditions:
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
