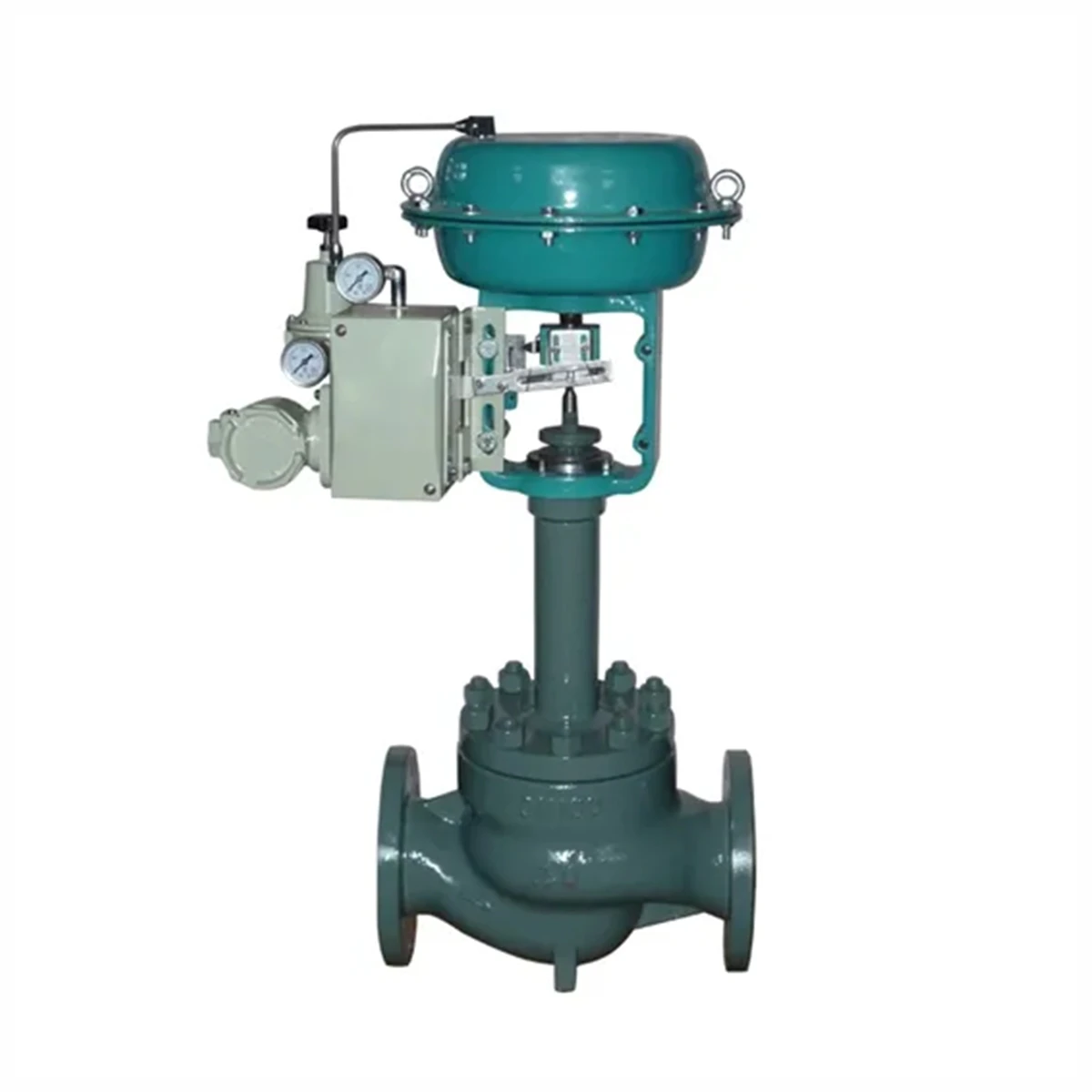

Pneumatic Sleeve Regulating Valve
Nominal Diameter: DN 50 ~ 800 mm
Nominal Pressure: PN 2.5 ~ 25.0 MPa
Applicable Mediums: Water, steam, oil products
Applicable Temperature: ≤ 650°C
Pneumatic Sleeve Regulating Valve
The Pneumatic Sleeve Regulating Valve is a high-performance control valve designed for precise flow, pressure, temperature, and liquid level regulation in industrial process systems. It adopts a sleeve-guided structure, providing excellent stability, high control accuracy, low vibration, and extended service life under demanding operating conditions.
The valve is actuated by a pneumatic diaphragm or piston actuator and can be equipped with valve positioners, limit switches, solenoid valves, and other intelligent accessories to achieve automated process control. It is widely used in industries such as petrochemical, chemical processing, power generation, oil & gas, water treatment, metallurgy, and pharmaceuticals.
As a professional valve manufacturer, we provide comprehensive OEM and ODM services to meet diverse customer requirements.
OEM Service Scope
Customization Capabilities
Our manufacturing and quality management systems comply with international standards and industry requirements.
Parameter Specifications
| Item | Specification |
|---|---|
| Product Name | Pneumatic Sleeve Regulating Valve |
| Valve Type | Sleeve Guided Control Valve |
| Nominal Size | DN20–DN500 (3/4"–20") |
| Pressure Rating | PN16–PN420 / ANSI Class 150–2500 |
| Body Material | WCB, WC6, WC9, CF8, CF8M, Duplex SS, Alloy Steel |
| Trim Material | Stainless Steel, Stellite Overlay, Special Alloys |
| Flow Characteristic | Linear, Equal Percentage, Quick Opening |
| Leakage Class | ANSI/FCI 70-2 Class IV, V, VI |
| Connection Type | Flanged, Welded, Threaded |
| Flange Standard | ANSI, DIN, JIS, GB |
| Actuator Type | Pneumatic Diaphragm / Pneumatic Piston |
| Air Supply Pressure | 0.14–0.7 MPa |
| Control Signal | 4–20mA, HART, Fieldbus |
| Operating Temperature | -196°C to +560°C |
| Ambient Temperature | -40°C to +80°C |
| Rangeability | Up to 50:1 |
| Positioning Accuracy | ±1% |
| Protection Grade | IP65 / IP67 |
| Explosion Protection | Ex d, Ex ia (Optional) |
| Accessories | Positioner, Solenoid Valve, Limit Switch, Air Filter Regulator |
| Applicable Media | Steam, Gas, Oil, Water, Chemical Fluids |
| Design Standard | IEC, ANSI, API, DIN, GB |
| Testing Standard | API 598, IEC 60534 |
Industry Applications
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
