Single-Seat Pneumatic Control Valve

Single-Seat Pneumatic Control Valve Parameter Specifications Industry Applications

Single-Seat Pneumatic Control Valve

Product Overview

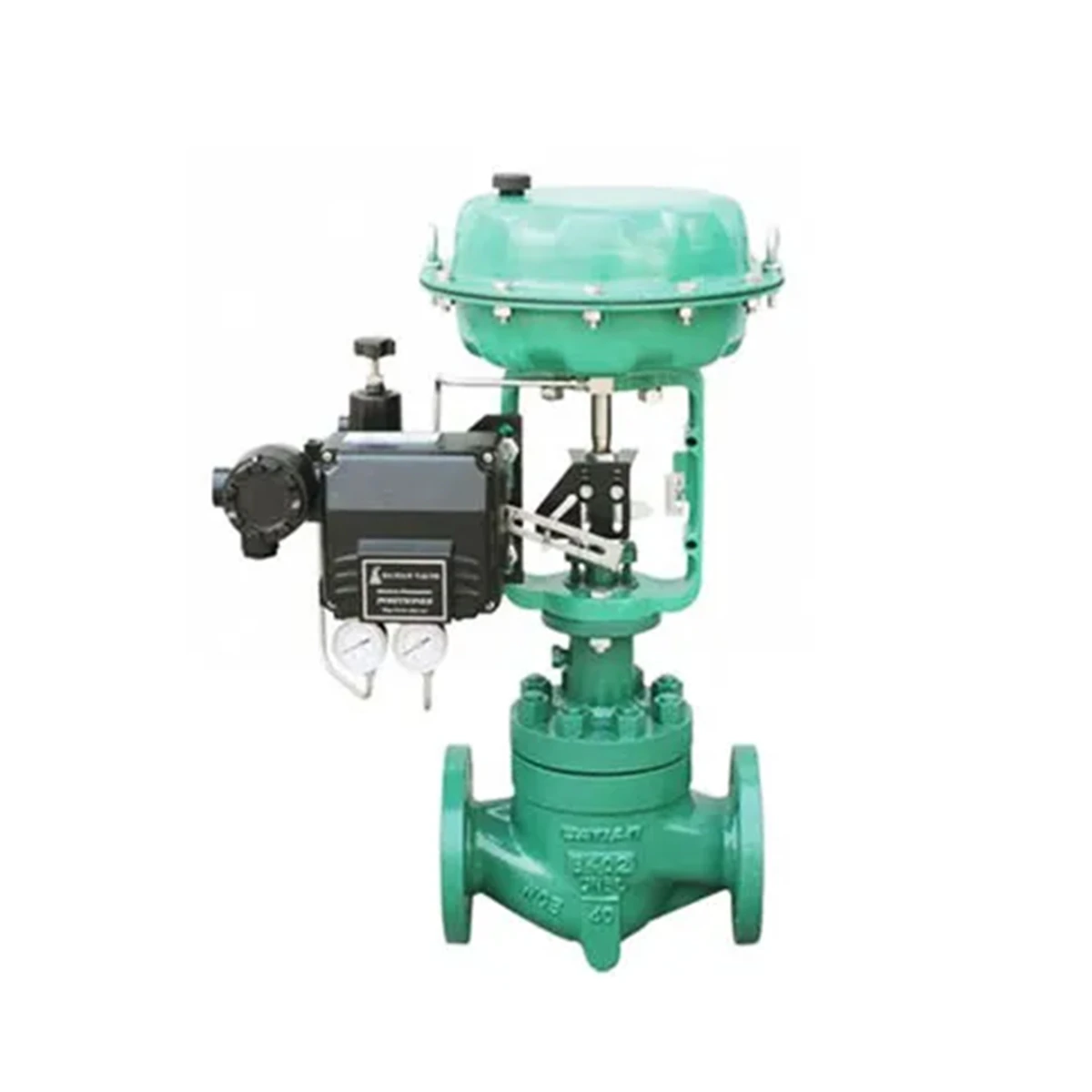

The Single-Seat Pneumatic Control Valve is a high-performance valve designed for precise flow, pressure, and temperature control in industrial processes. Featuring a single-seat design, it provides excellent throttling characteristics, low leakage, and stable control over a wide range of operating conditions. The valve is pneumatically actuated, allowing fast response, reliable modulation, and integration with automated process control systems such as PLC or DCS.

The valve is suitable for use with steam, gas, liquids, and corrosive media in power plants, petrochemical facilities, chemical plants, HVAC systems, and other industrial applications requiring accurate process control.

OEM & Customization Capabilities

Custom valve sizes, flow coefficients (Cv), and pressure ratings
Body materials: carbon steel, stainless steel, alloy steel, duplex steel, or special alloys
Trim customization: stainless steel, hardened alloys, or anti-corrosion coatings
Pneumatic actuator options: single-acting, double-acting, spring-return
Positioners and accessories: smart digital positioners, analog/electric feedback, explosion-proof options
High-temperature and cryogenic service configurations
Customized flange standards (ANSI, DIN, EN, JIS, GB)
Optional bellows seal for zero leakage in critical applications
Custom logo, nameplate, and packaging options
Adaptable for hazardous, corrosive, or abrasive media
SIL-certified designs for safety-critical systems

Certifications

ISO 9001 Quality Management System
ISO 5211 Actuator Mounting Standard
API 598 Valve Inspection and Testing
CE / PED Certification
ISO 15848 Fugitive Emission Certification
NACE MR0175 / MR0103 Compliance (Optional)
SIL Functional Safety Certification (Optional)
ATEX / IECEx Explosion-Proof Certification (Optional)

Parameter Specifications

Parameter	Specification / Range
Valve Type	Single-Seat Pneumatic Control Valve
Body Material	Carbon Steel, Stainless Steel, Alloy Steel, Duplex SS
Trim Material	Stainless Steel, Hard Alloy, Anti-Corrosion Coating
Size Range	DN15 – DN500 (NPS 1/2" – 20")
Pressure Rating	PN16 – PN420 / Class 150 – Class 2500
End Connection	Flanged, Butt Weld, Threaded
Actuation	Pneumatic Actuator (Single-Acting / Double-Acting)
Positioner	Analog / Digital / Smart / Explosion-Proof
Operating Temperature	-196°C to +550°C (depending on materials)
Leakage Class	Class IV – Class V (ANSI/FCI 70-2)
Flow Control	Linear, Equal Percentage, Quick Opening
Operation	Pneumatic / Remote Control
Testing Standard	API 598, ISO 5208
Applicable Media	Steam, Water, Gas, Oil, Corrosive Fluids

Industry Applications

Power Generation

Boiler feedwater and steam control
Turbine inlet control
Superheater and reheater lines
Condensate and cooling water systems

Petrochemical & Chemical Industry

Reactor and distillation column control
Gas and liquid process pipelines
Corrosive chemical dosing and transfer
Utility process control systems

Oil & Gas Industry

Natural gas flow regulation
Crude oil and refined product lines
Pipeline pressure and flow control

HVAC & Building Services

Heating and cooling water control
Steam and chilled water distribution
Industrial air handling systems

Food & Beverage Industry

CIP (Clean-in-Place) process control
Flow regulation in liquid processing pipelines

Pharmaceutical Industry

Process fluid control in high-purity systems
Steam and solvent regulation

Key Advantages

Precise flow control with stable modulation
Low leakage with single-seat design
Fast and reliable pneumatic actuation
Easy integration with digital control systems
Durable construction for high-temperature and high-pressure service
Compatible with corrosive, abrasive, or hazardous media
SIL-certified designs for safety-critical processes
Flexible customization for OEM projects and industrial automation

CUSTOMIZED SERVICE Customized Product

Material customization plan

Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.

Structural optimization design

For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.

Interface standard adaptation

Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
