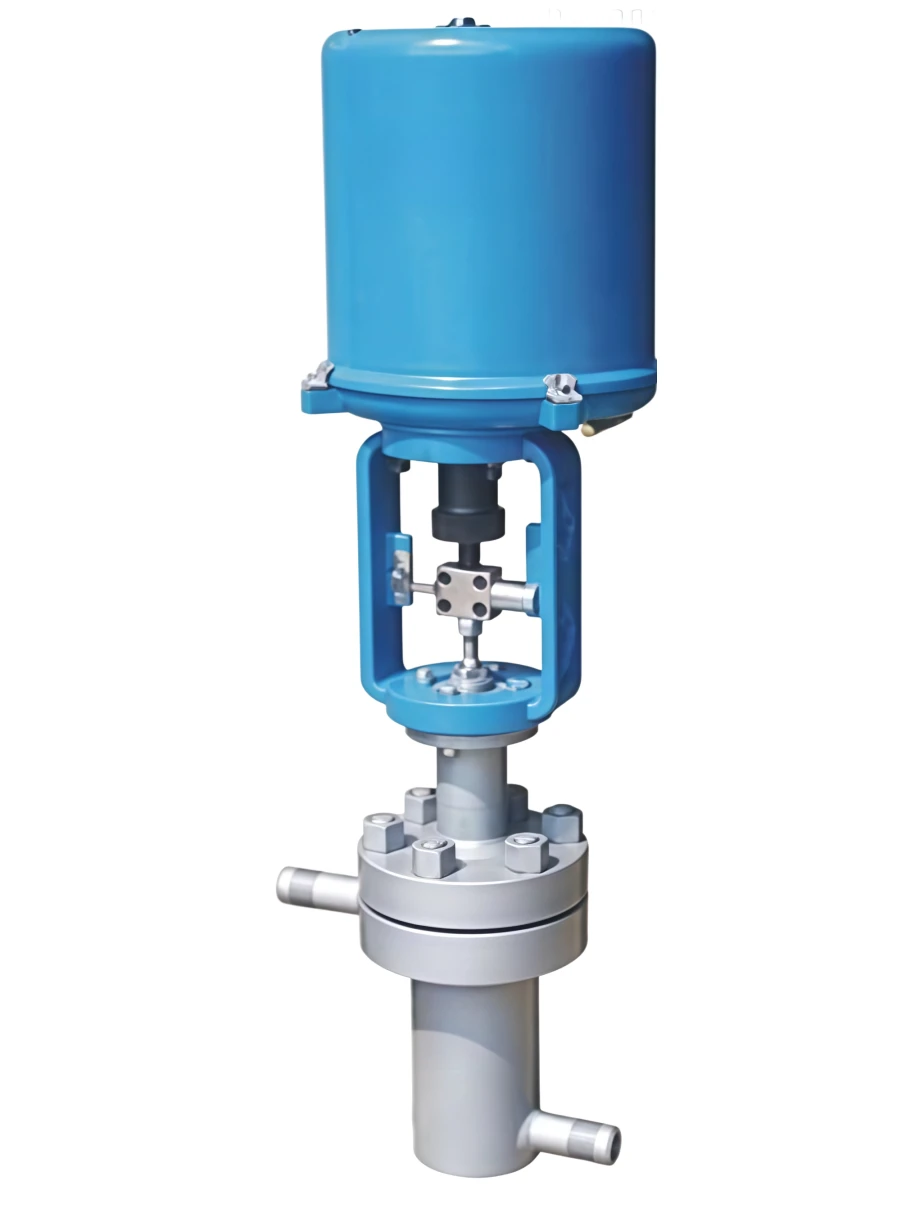

Water supply regulating valve
The Water Supply Regulating Valve is a high-efficiency automatic control valve specially designed for water distribution systems, industrial water supply networks, and hydraulic control applications. It accurately regulates water flow, pressure, and system balance to ensure stable and efficient operation.
The valve adopts an advanced regulating mechanism with reliable sealing performance, low flow resistance, and excellent pressure control capability. It can automatically adjust according to system requirements, helping prevent pressure fluctuations, water hammer effects, and pipeline damage.
Designed for long-term continuous operation, the Water Supply Regulating Valve features corrosion resistance, easy maintenance, and high durability. It is suitable for clean water, industrial water, cooling water, and other liquid control applications.
Water supply regulating valve
We provide professional OEM manufacturing and customized valve solutions according to customer project requirements, including:
Our valves are manufactured under strict quality management systems and meet international valve industry standards. Available certifications include:
We provide reliable water control valve solutions with professional engineering support, flexible customization capabilities, and consistent product quality.
Parameter Specifications
| Parameter | Specification |
|---|---|
| Product Name | Water Supply Regulating Valve |
| Valve Type | Hydraulic Control Valve / Automatic Regulating Valve |
| Application Medium | Water, Clean Water, Industrial Water, Cooling Water |
| Nominal Size | DN50 ~ DN1200 (Customized Available) |
| Pressure Rating | PN10 ~ PN40 / Class 150 ~ Class 300 |
| Body Material | Ductile Iron, Cast Steel, Stainless Steel, Carbon Steel |
| Valve Seat Material | Stainless Steel, EPDM, PTFE, Customized |
| Diaphragm Material | EPDM, NBR, PTFE (Optional) |
| Connection Type | Flanged, Grooved, Wafer, Customized |
| Control Method | Hydraulic Control / Electric Control / Pneumatic Control |
| Control Function | Pressure Regulation, Flow Regulation, Level Control |
| Working Temperature | -10℃ ~ 120℃ (Customized Available) |
| Flow Control Accuracy | ±5% (Depending on System Conditions) |
| Leakage Class | ANSI Class III / IV / VI |
| Operating Pressure | 0.05 ~ 2.5 MPa |
| Maximum Differential Pressure | Up to 2.5 MPa (Customized Higher Pressure Available) |
| Actuator Type | Diaphragm Type / Piston Type |
| Control Signal | Hydraulic Pressure / 4-20mA / Remote Signal |
| Anti-Corrosion Treatment | Epoxy Coating, FBE Coating, Special Coating |
| Maintenance | Online Maintenance Design Available |
| Installation Position | Horizontal Installation Recommended |
| Applicable Standards | ANSI, API, DIN, EN, GB Standards |
| Inspection Standard | Pressure Test, Leakage Test, Performance Test |
Industry Applications
The Water Supply Regulating Valve is widely used in various water management and industrial fluid control systems.
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
